Code 15 - Cts, High Temperature Indicated

Fig 1: Code 15, Schematic - CTS Indication High

G91B18524

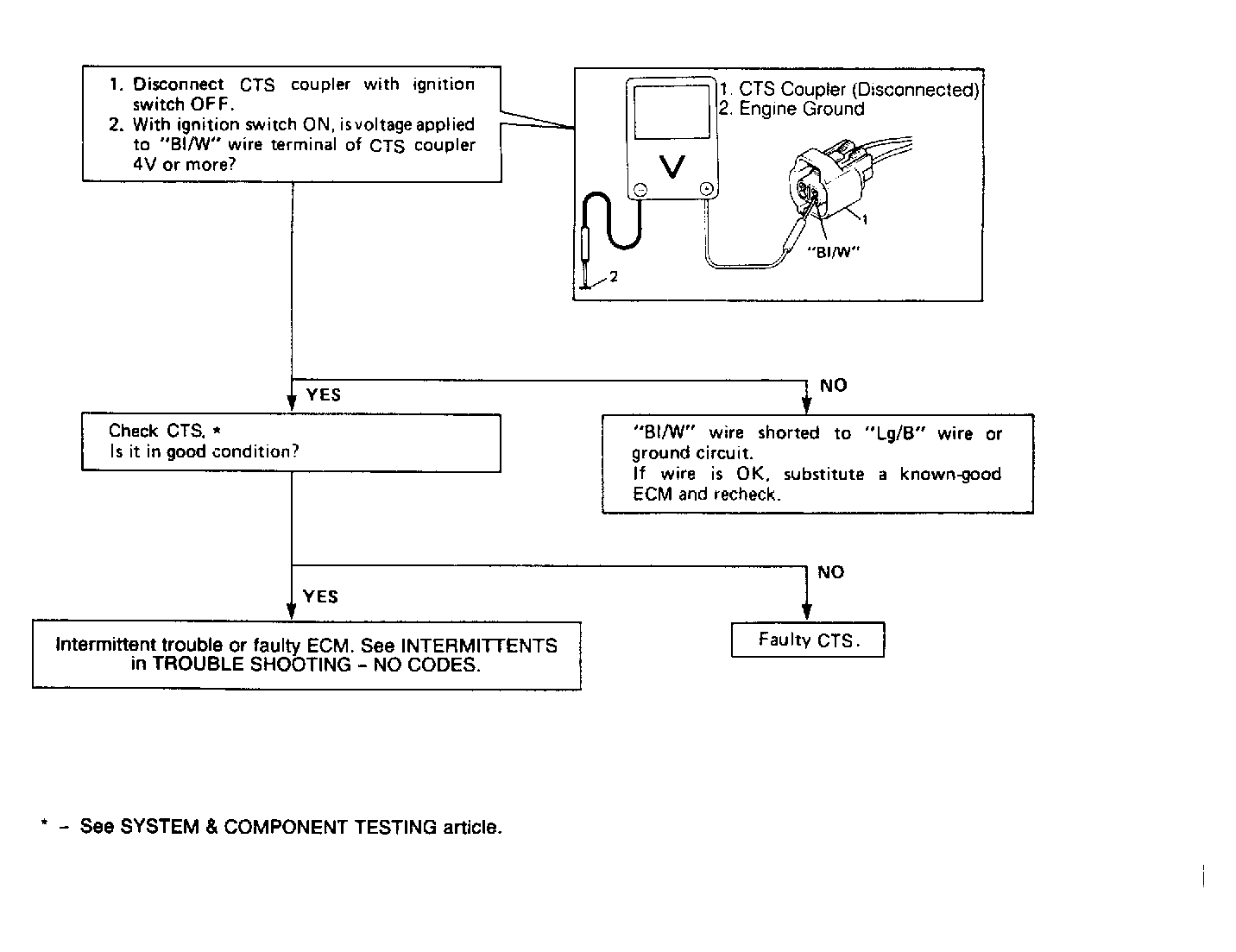

Fig 2: Code 15, Flow Chart - CTS Indication High

G91D18526
