Code 41 - No Ignition Signal

Fig 1: Code 41, Schematic - No Ignition Signal

G91F18536

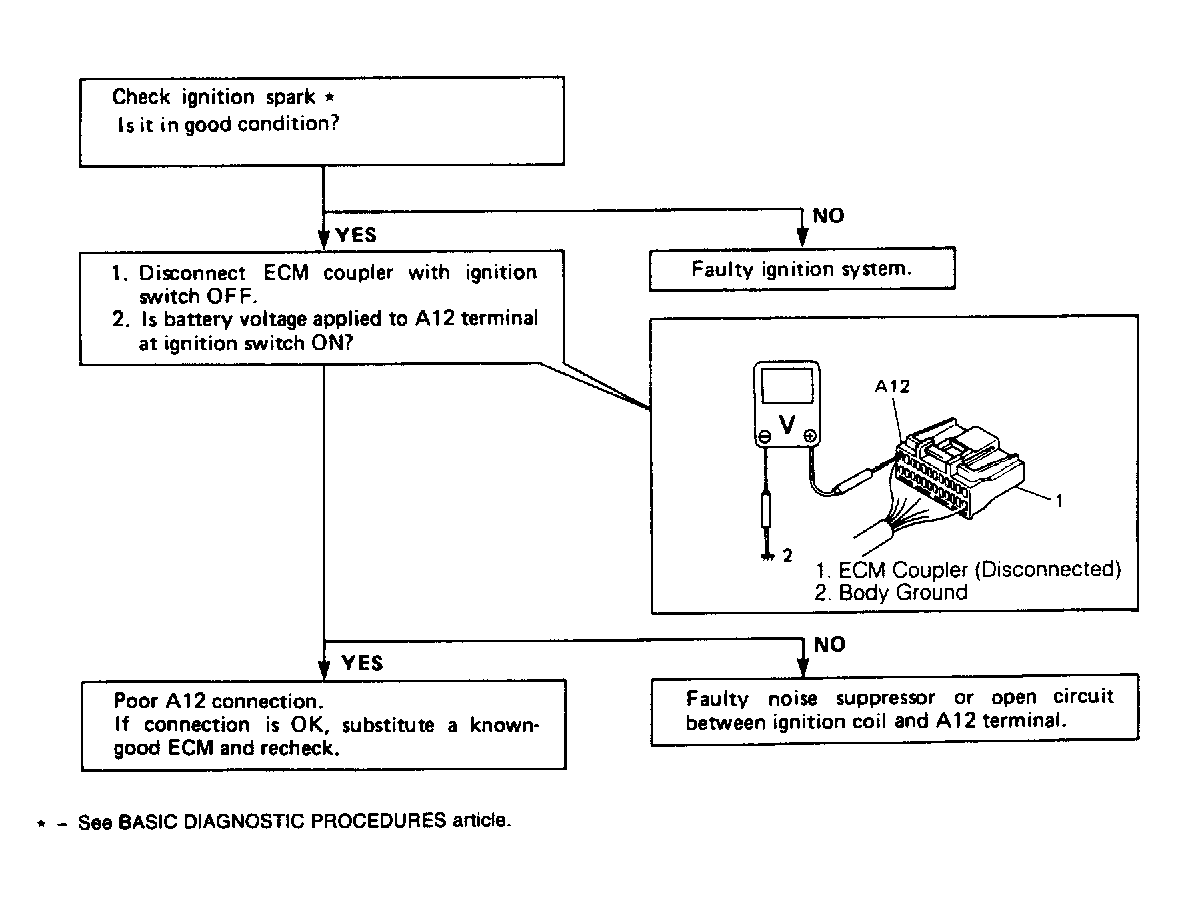

Fig 2: Code 41, Flow Chart - No Ignition Signal

G91G18537
