Code 14 - Water Temperature Sensor, Low Temperature Indicated

Fig 1: Code 14, Schematic - Water Temperature Sensor Indication Low

G92H25624

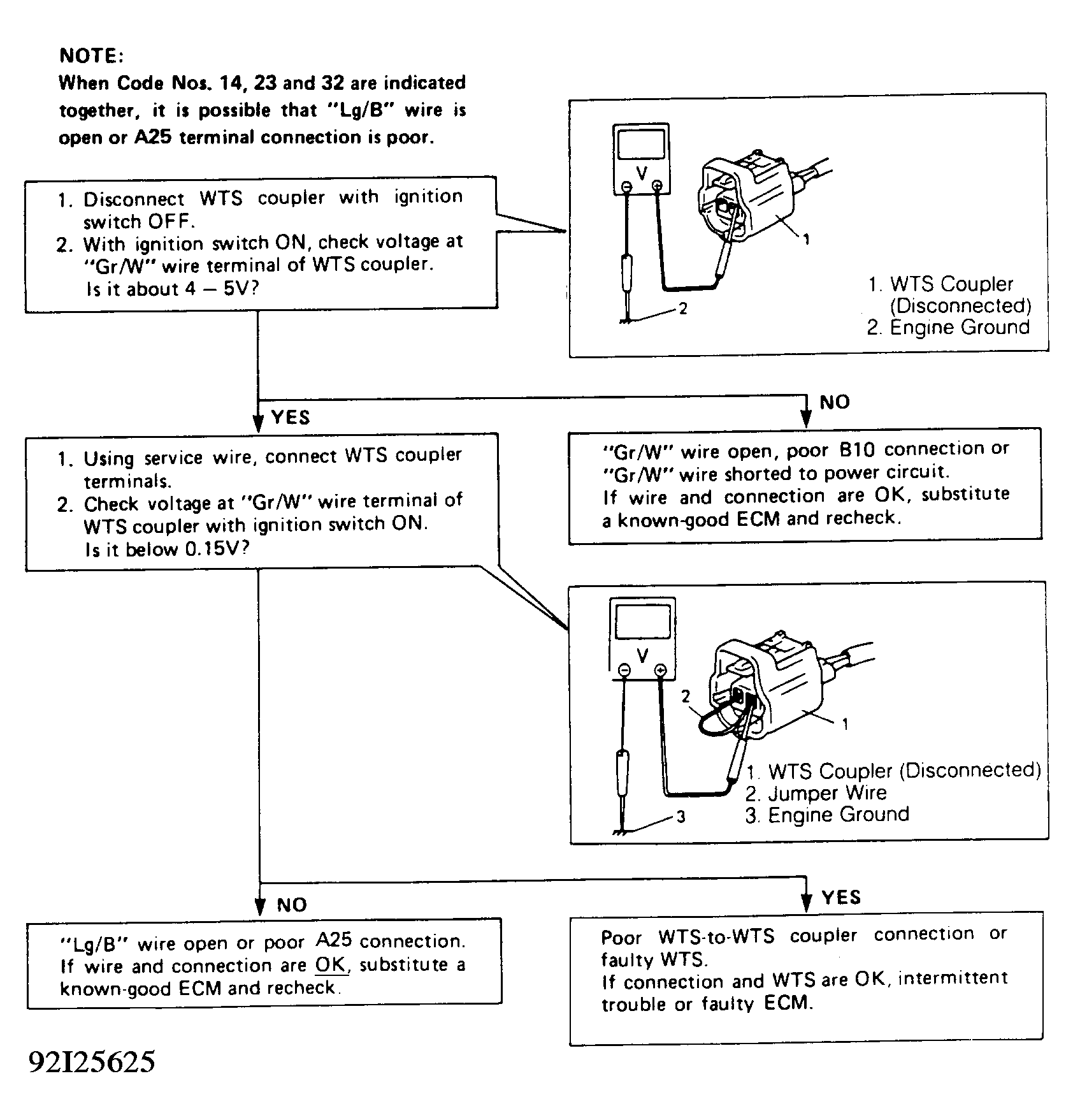

Fig 2: Code 14, Flow Chart - Water Temperature Sensor Indication Low

G92I25625
