Code 15 - Water Temperature Sensor, High Temp Indicated

Fig 1: Code 15, Schematic - Water Temperature Sensor Indication High

G92J25626

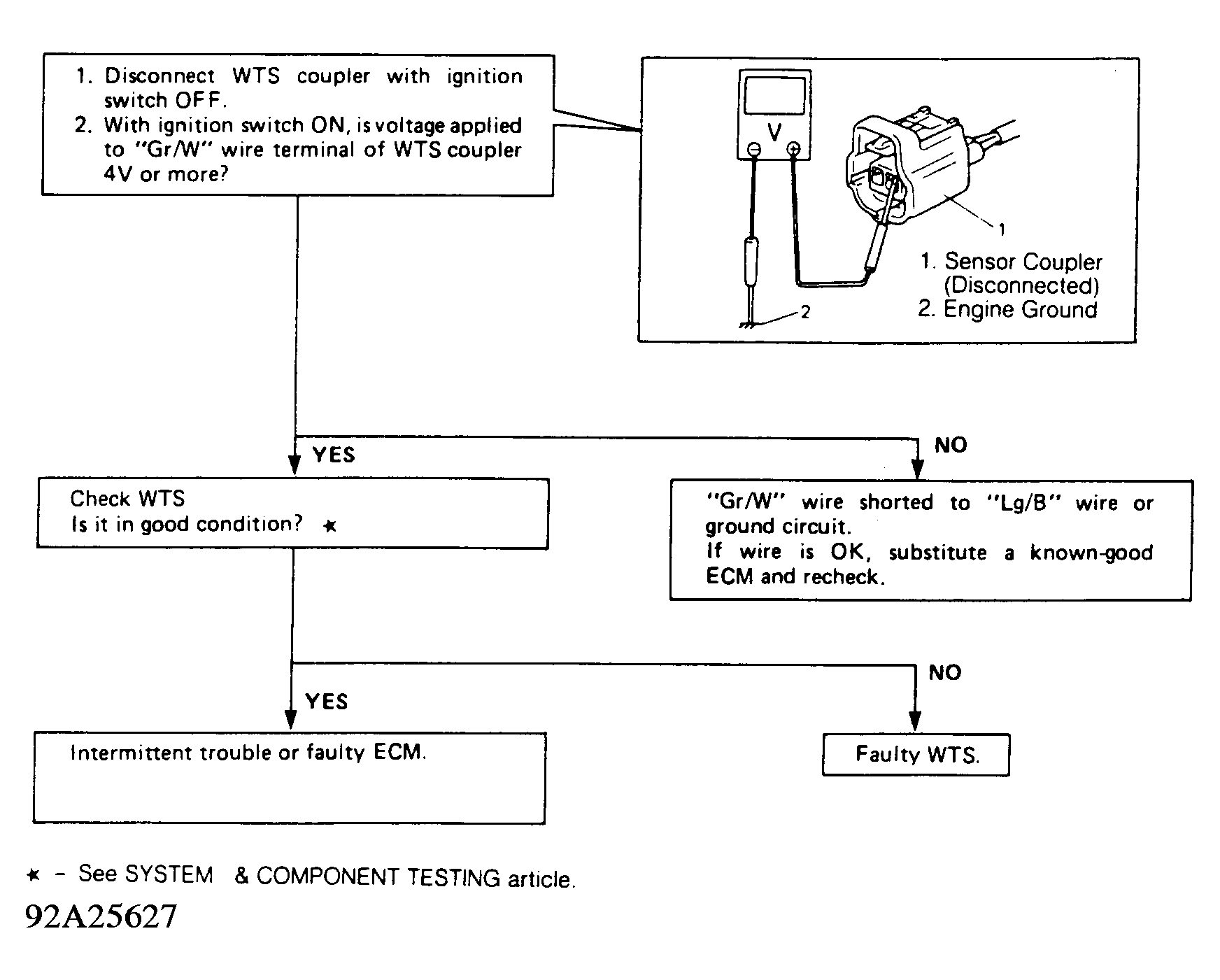

Fig 2: Code 15, Flow Chart - Water Temperature Sensor Indication High

G92A25627
