Code 14 - Cts, Low Temperature Indicated

Fig 1: Code 14, Schematic - CTS Indication Low

G91B18524

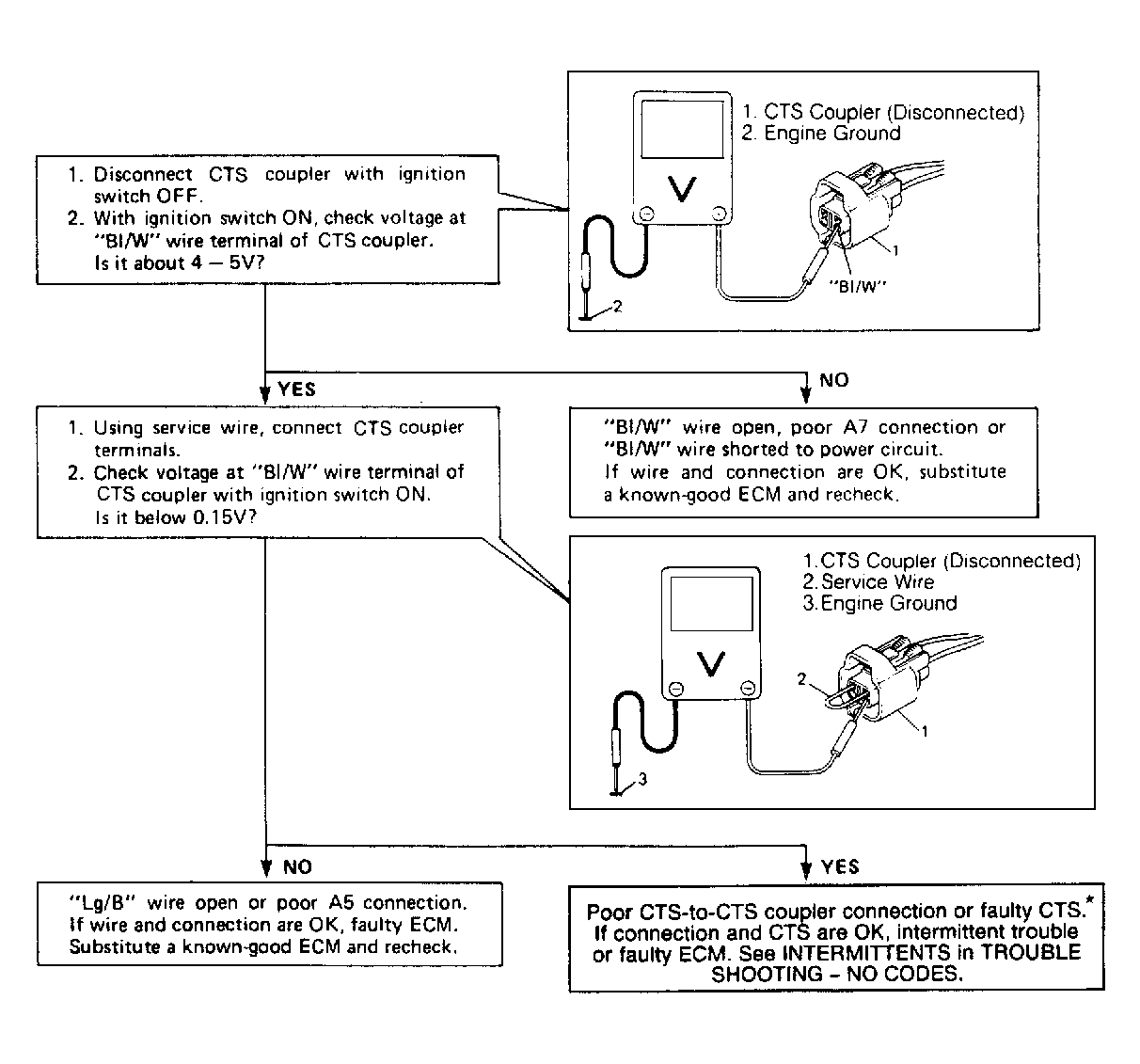

Fig 2: Code 14, Flow Chart - CTS Indication Low

G91C18525
