Code 13 - Heated Oxygen Sensor Circuit

NOTE: When repairs and testing are completed, see FINAL CHECK  .

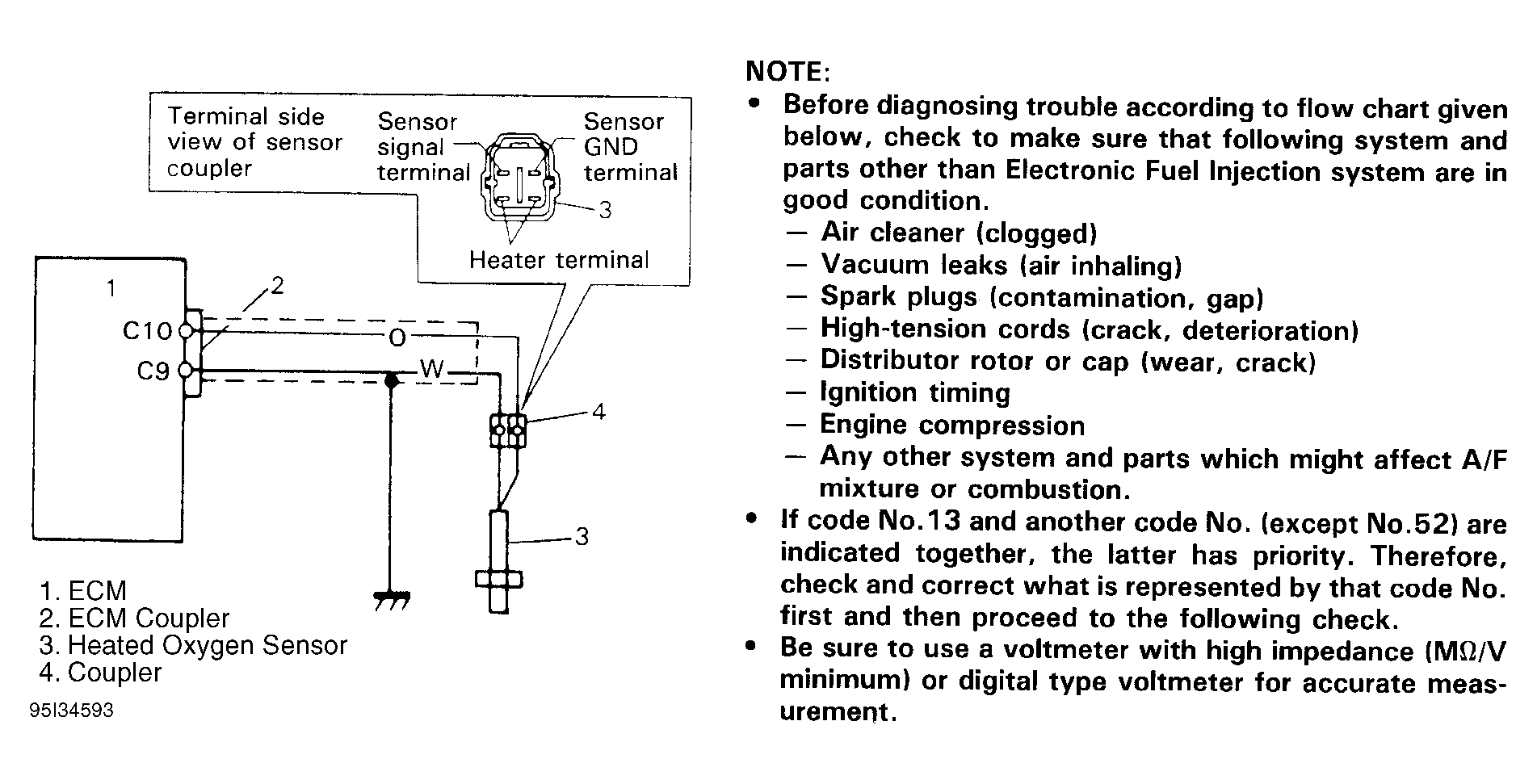

Fig 1: Code 13 - Circuit Diagram

Courtesy of SUZUKI OF AMERICA CORP

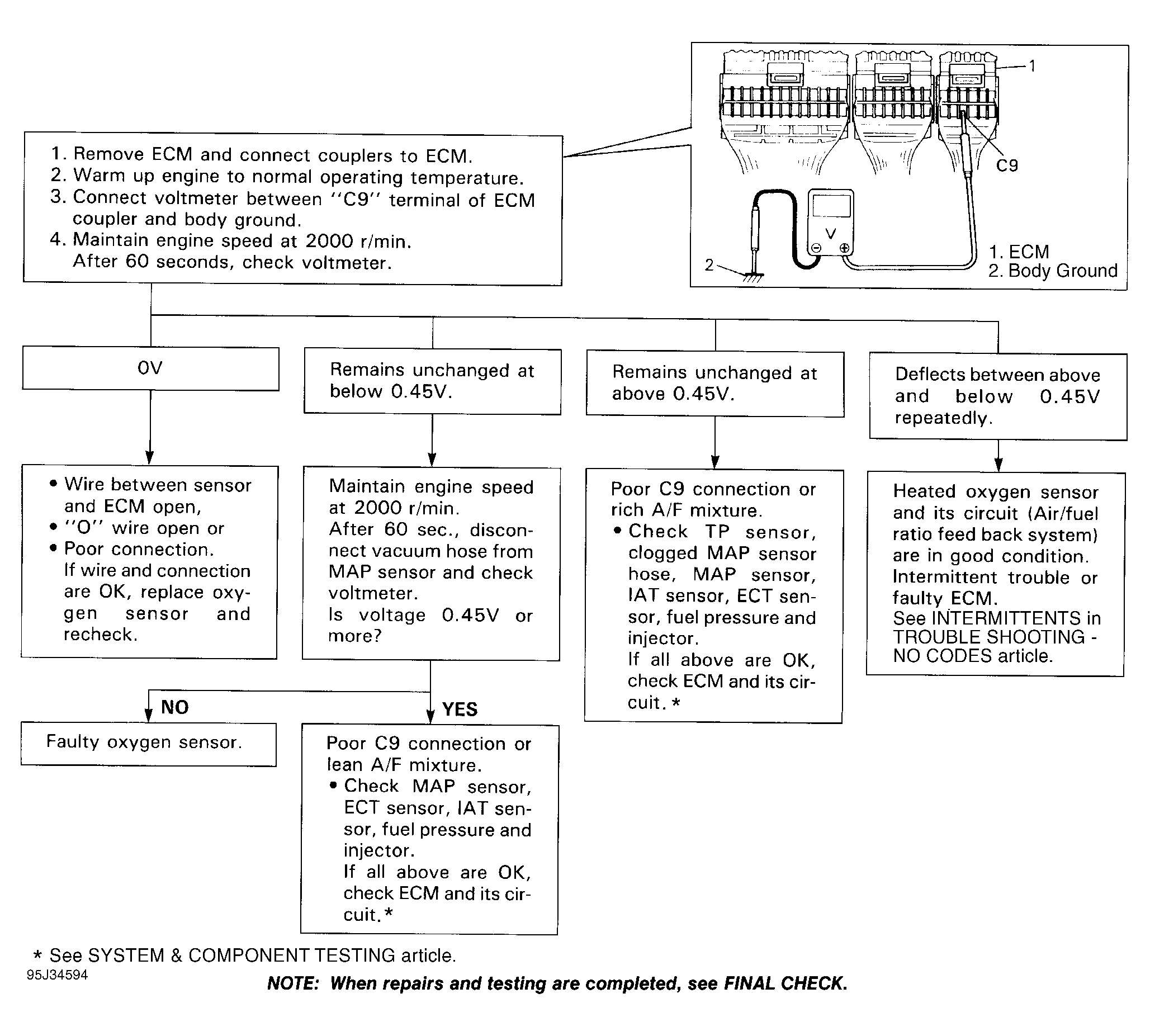

Fig 2: Code 13 - Flow Chart

Courtesy of SUZUKI OF AMERICA CORP
