Code 42 - Camshaft Position (CMP) Sensor Circuit No Signal For 2 Seconds During Engine Starting

NOTE: When repairs and testing are completed, see FINAL CHECK  .

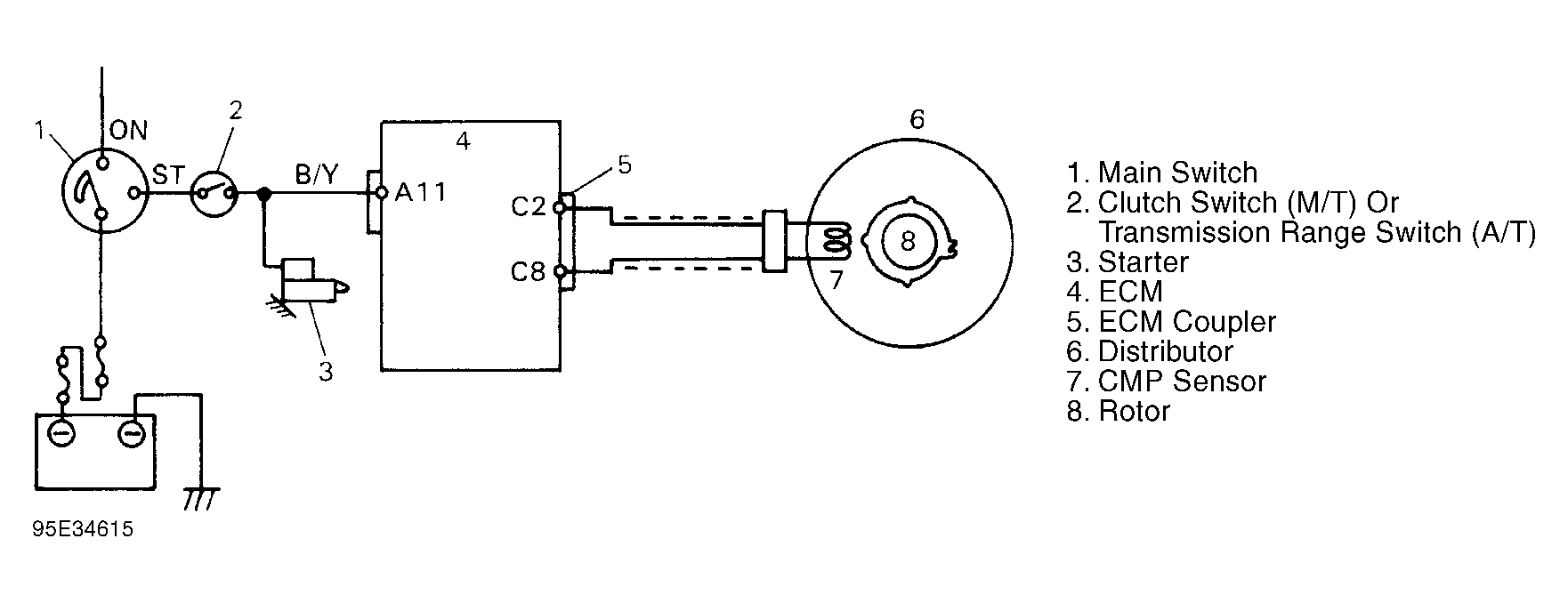

Fig 1: Code 42 - Circuit Diagram

Courtesy of SUZUKI OF AMERICA CORP

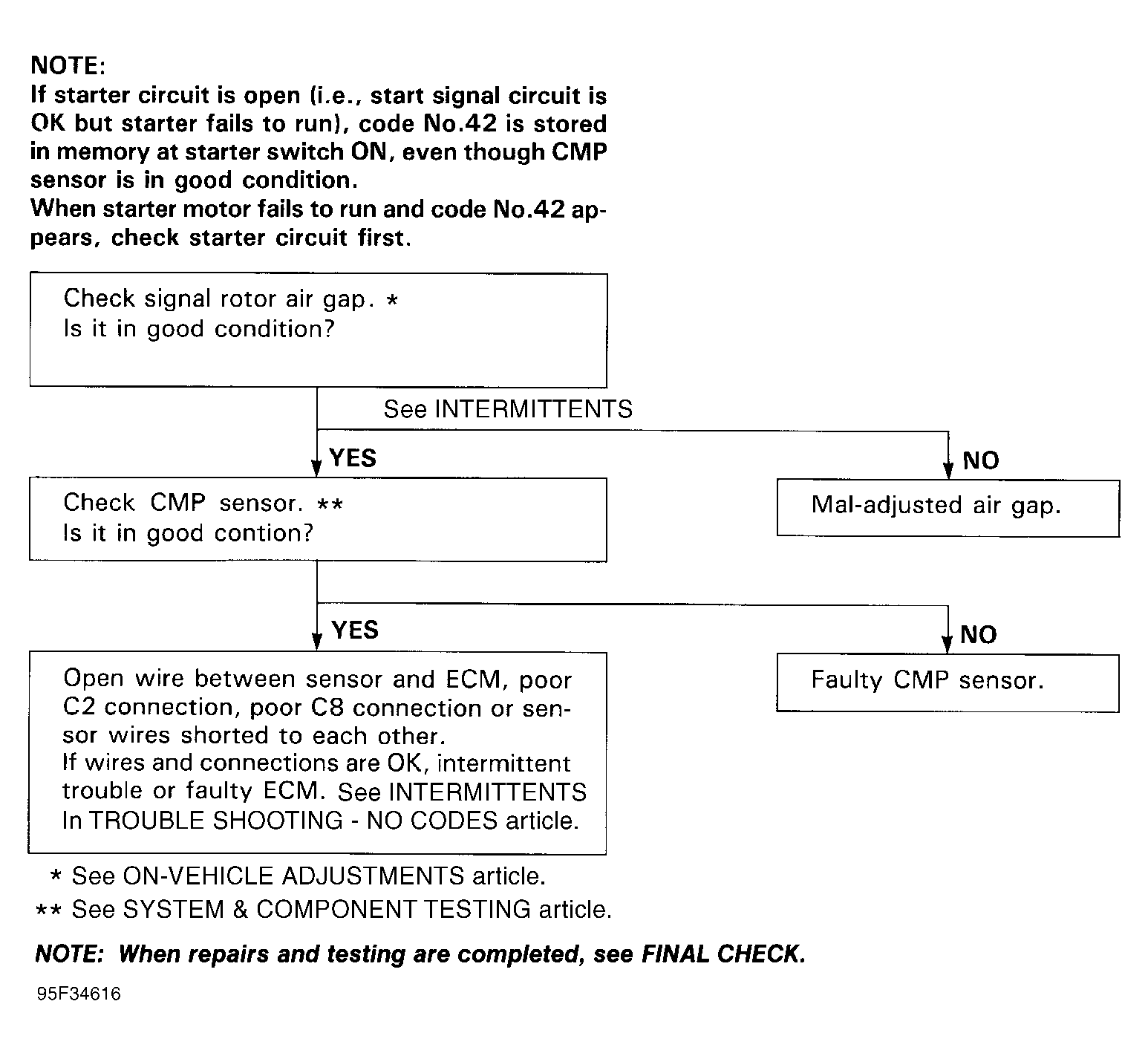

Fig 2: Code 42 - Flow Chart

Courtesy of SUZUKI OF AMERICA CORP
