Engine Controls - System/Component Tests
›
Circuit Resistance Charts
Circuit Resistance Charts

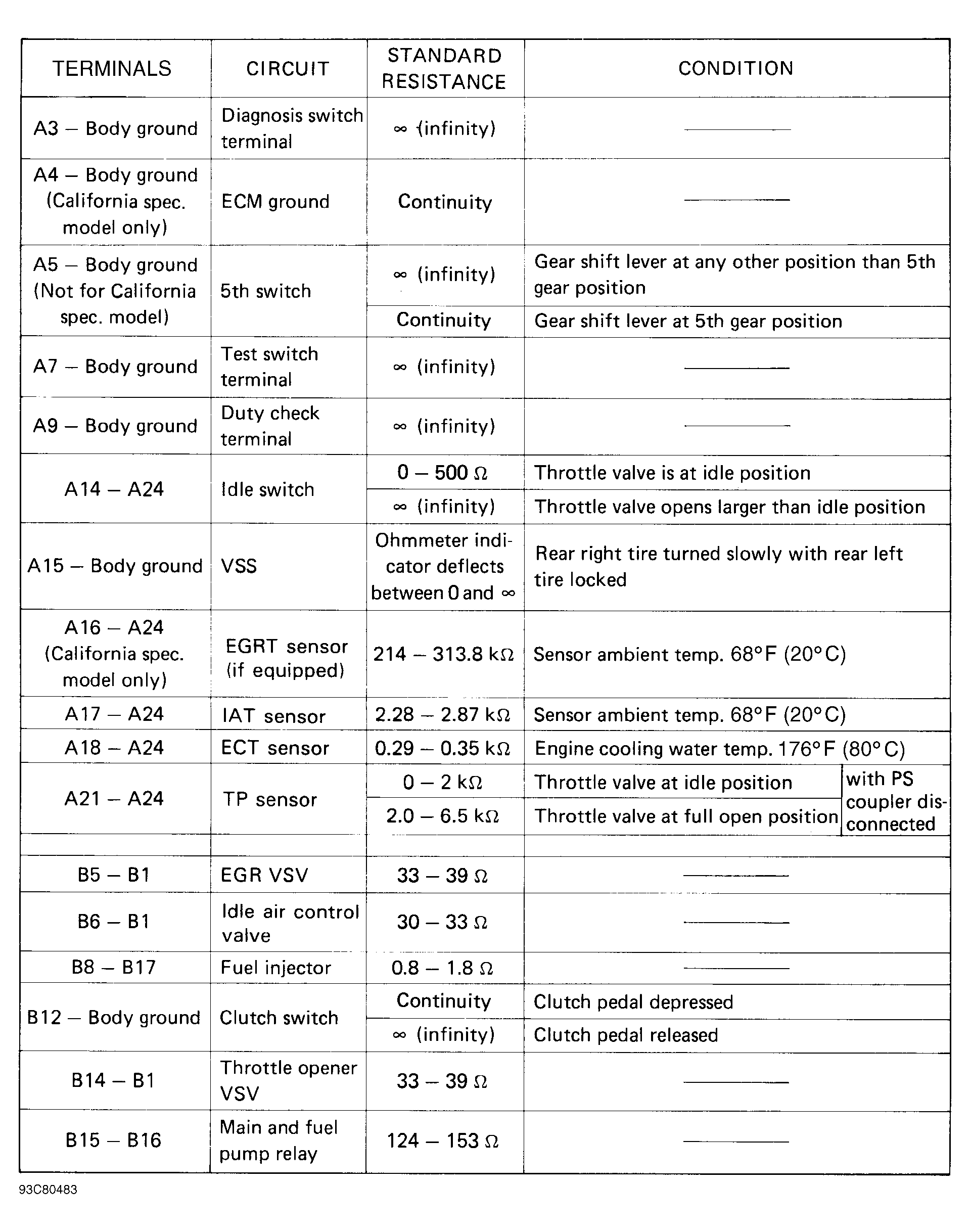

Fig 1: Circuit Resistance Chart
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
