Code 13 - Oxygen Sensor Circuit

Fig 1: Code 13 - Circuit Diagram
G91C18434Courtesy of SUZUKI OF AMERICA

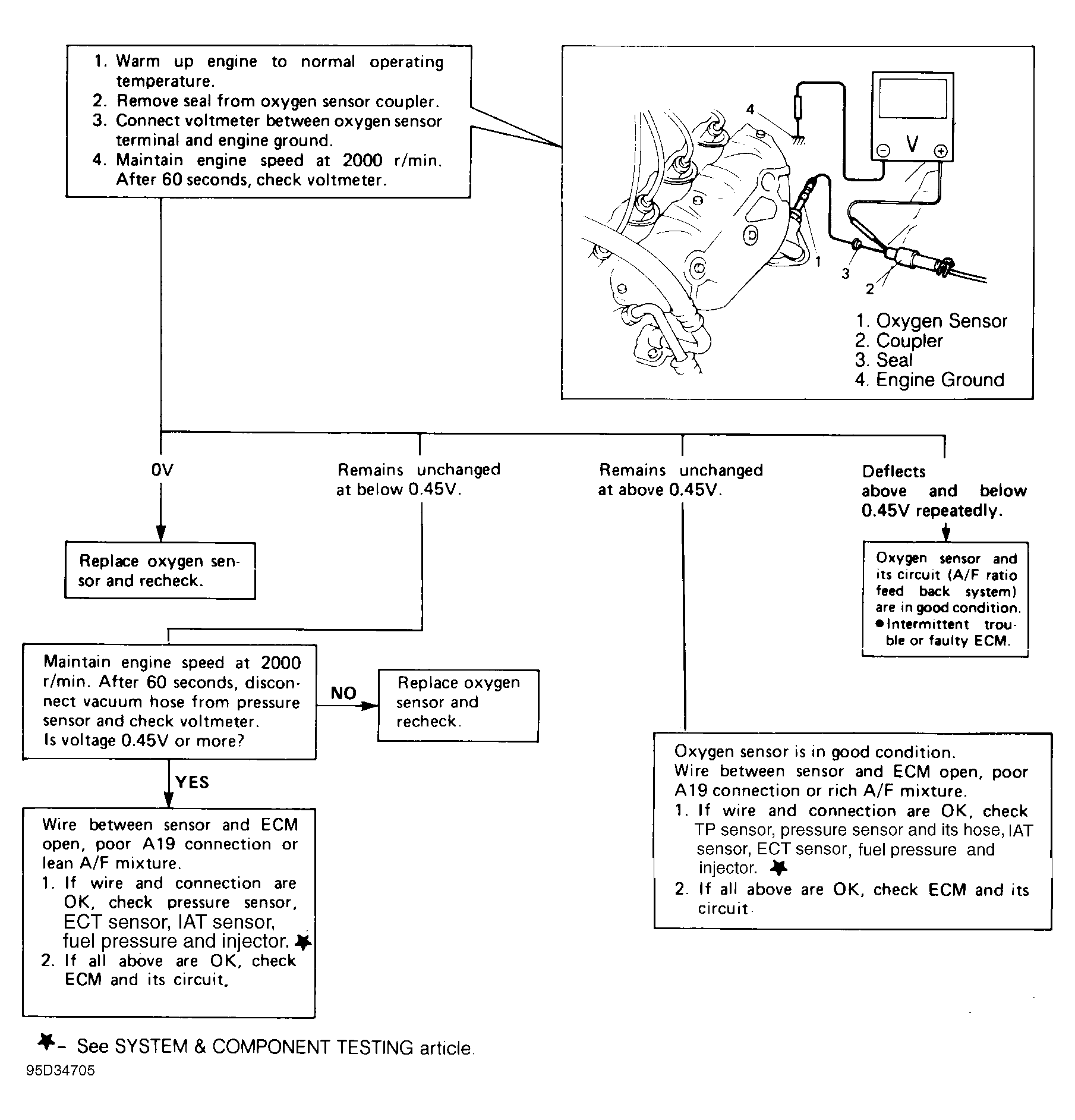

Fig 2: Code 13 - Flow Chart
G95D34705Courtesy of SUZUKI OF AMERICA
