Code 14 - ECT Sensor, Low Temperature Indicated

Fig 1: Code 14 - Circuit Diagram
G91H18488Courtesy of SUZUKI OF AMERICA

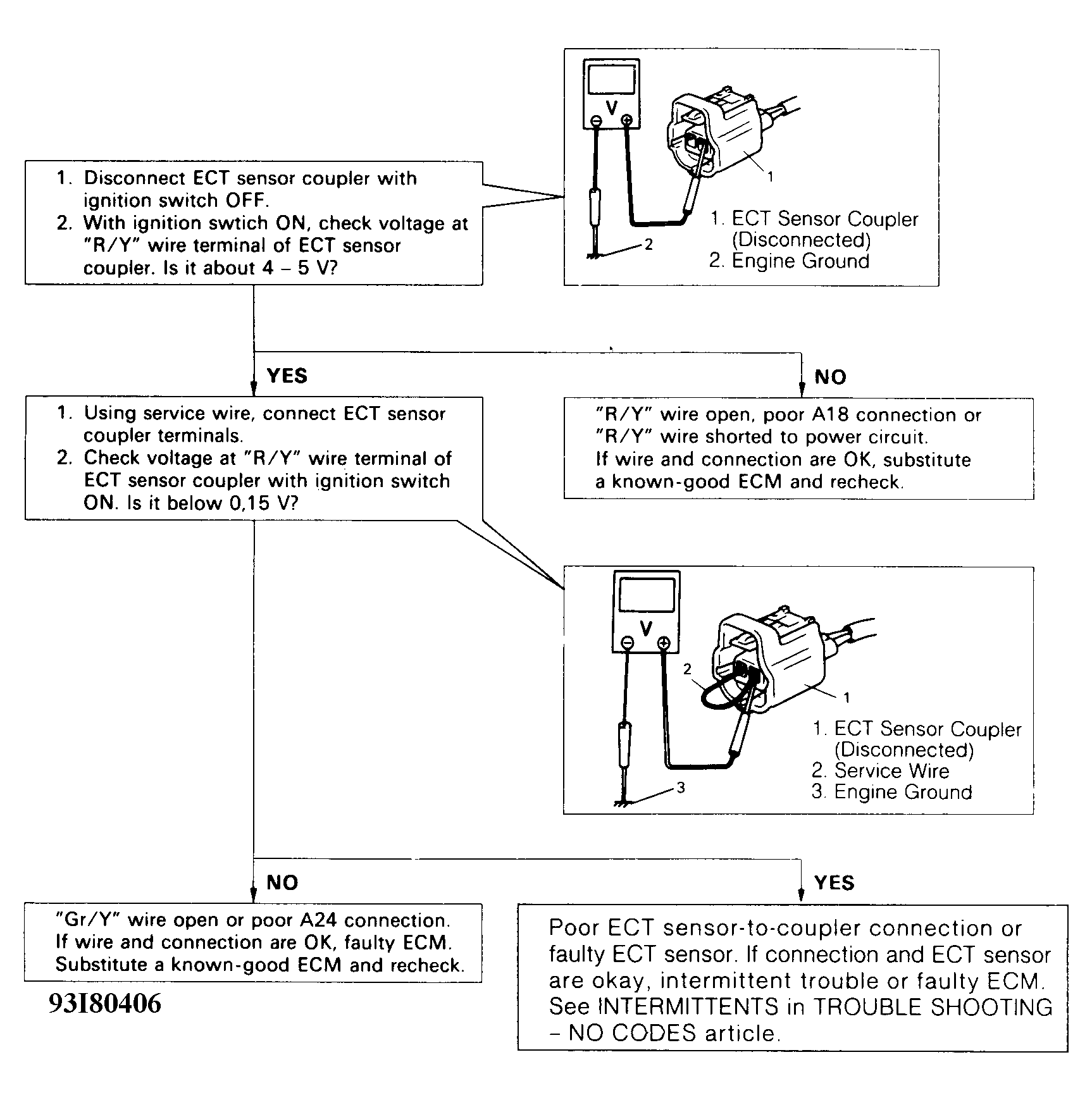

Fig 2: Code 14 - Flow Chart
G93I80406Courtesy of SUZUKI OF AMERICA
