Home › Suzuki › 1995 › Samurai › Repair and Diagnosis › Engine Performance › System › Engine Controls - Tests W/Codes › Self-Diagnostic Trouble Code Charts › Code 15 - ECT Sensor, High Temperature Indicated

Code 15 - ECT Sensor, High Temperature Indicated

Fig 1: Code 15 - Circuit Diagram
G91H18488Courtesy of SUZUKI OF AMERICA

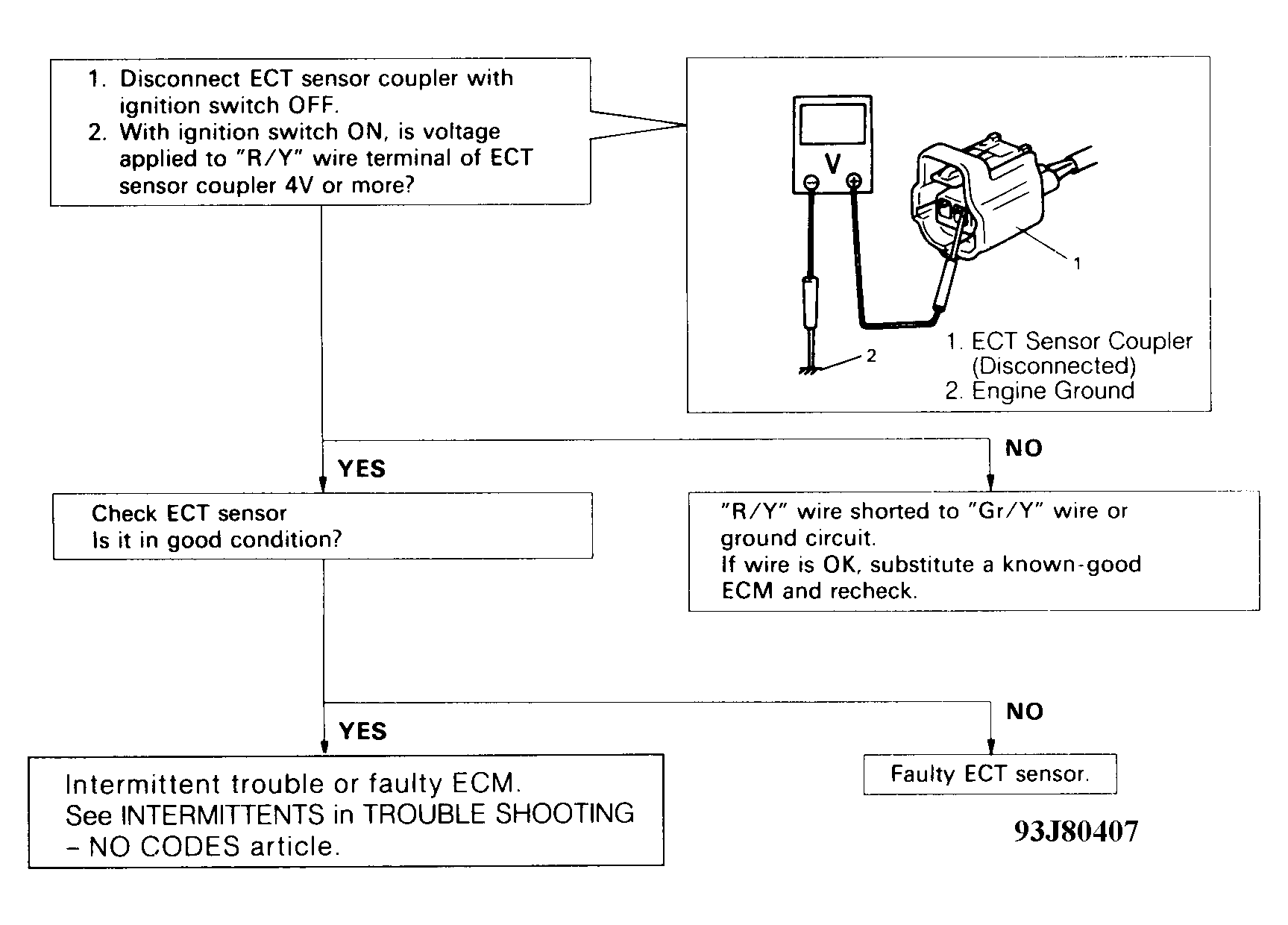

Fig 2: Code 15 - Flow Chart
G93J80407Courtesy of SUZUKI OF AMERICA
