Code 13 - Heated Oxygen Sensor Circuit

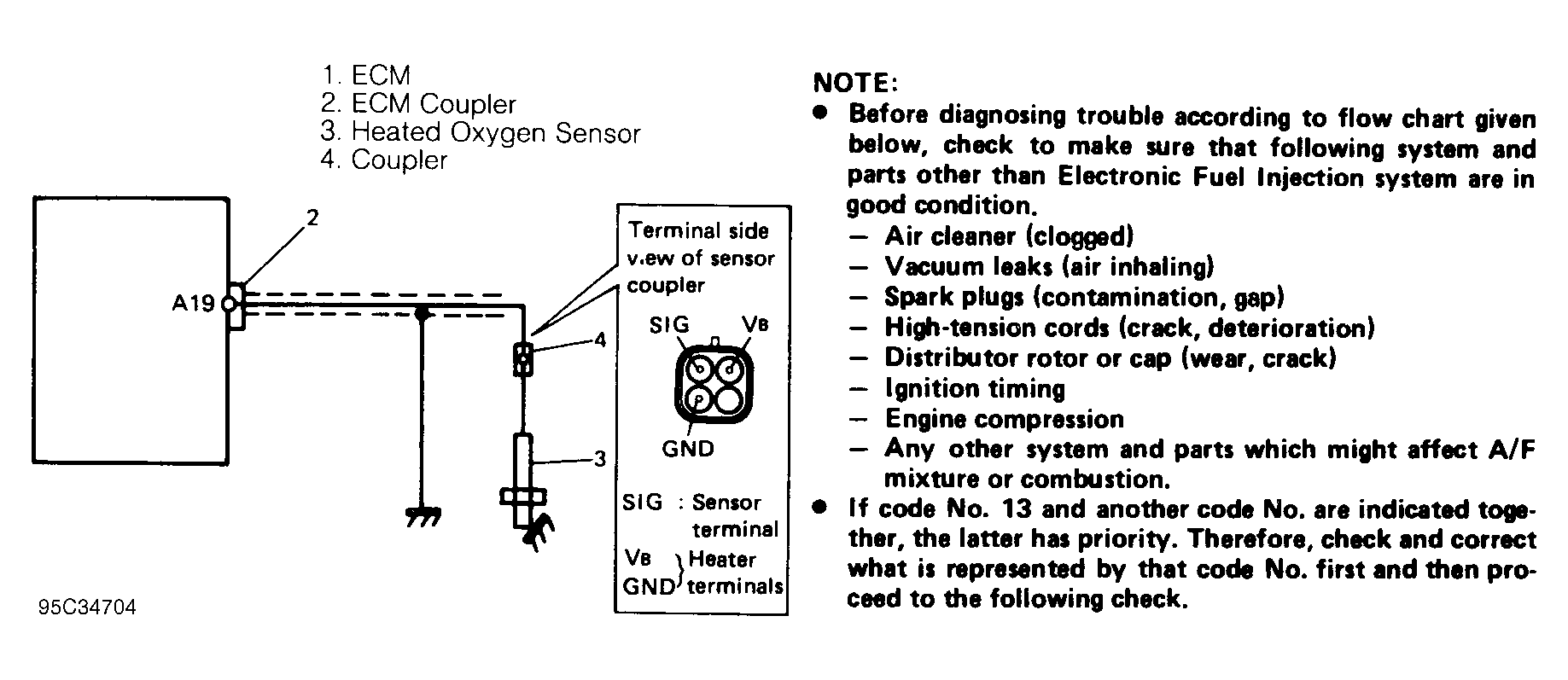

Fig 1: Code 13 - Circuit Diagram
G95C34704Courtesy of SUZUKI OF AMERICA
Fig 2: Code 13 - Flow Chart
G93H80405Courtesy of SUZUKI OF AMERICA
