Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

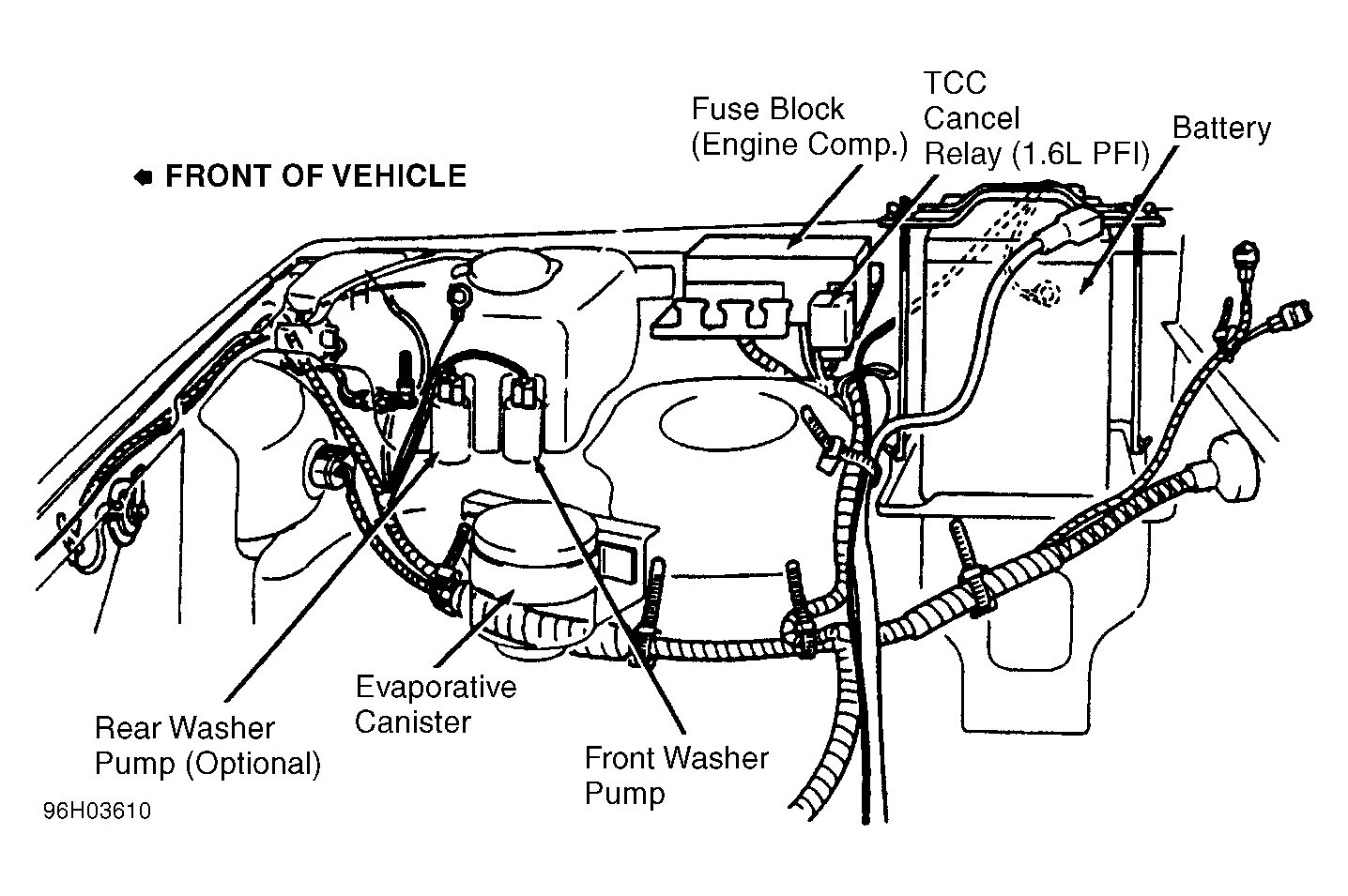

Fig 1: Engine Compartment

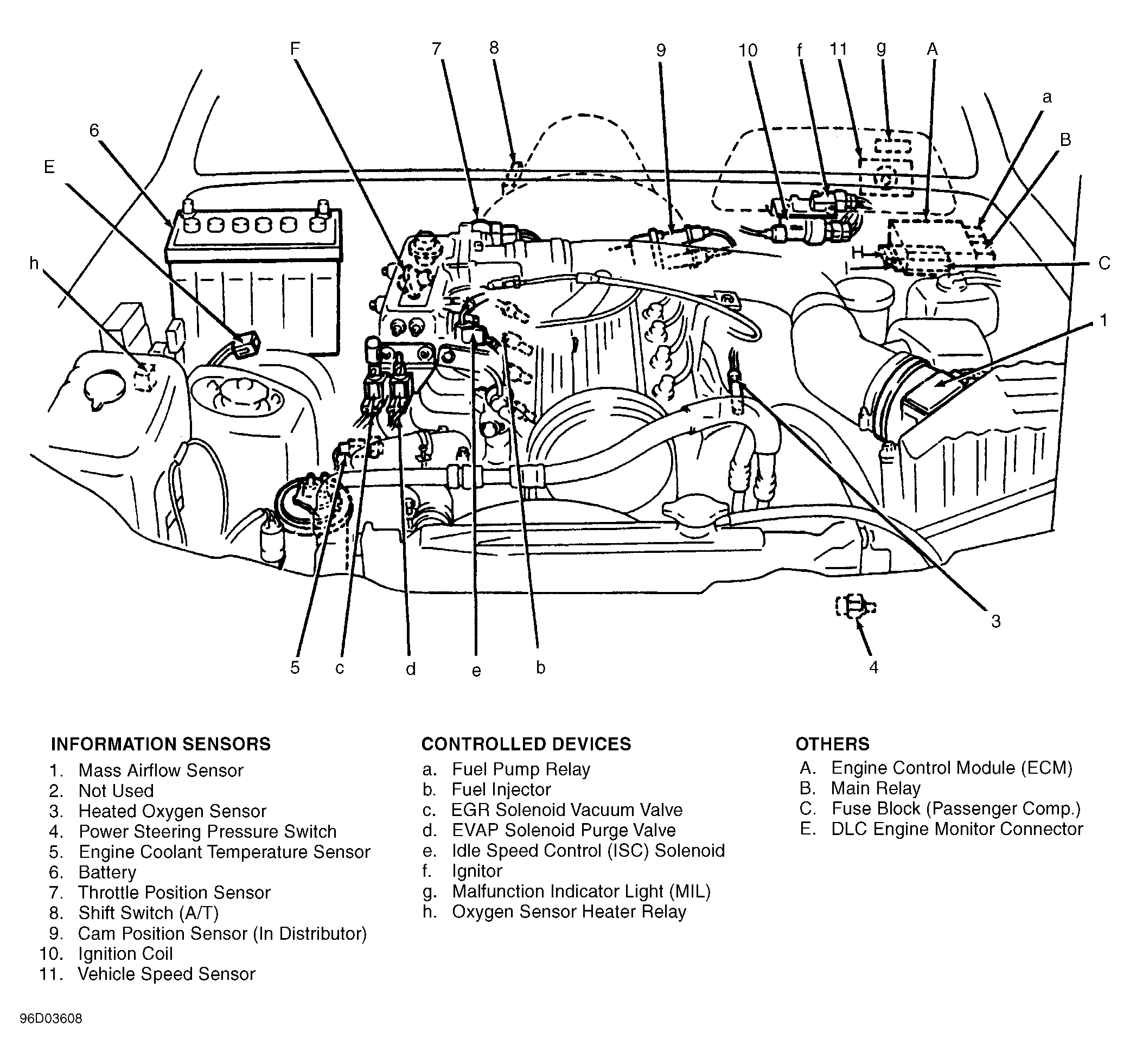

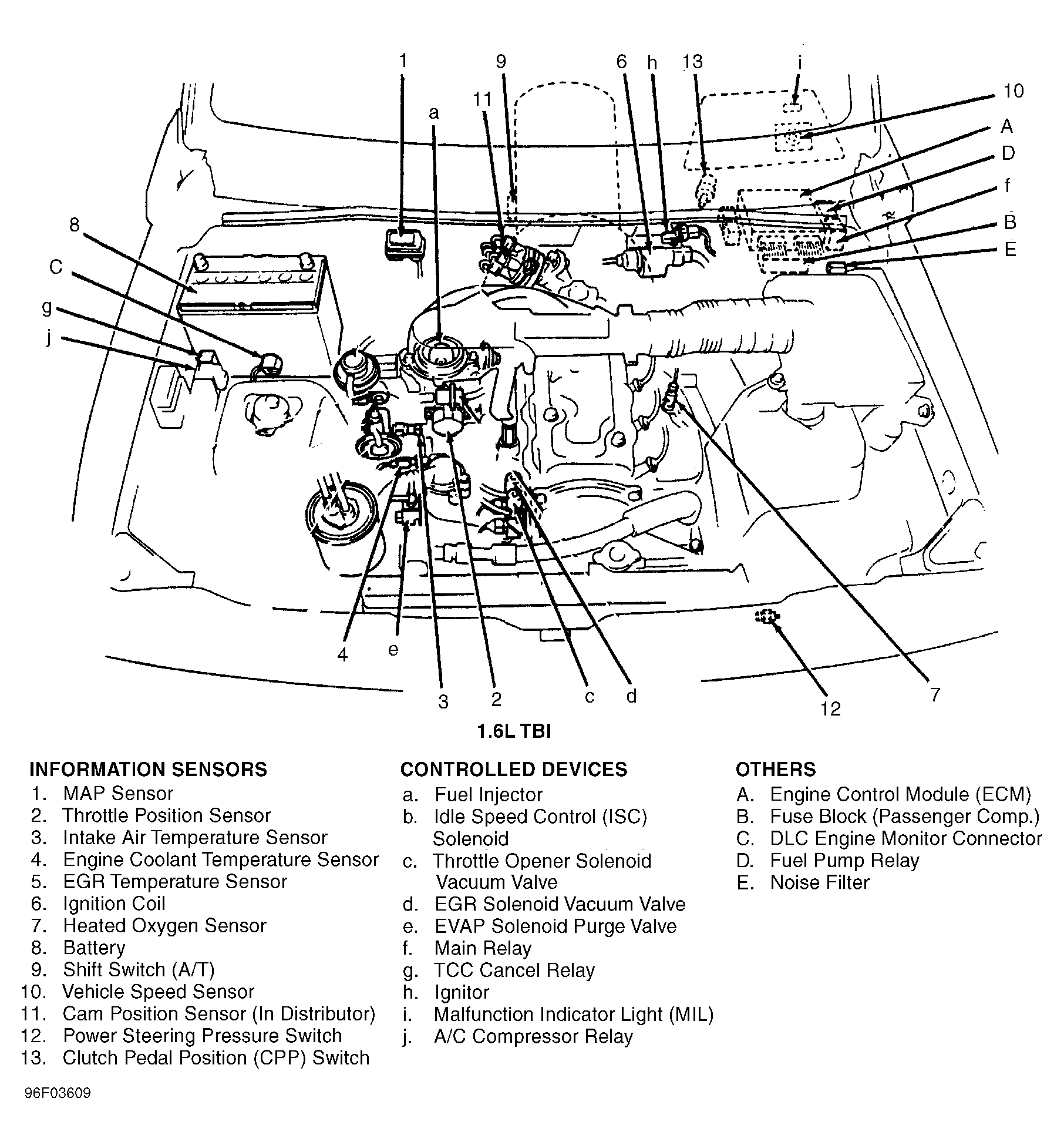

Fig 2: Engine Compartment

Fig 3: Dash
