Suzuki
›
1995
›
Sidekick JS, 4D Utility, Standard
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Engine Controls - System/Component Tests - MFI
›
Circuit Resistance Charts
Circuit Resistance Charts

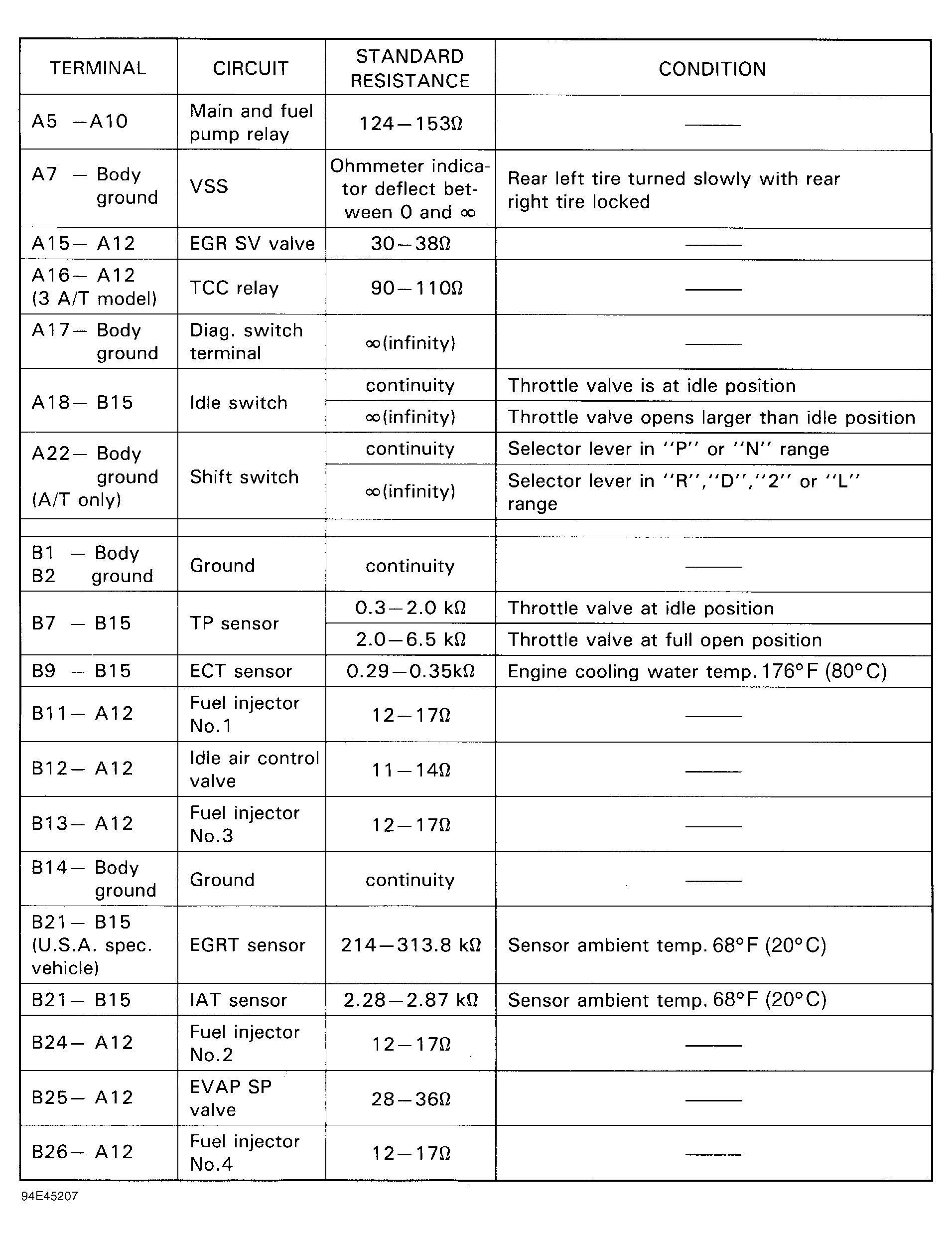

Fig 1: Circuit Resistance Chart
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
