Code 41 - Ignition Fail Safe Signal CKT No Ignition Signal

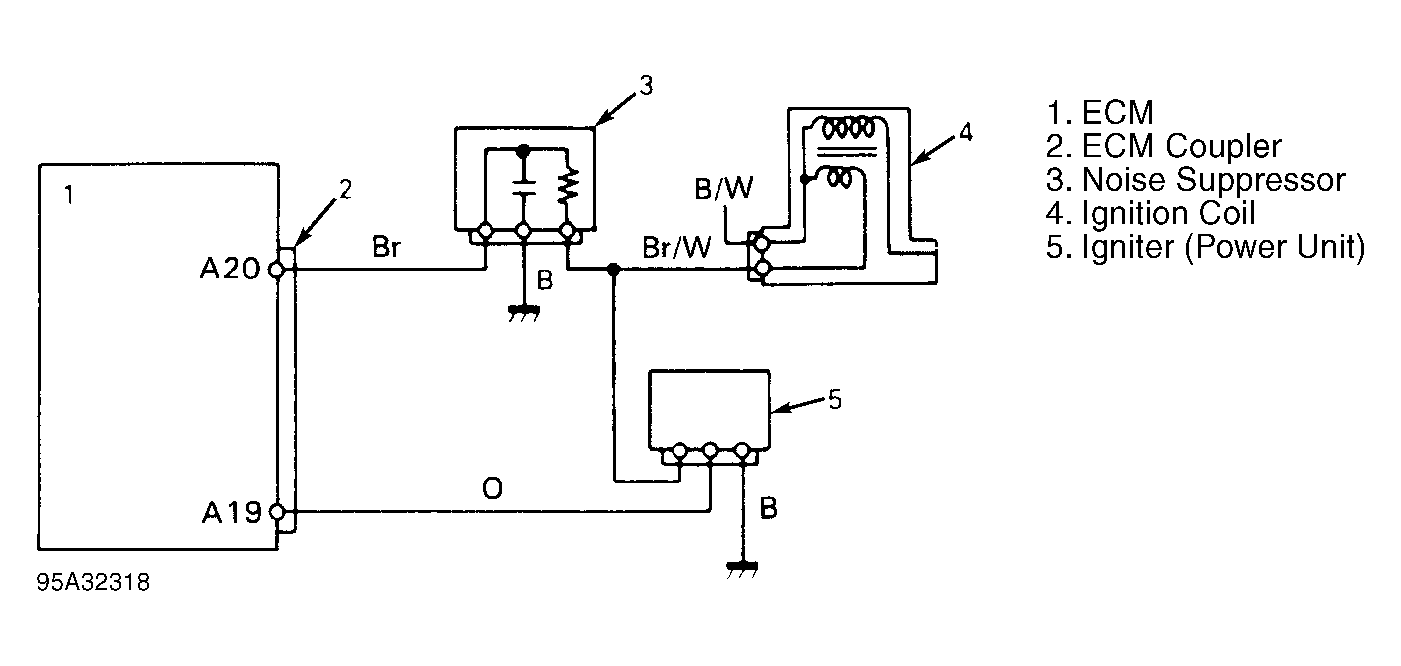

Fig 1: Code 41 - Circuit Diagram
G95A32318Courtesy of SUZUKI OF AMERICA

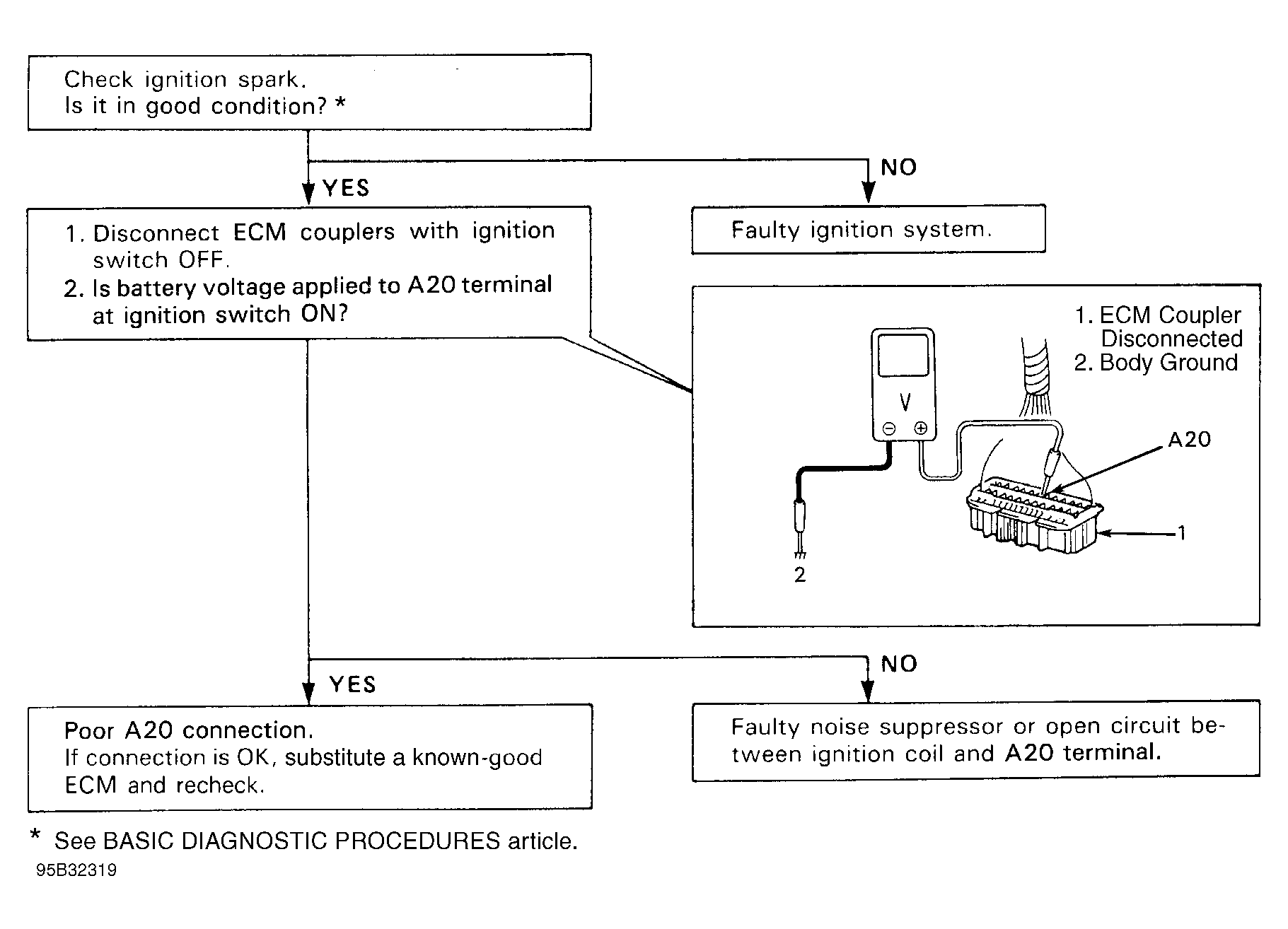

Fig 2: Code 41 - Flow Chart
G95B32319Courtesy of SUZUKI OF AMERICA
