Code 46 - Idle Speed Control (ISC) System ISC Out Of Range

NOTE: When repairs and testing are completed, see FINAL CHECK  .

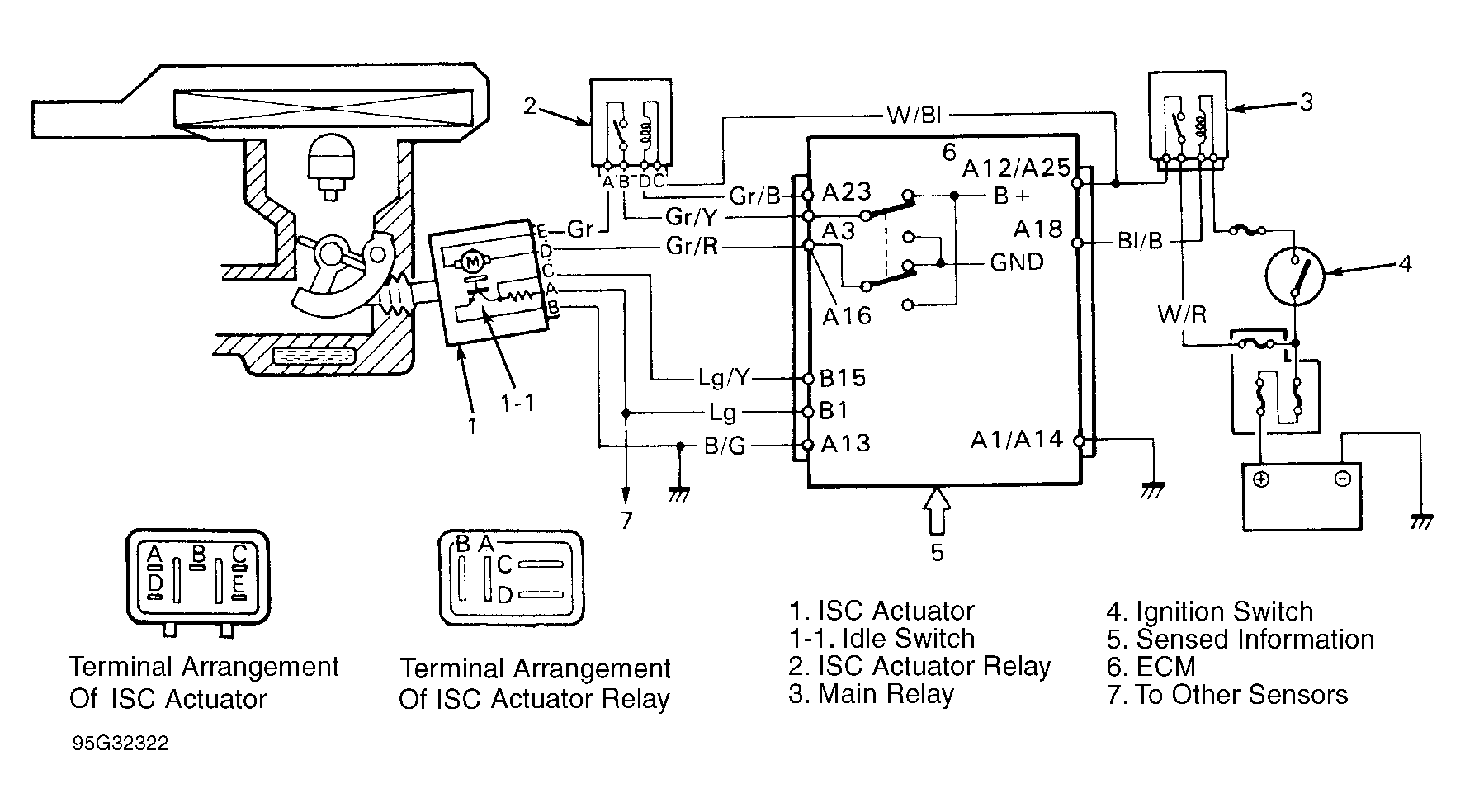

Fig 1: Code 46 - Circuit Diagram

Courtesy of SUZUKI OF AMERICA

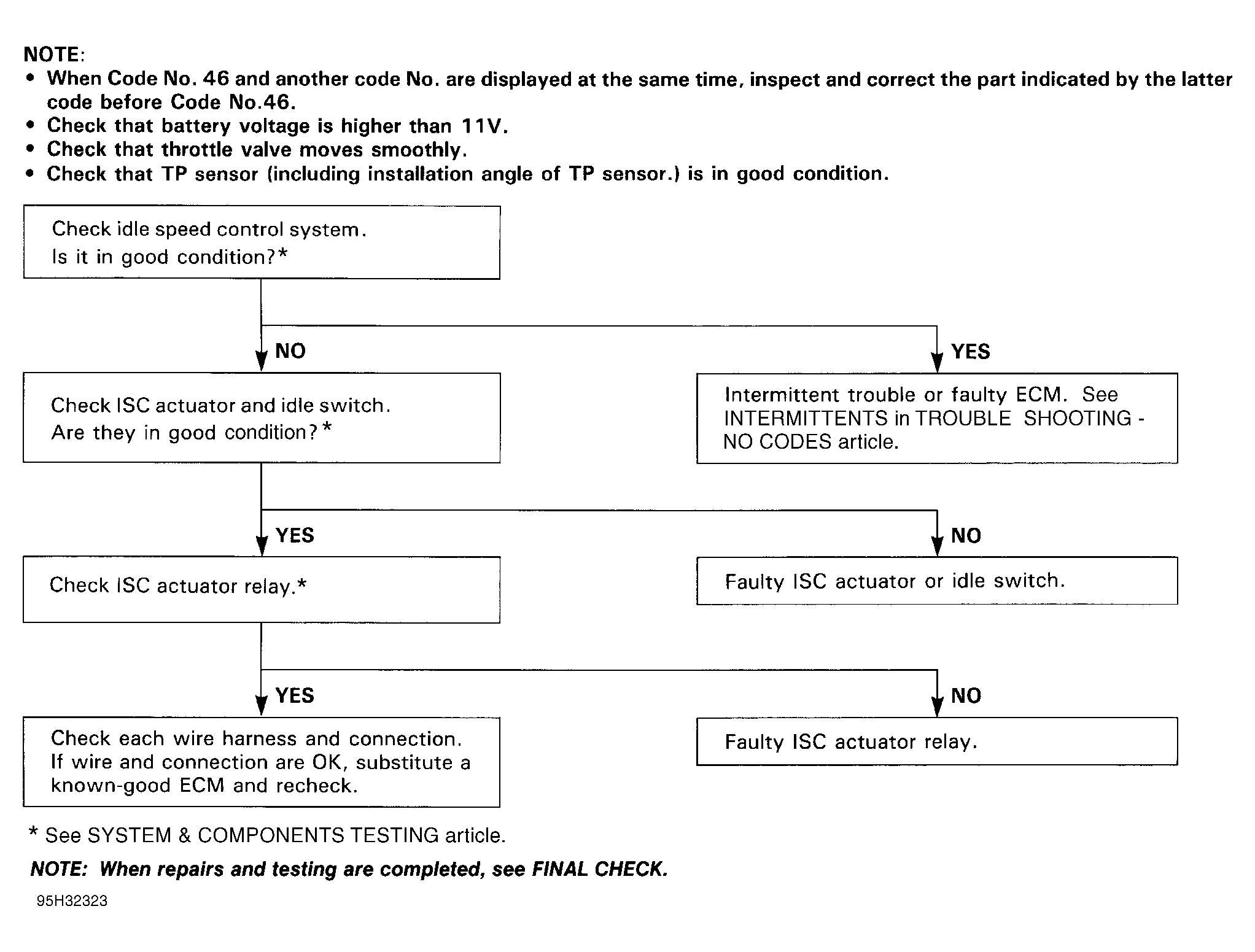

Fig 2: Code 46 - Flow Chart

Courtesy of SUZUKI OF AMERICA
