Code 51 - EGR System Faulty EGR System

NOTE: When repairs and testing are completed, see FINAL CHECK  .

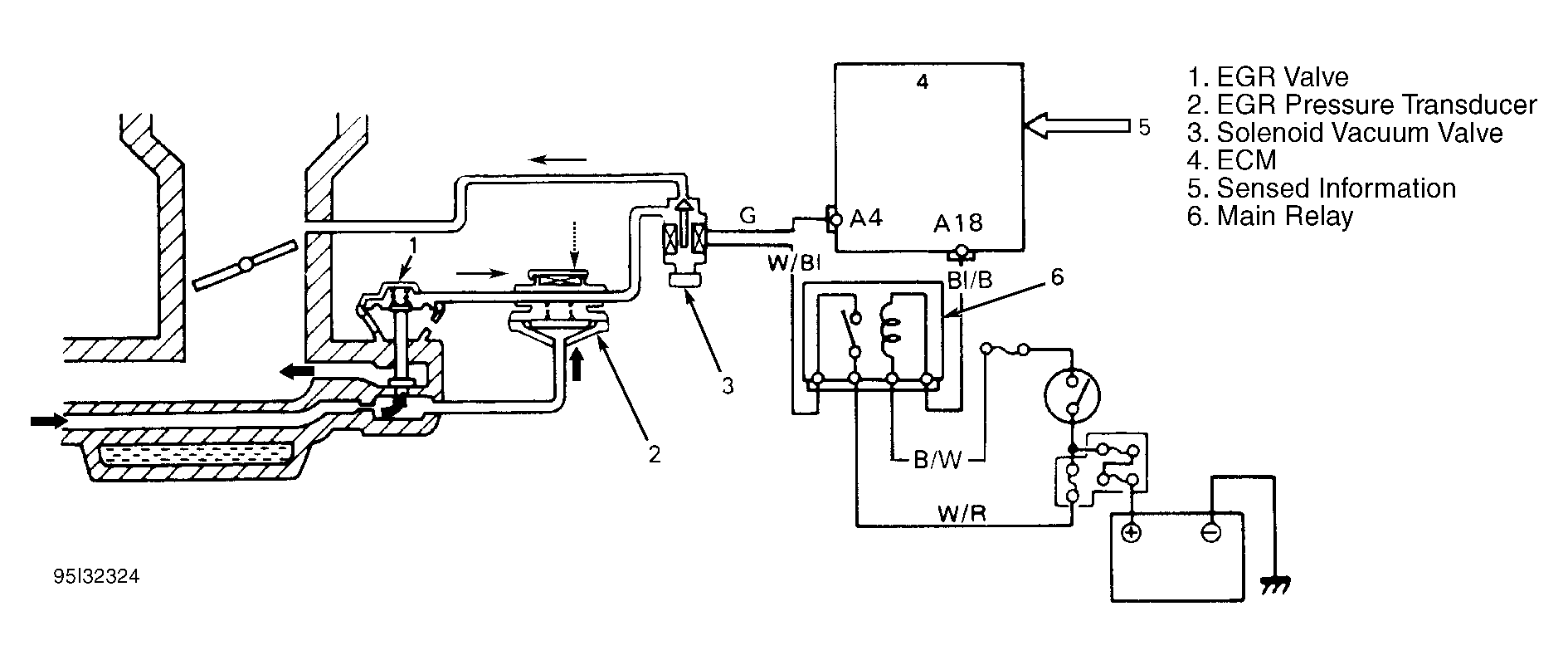

Fig 1: Code 51 - Circuit Diagram

Courtesy of SUZUKI OF AMERICA

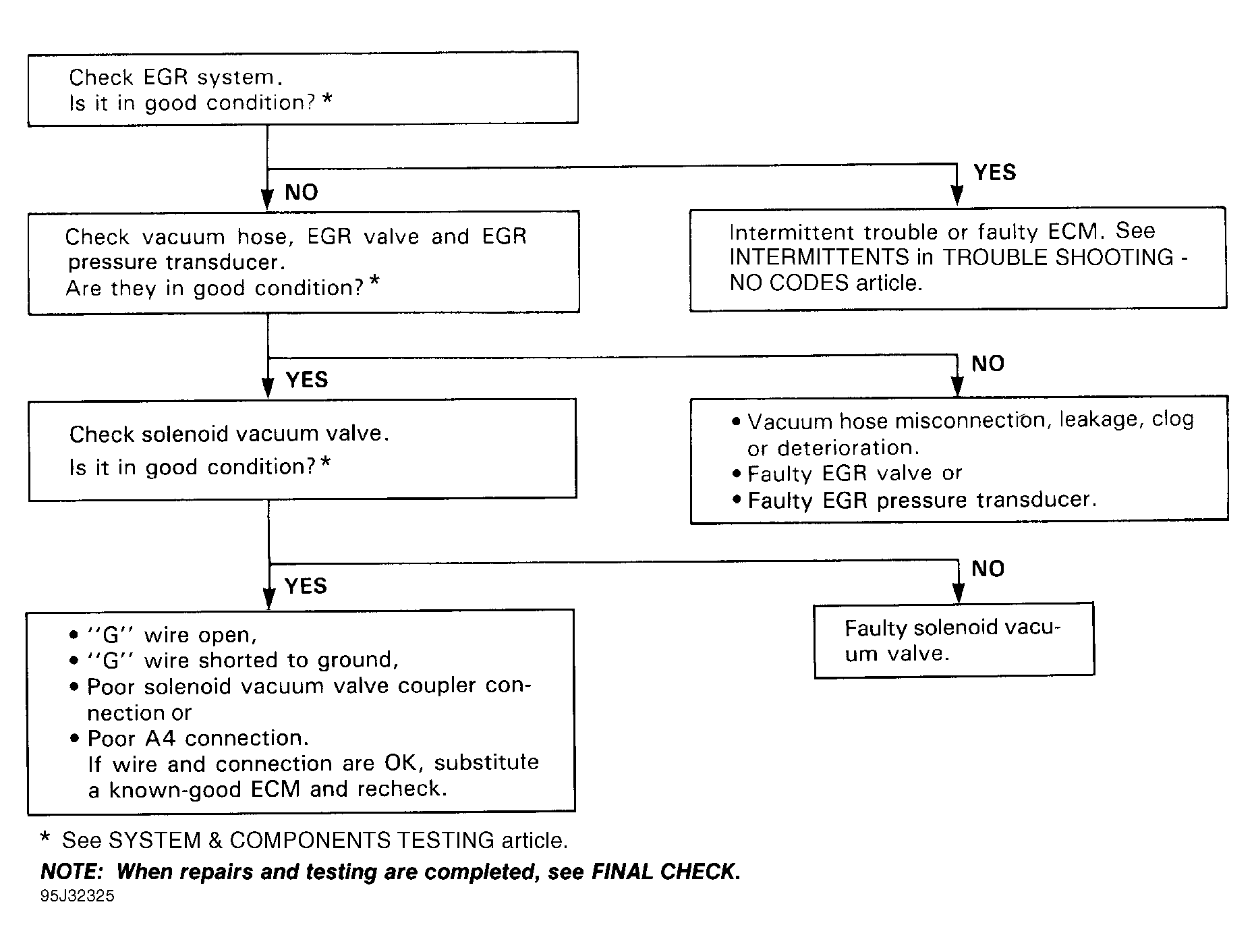

Fig 2: Code 51 - Flow Chart

Courtesy of SUZUKI OF AMERICA
