Interlock Cable & Shift Lock Solenoid: Notes

Fig 1: Adjusting Shift Lock Solenoid (Typical)

Courtesy of SUZUKI OF AMERICA CORP.

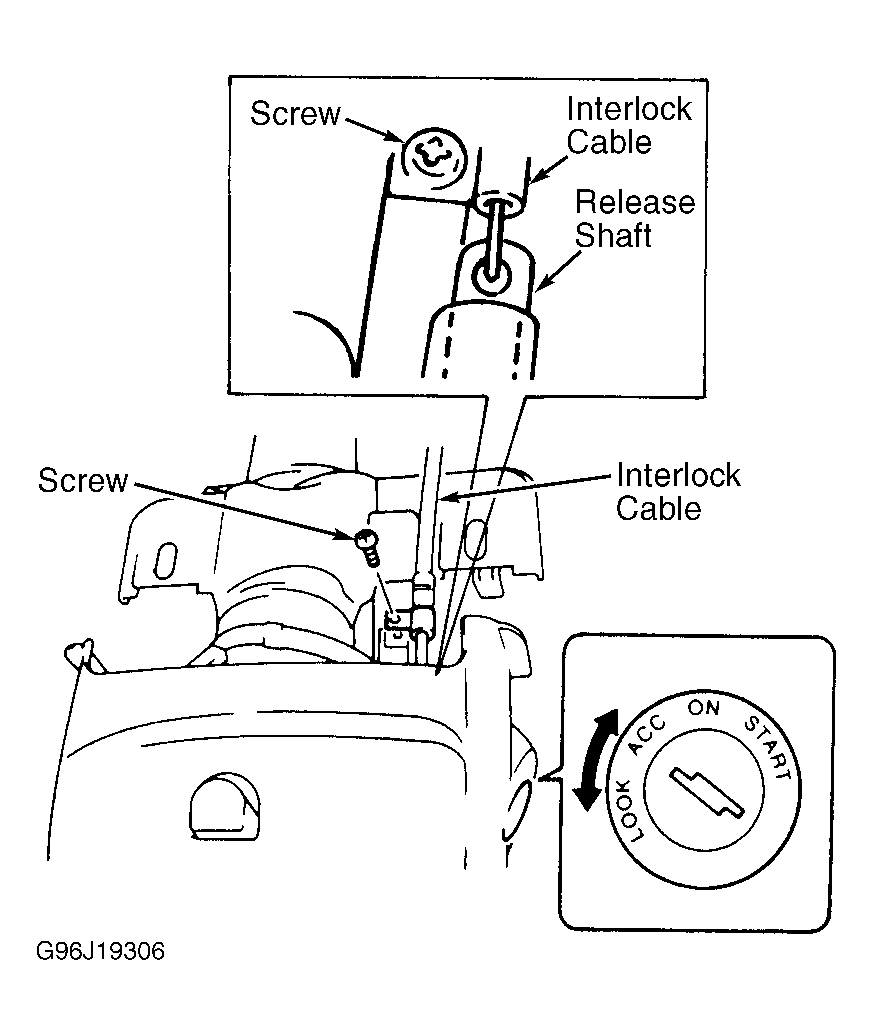

Fig 2: Adjusting Shift Lock Cable (Typical)

Courtesy of SUZUKI OF AMERICA CORP.

NOTE: Shift Interlock system will not allow gearshift to move from Park unless ignition is on. It also prevents ignition key removal unless gearshift is in Park.
