Circuit Resistance Charts

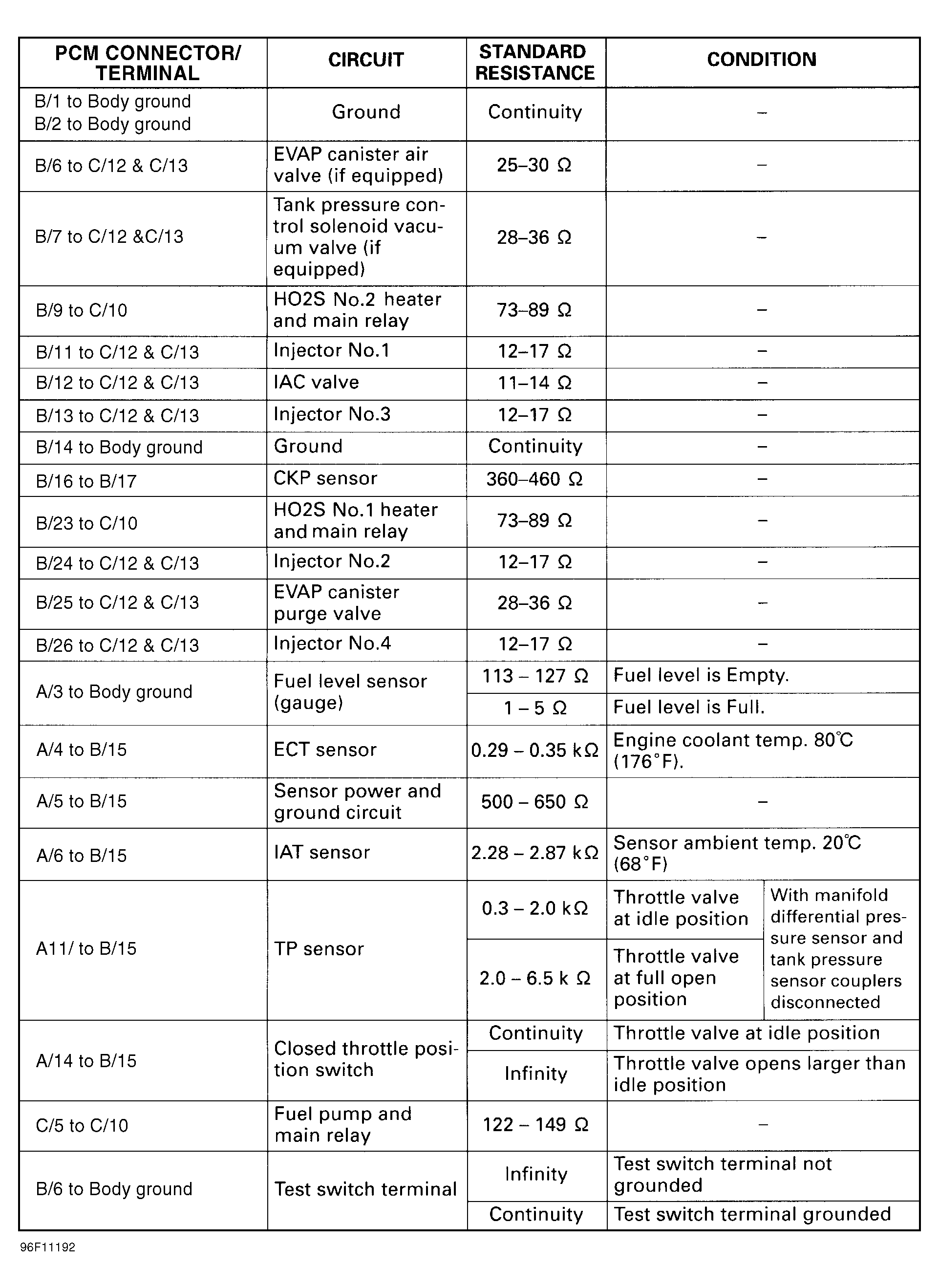

Fig 1: Circuit Resistance Chart (1 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.

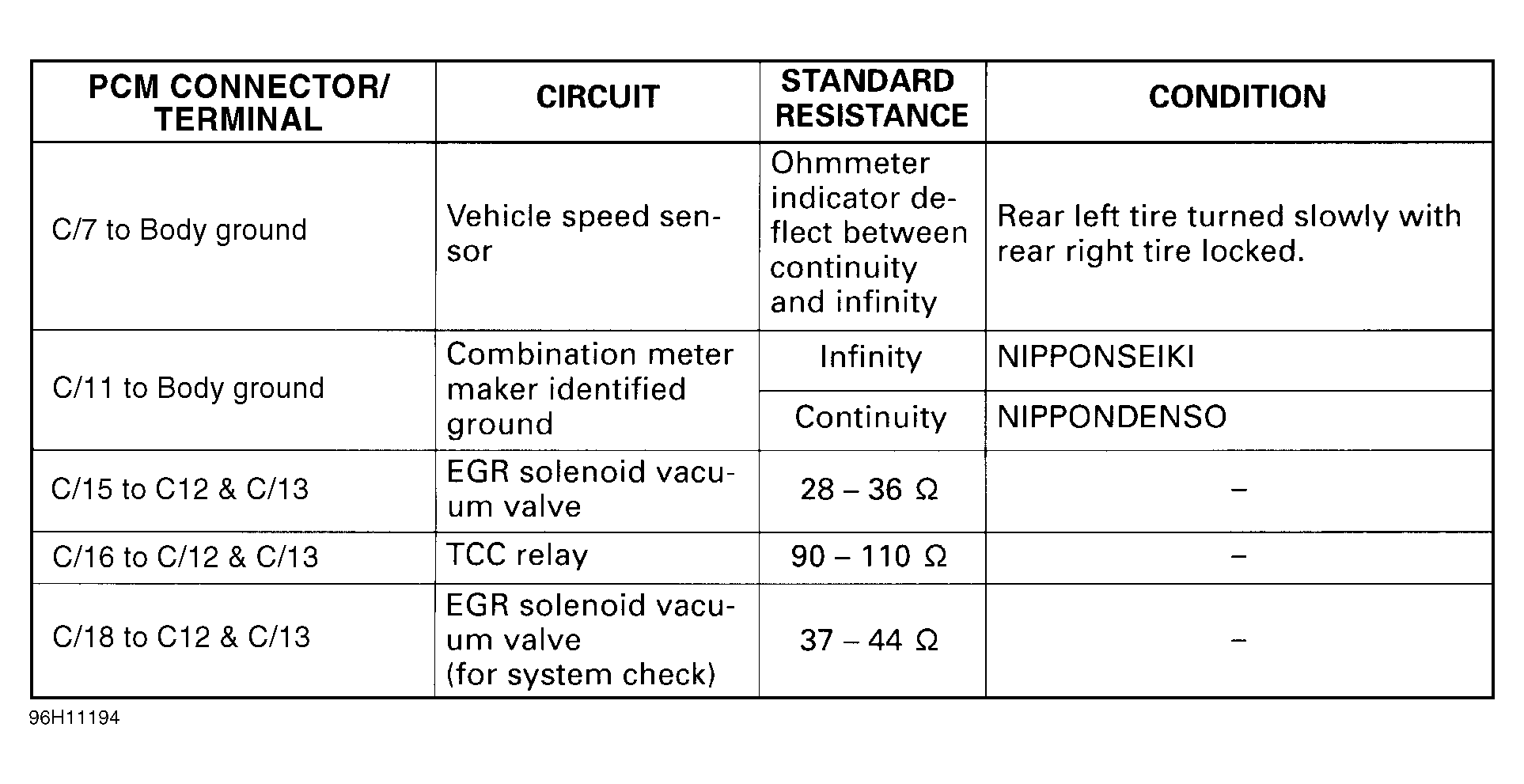

Fig 2: Circuit Resistance Chart (2 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
