Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Engine Compartment.

Fig 2: Engine Compartment.

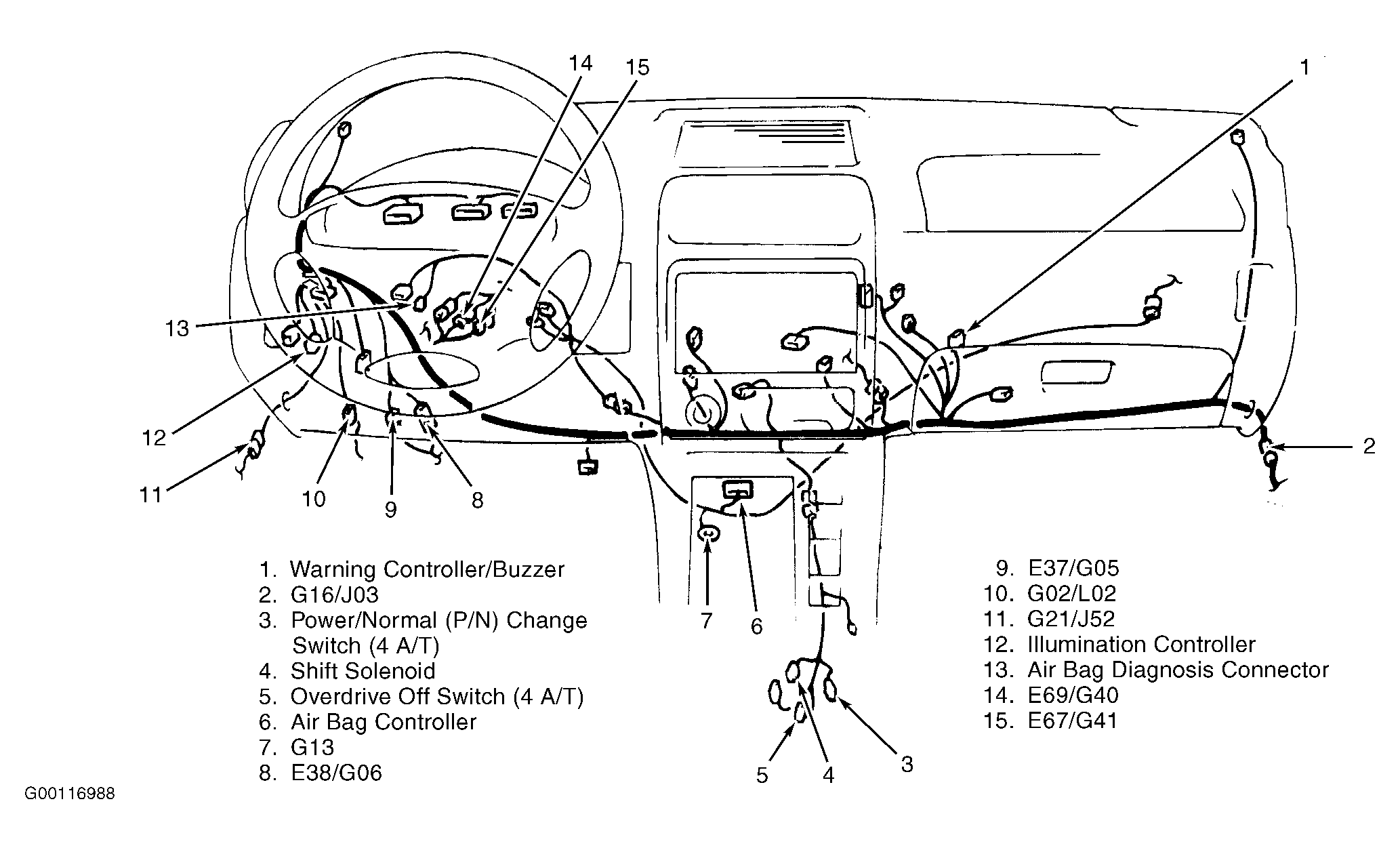

Fig 3: Dash

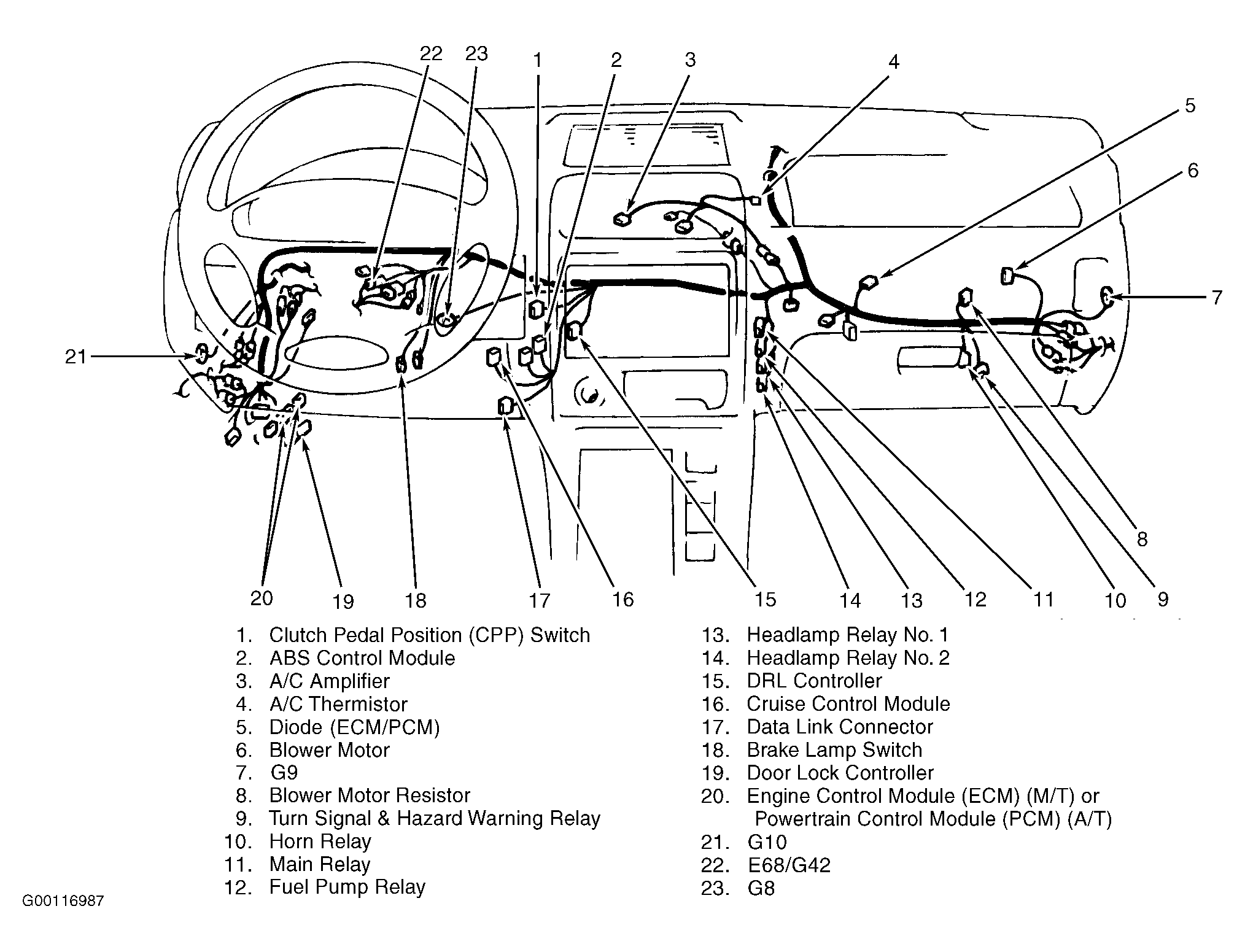

Fig 4: Dash
