Belt Routing: Swift

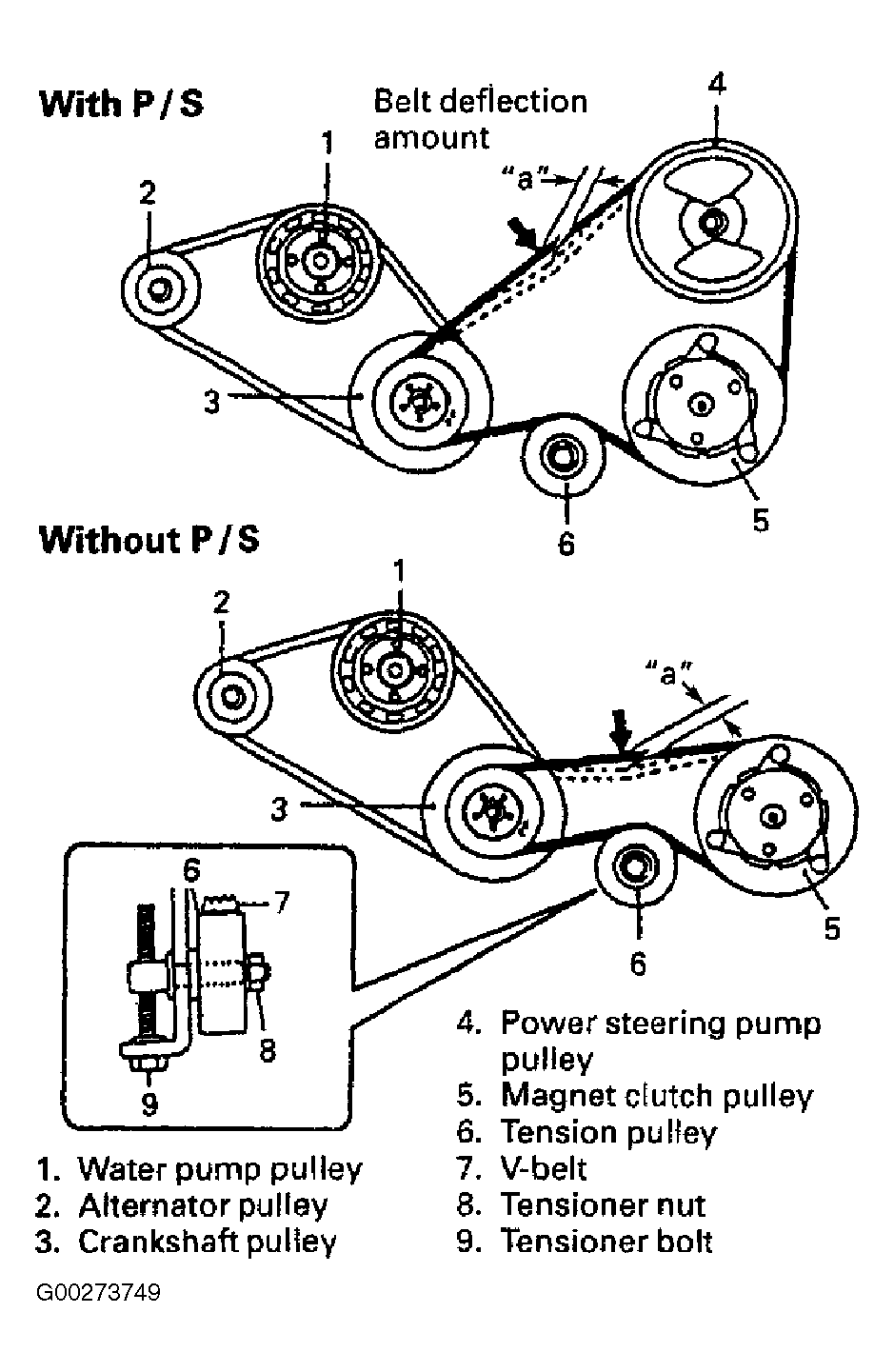

Fig 1: A/C Belt Routing (Swift)
G00273749Courtesy of SUZUKI OF AMERICA CORP.

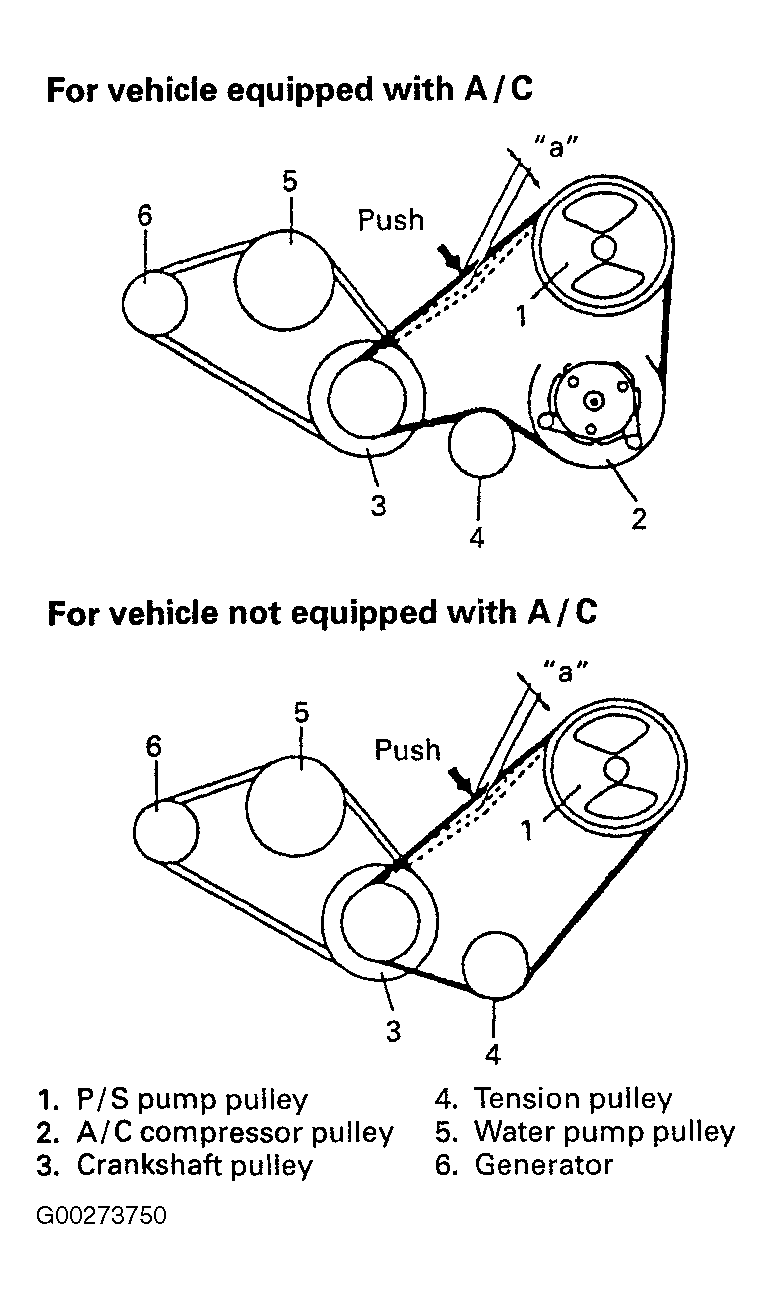

Fig 2: Power Steering Belt Routing (Swift)
G00273750Courtesy of SUBARU OF AMERICA, INC.

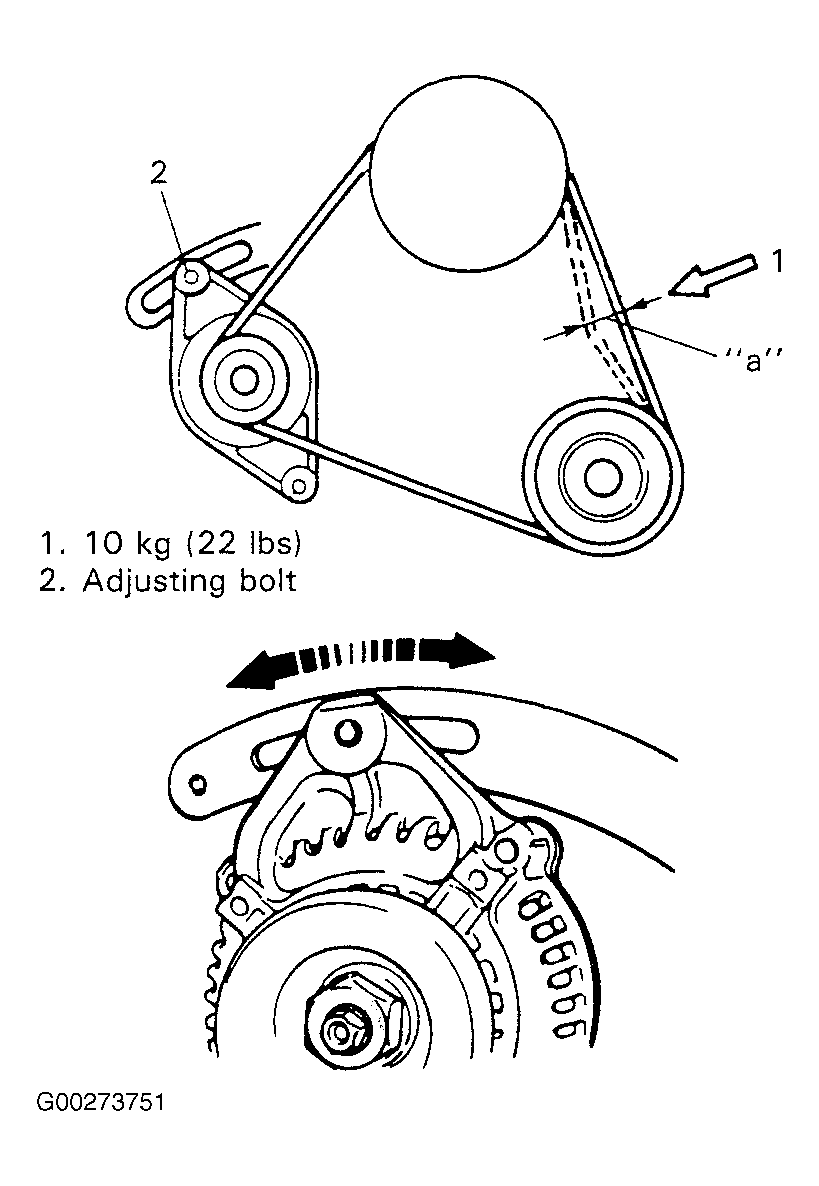

Fig 3: Water Pump Belt Routing (Swift)
G00273751Courtesy of SUZUKI OF AMERICA CORP.
