Mode 6 - 1999-2007: 2005

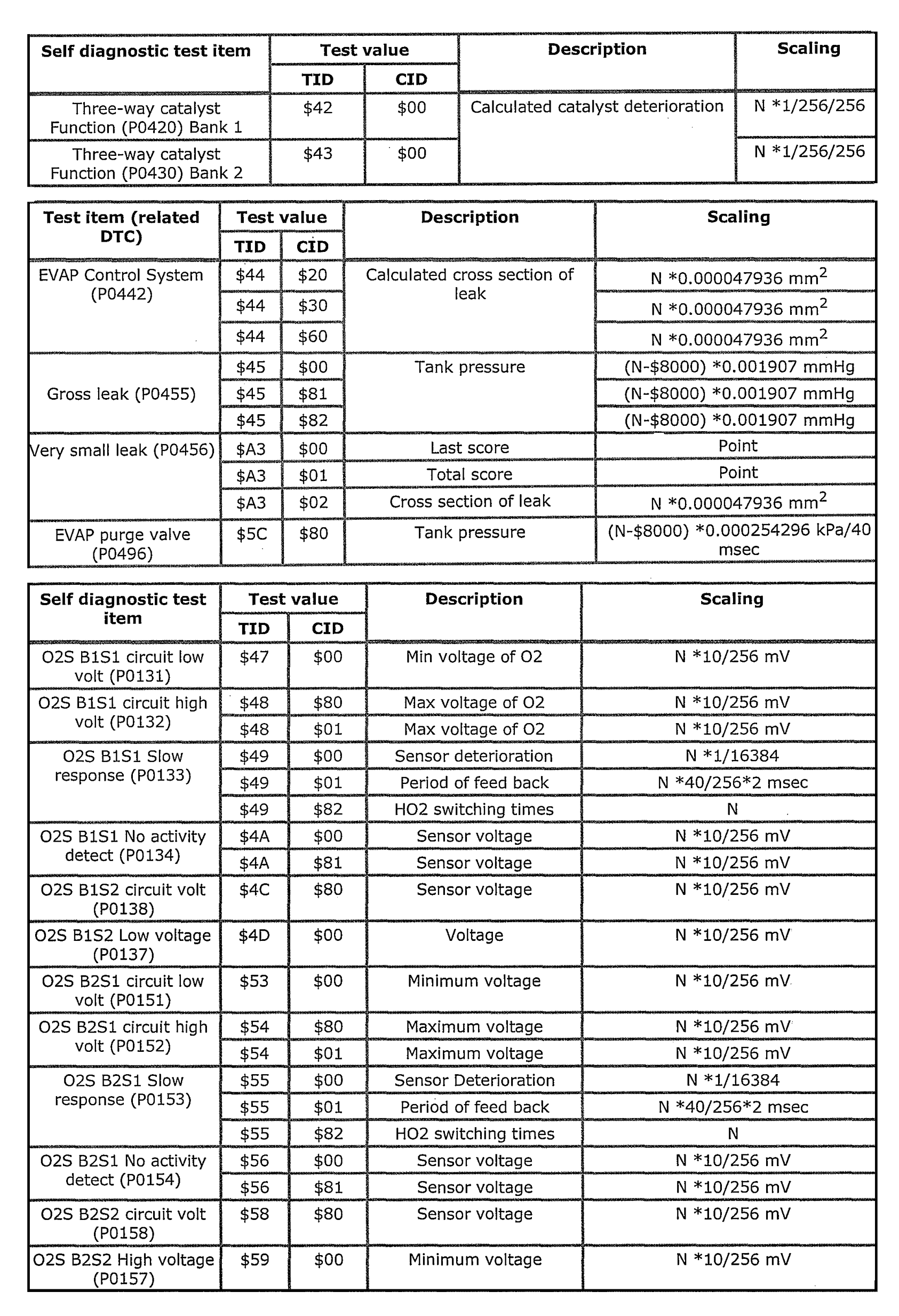

Fig 1: Mode $06 Data For '05 Grand Vitara (1 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.

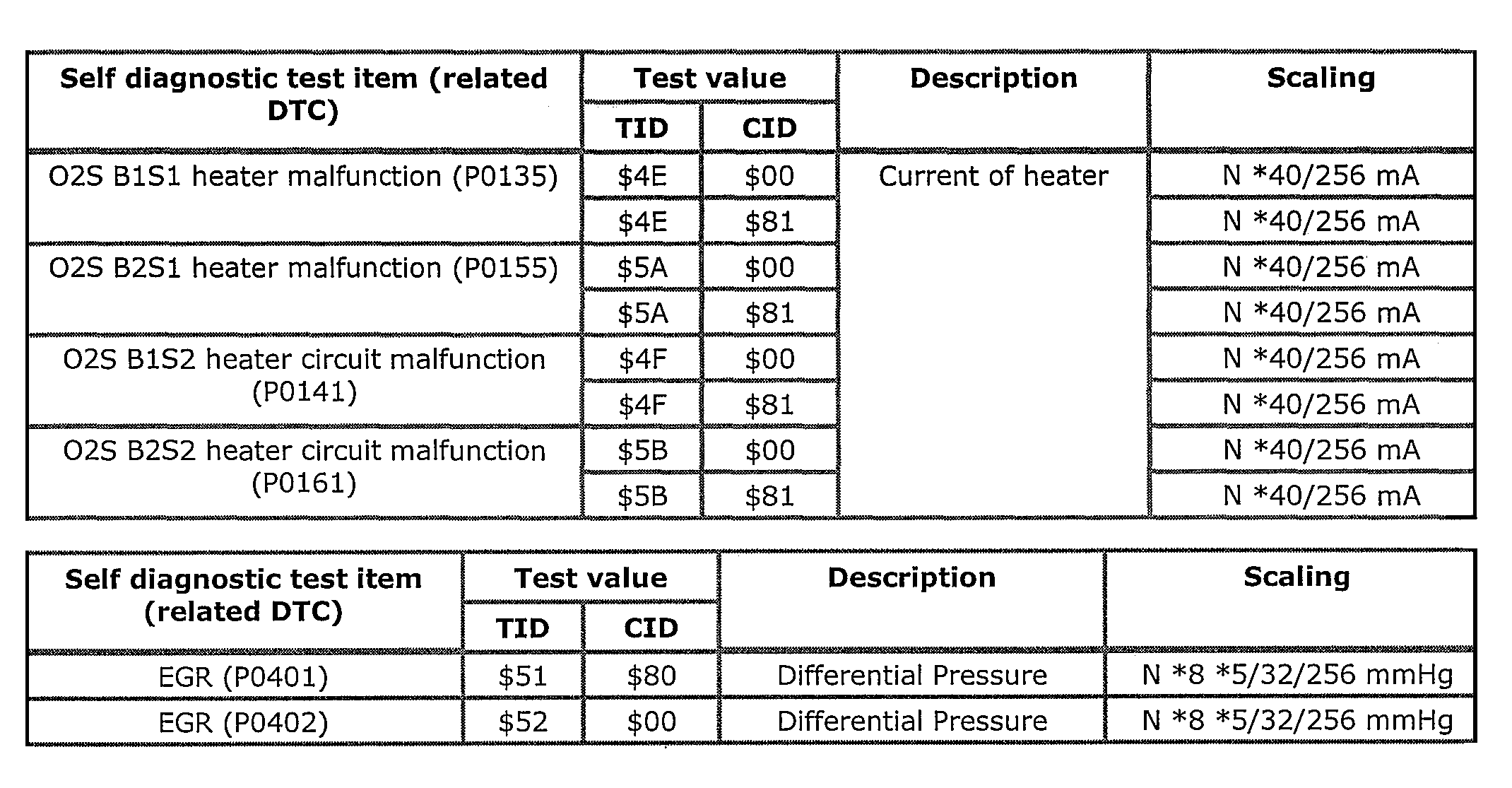

Fig 2: Mode $06 Data For '05 Grand Vitara (2 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
