Mode 6 - 1999-2007: 2007

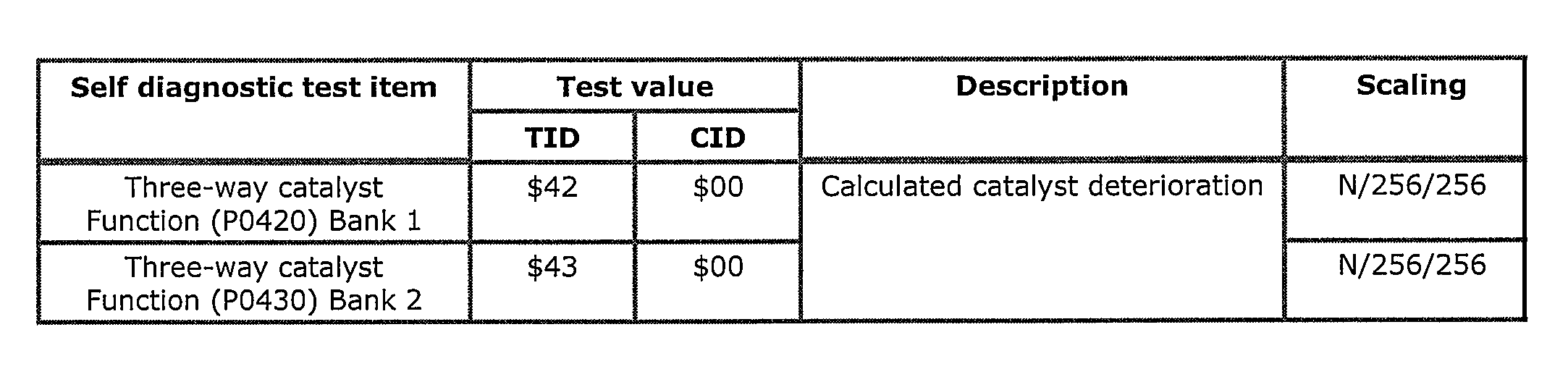

Fig 1: Mode $06 Data For '07 Grand Vitara (1 Of 3)
G00453043Courtesy of SUZUKI OF AMERICA CORP.

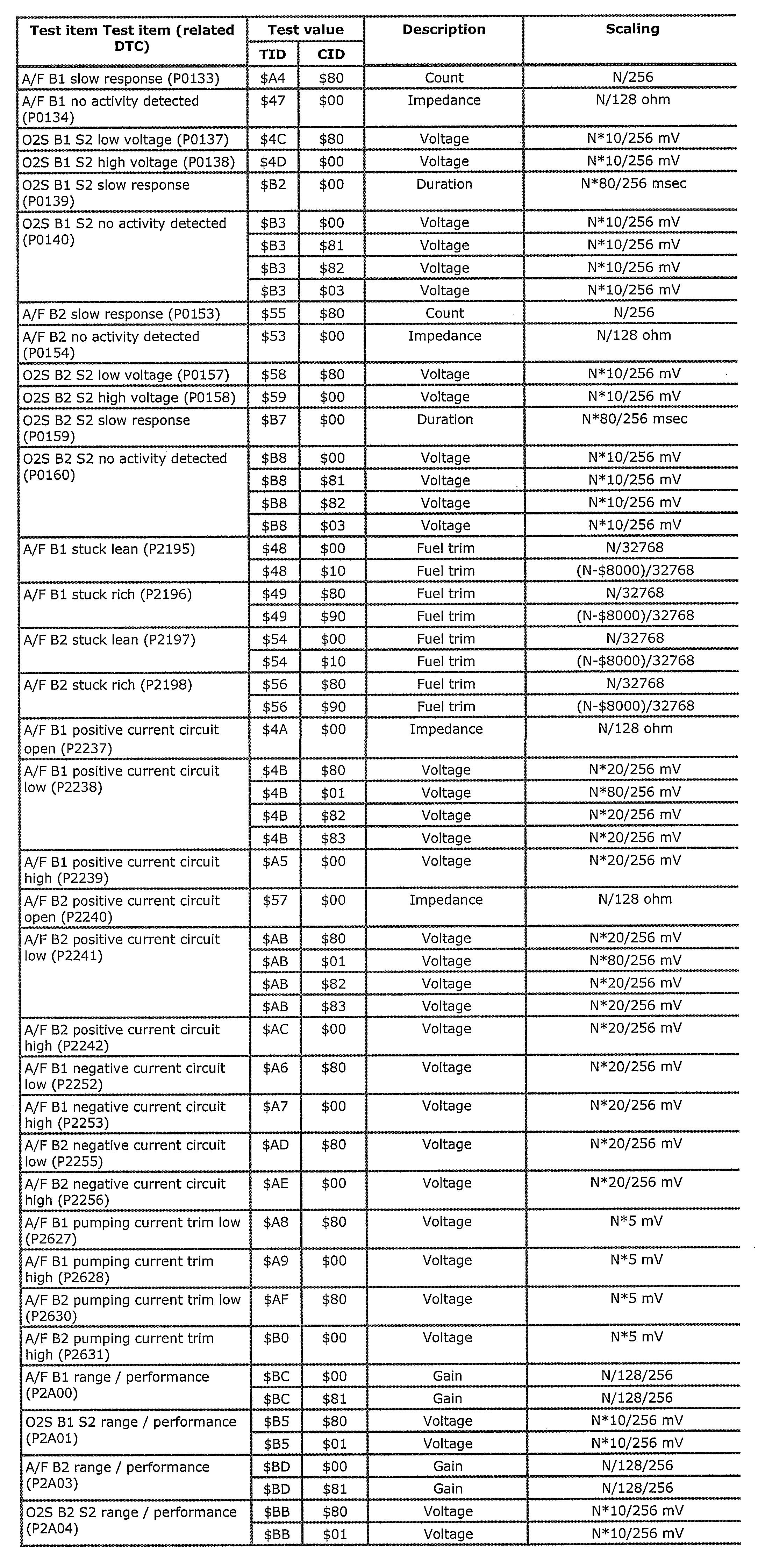

Fig 2: Mode $06 Data For '07 Grand Vitara (2 Of 3)
G00453044Courtesy of SUZUKI OF AMERICA CORP.

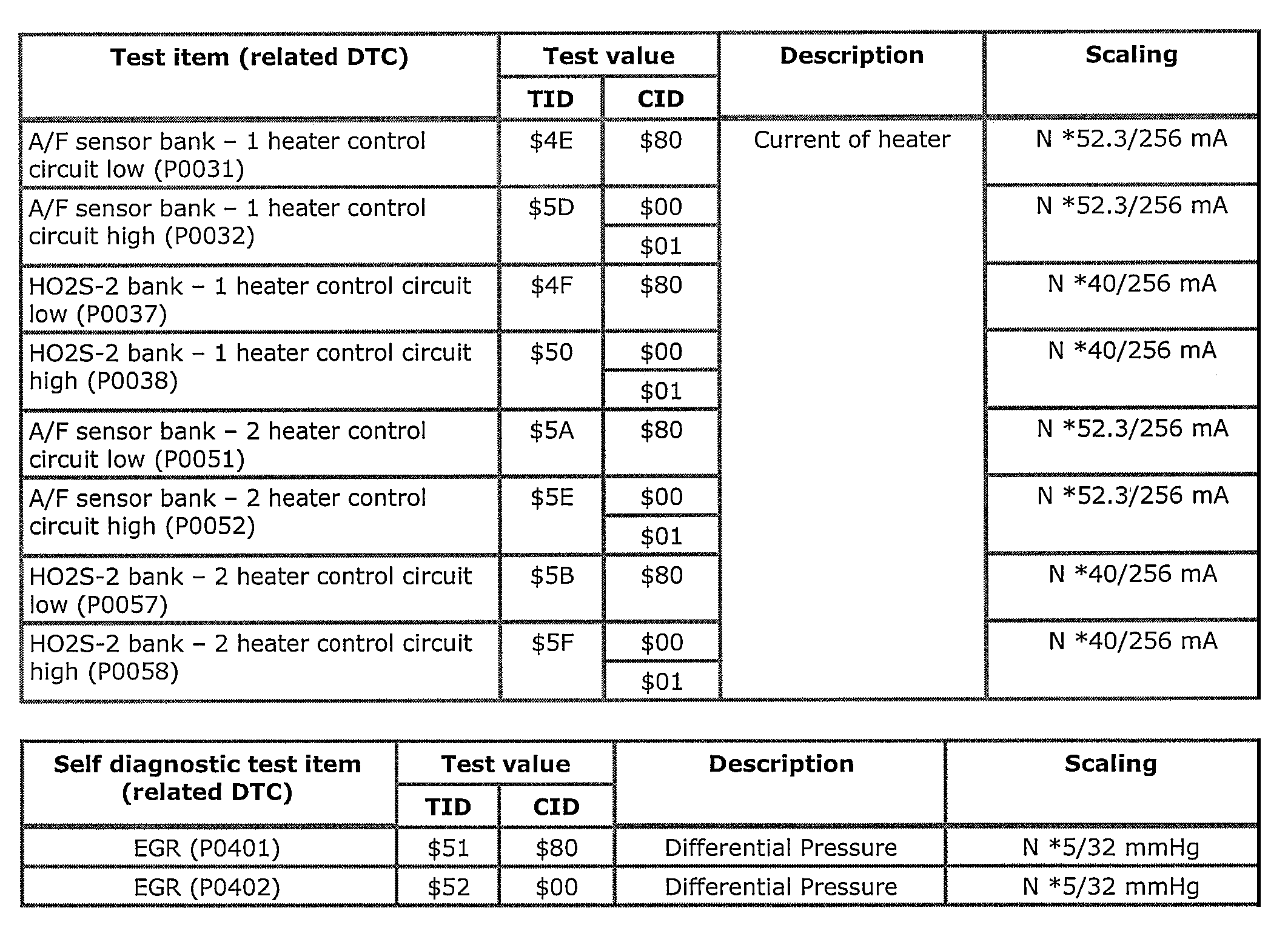

Fig 3: Mode $06 Data For '07 Grand Vitara (3 Of 3)
G00453045Courtesy of SUZUKI OF AMERICA CORP.
