Driver's Under-Dash Fuse/Relay Box

NOTE: Driver's under-dash fuse/relay box is located under driver's side of instrument panel. See Fig 1.

Fig 1: Locating Driver's Under-Dash Fuse/Relay Box

Courtesy of SUZUKI OF AMERICA CORP.

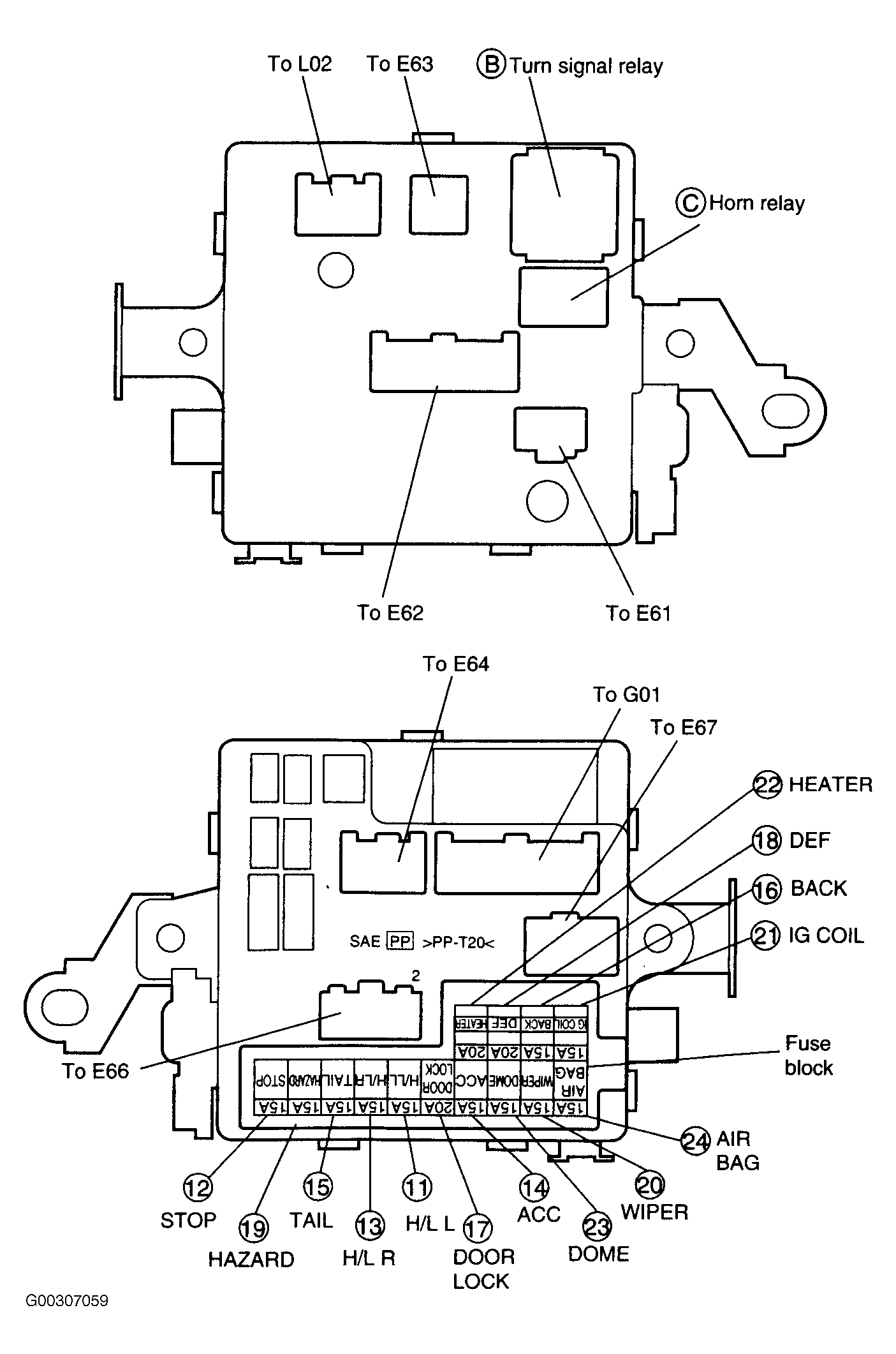

Fig 2: Identifying Driver's Under-Dash Fuse/Relay Box

Courtesy of SUZUKI OF AMERICA CORP.
