Main Fuse Box (Engine Compartment)

For main fuse identification, refer to illustration. See Fig 1 or Fig 2 .

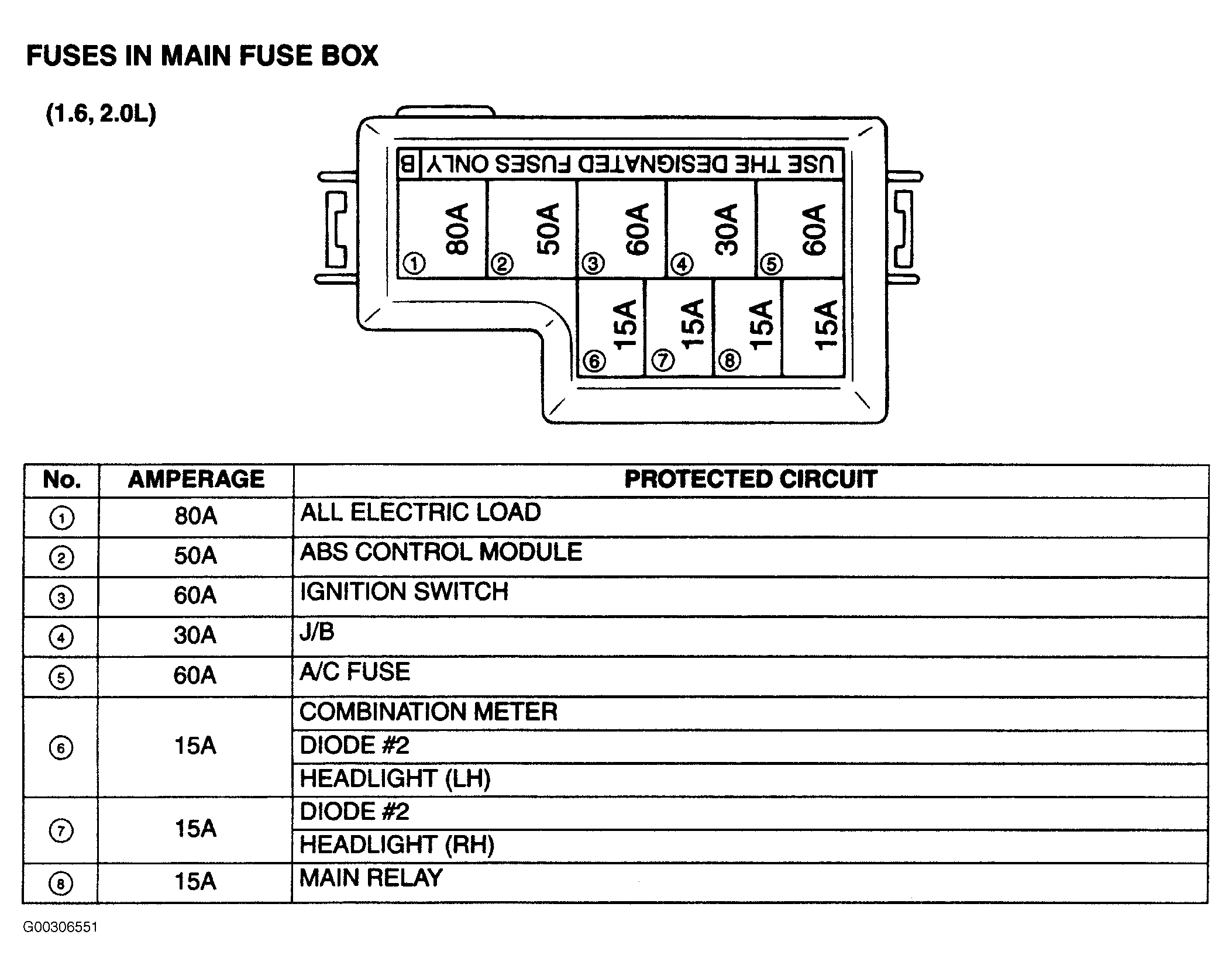

Fig 1: Identifying Engine Compartment Fuse/Relay Box Components (4-Cylinder)
G00306551Courtesy of SUZUKI OF AMERICA CORP.

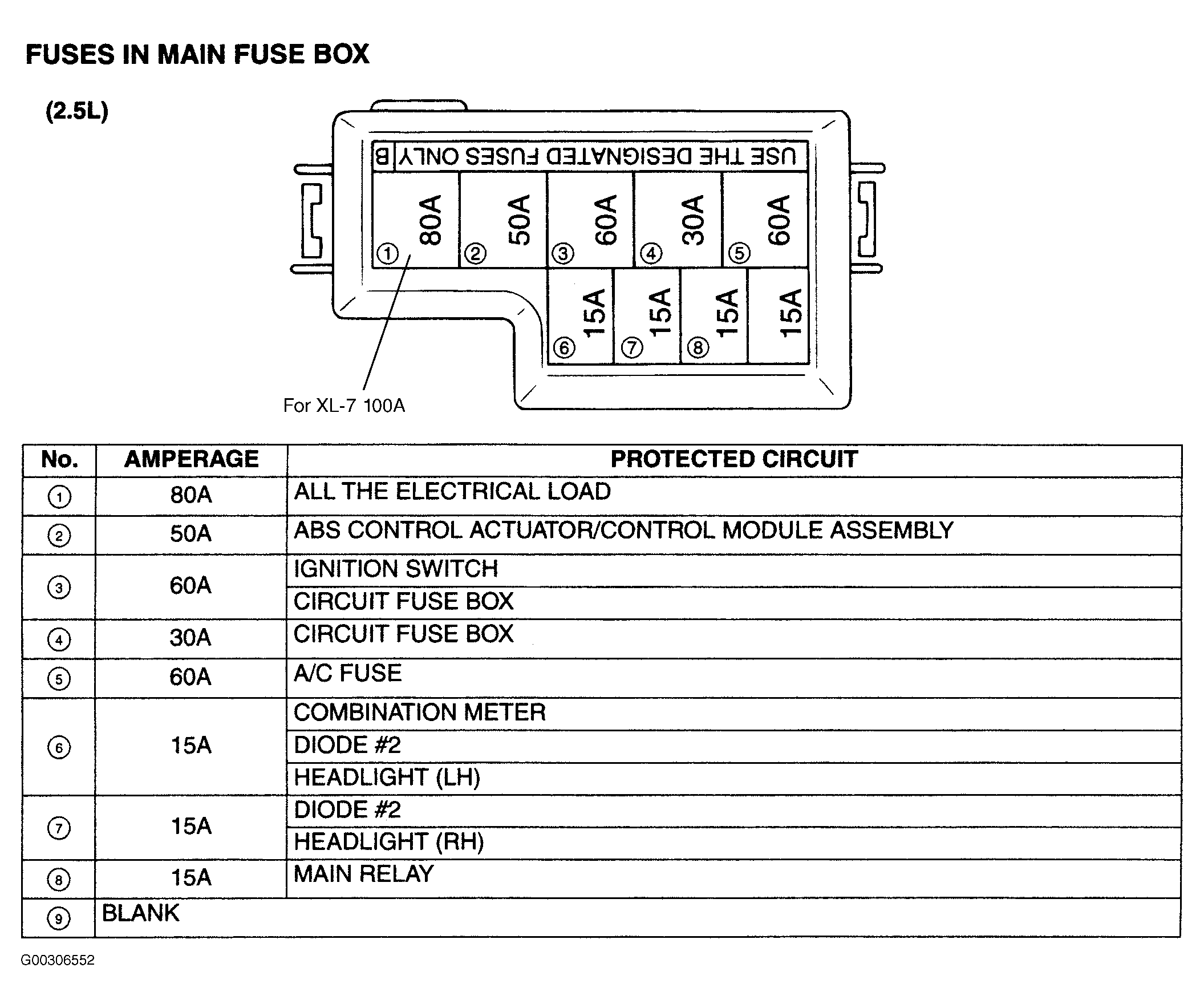

Fig 2: Identifying Engine Compartment Fuse/Relay Box Components (V-6)
G00306552Courtesy of SUZUKI OF AMERICA CORP.
