Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Driver's Door Key Switch | In Driver's Power Door Lock Actuator |
| Hazard Warning Switch | Center Of Instrument Panel, Above Panel Vents |

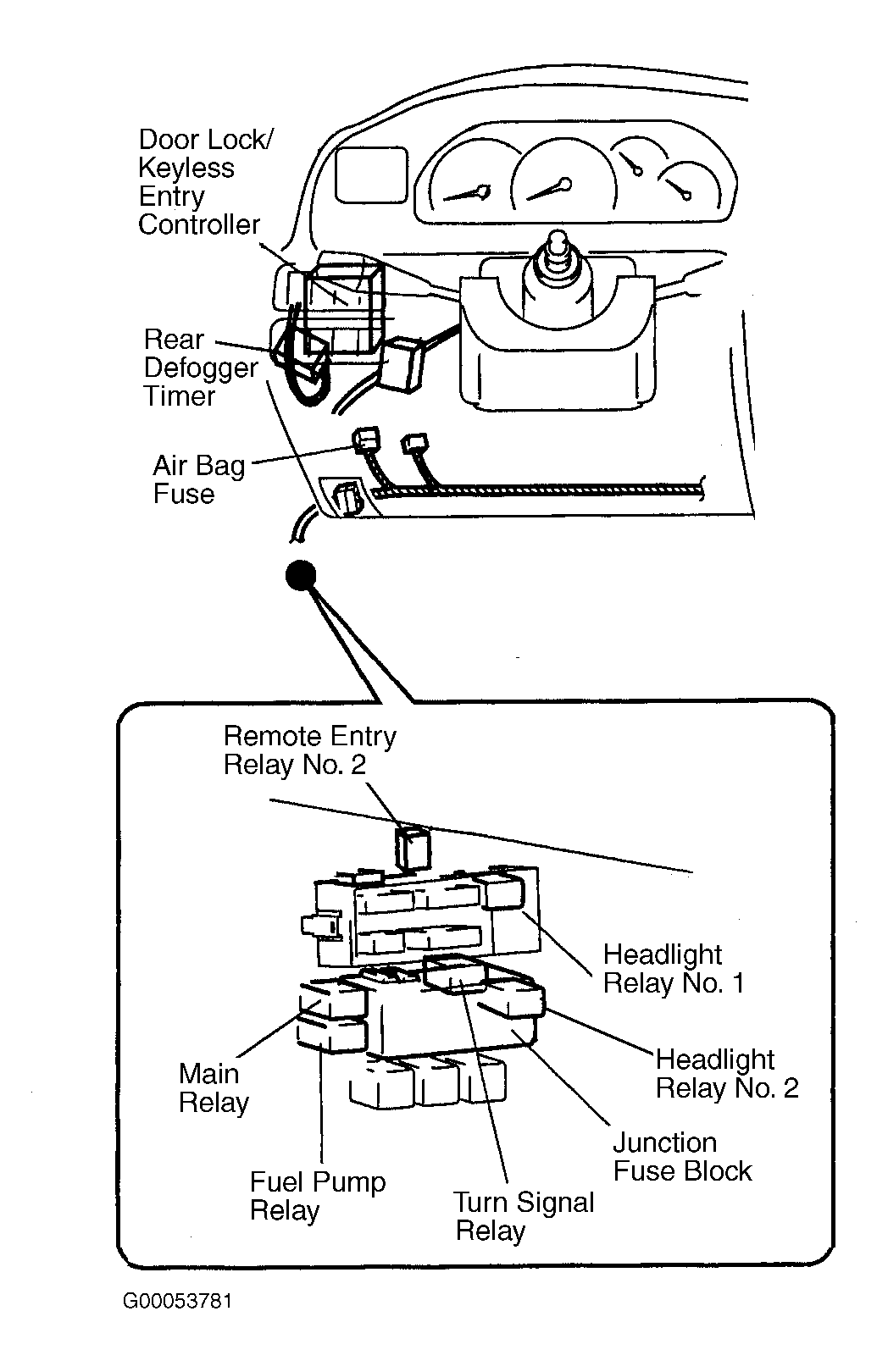

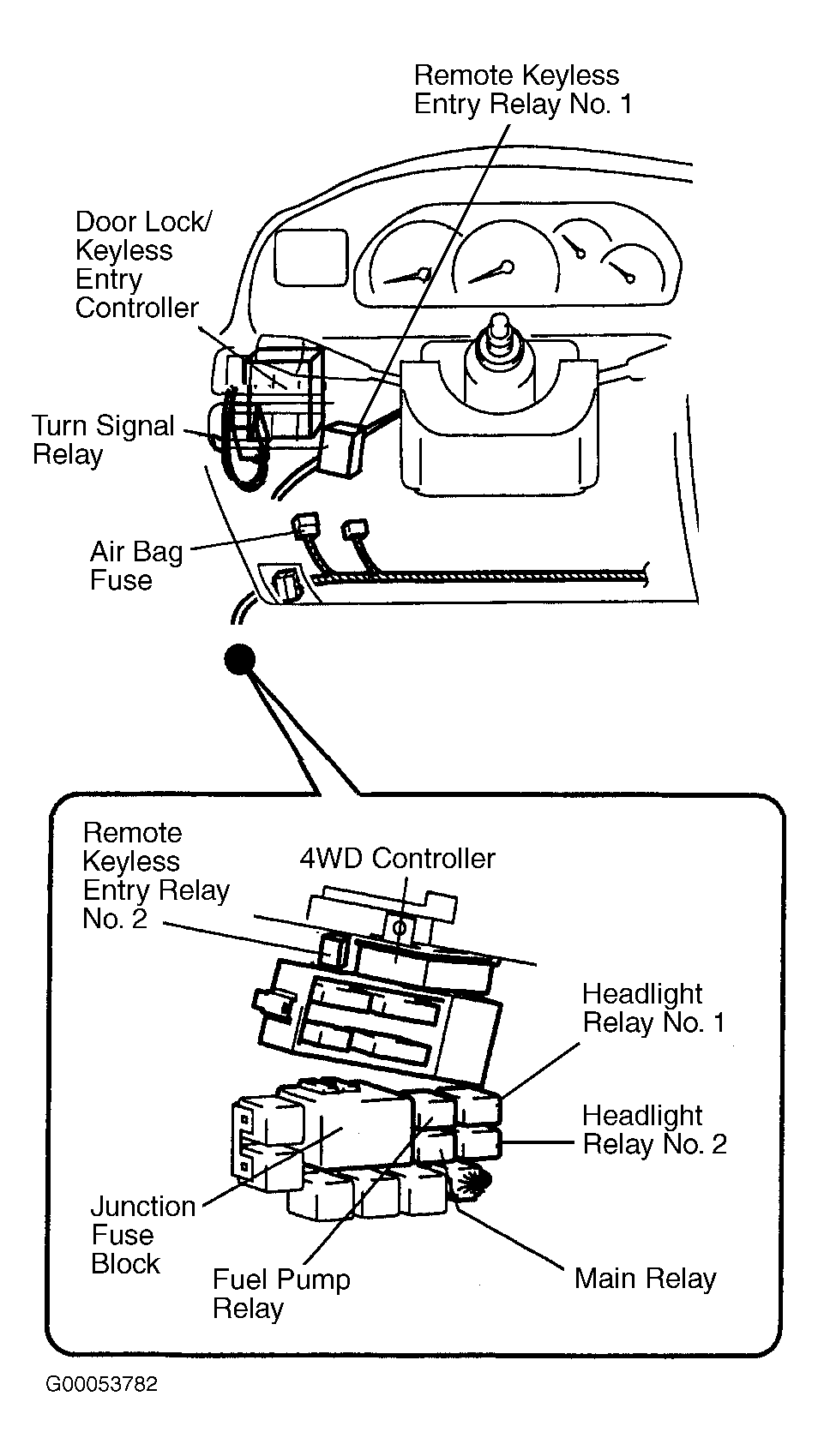

| Junction/Fuse Block | Behind Dash, Left Of Steering Column |
| Keyless Entry Relay No. 1 | Behind Driver's Kick Panel |
| Keyless Entry Relay No. 2 | Above Junction/Fuse Block |

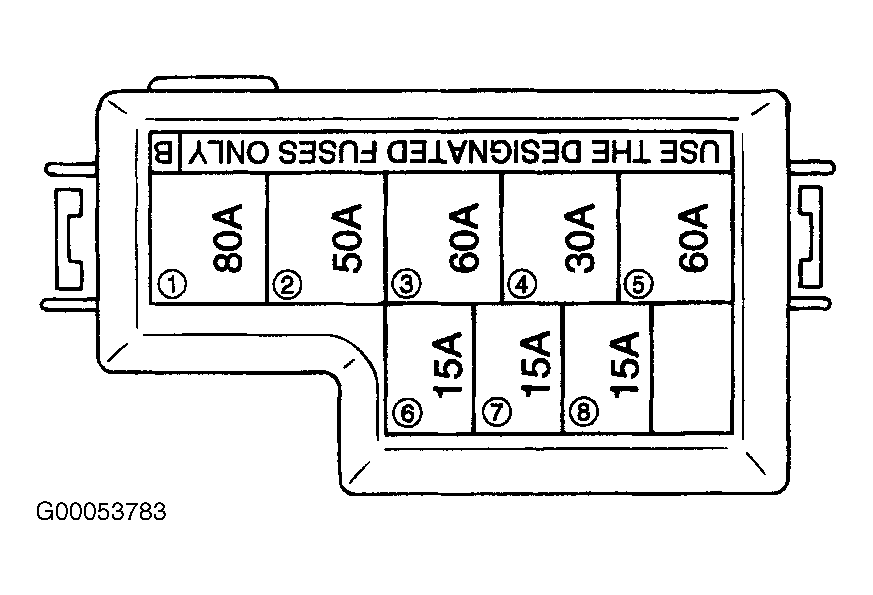

| Main Fuse Block | Driver's Side Fender Apron, In Engine Compartment |
| Power Door Lock & Remote Keyless Entry (PDL/RKE) Controller | Behind/Above Driver's Kick Panel |
| PDL/RKE Controller | Behind/Above Driver's Kick Panel |
| Power Door Lock Switch | In Switch Panel At Driver's Door Armrest |
| Turn Signal/Hazard Relay | Junction/Fuse Block |
