Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

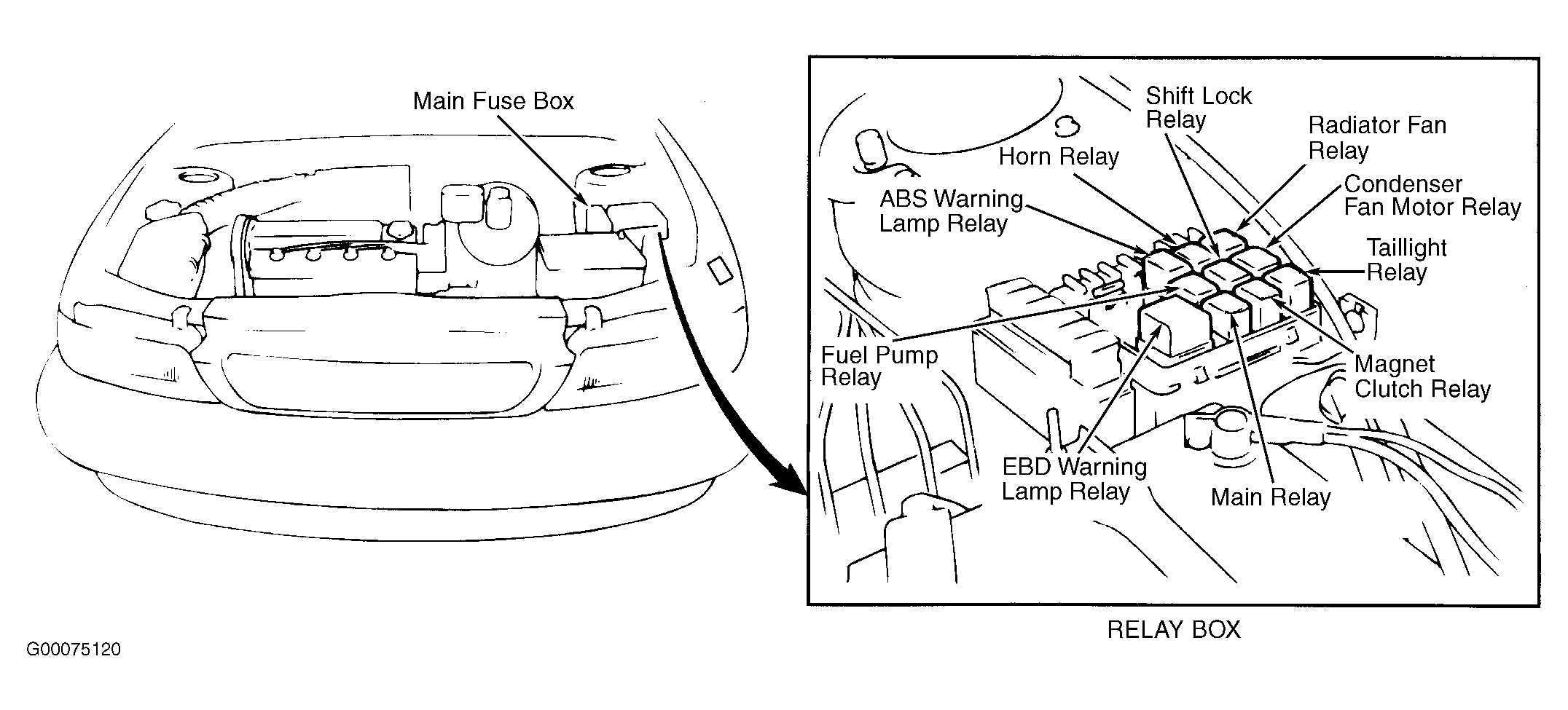

Fig 1: Main Fuse Box & Relay Box

Courtesy of SUZUKI OF AMERICA CORP.

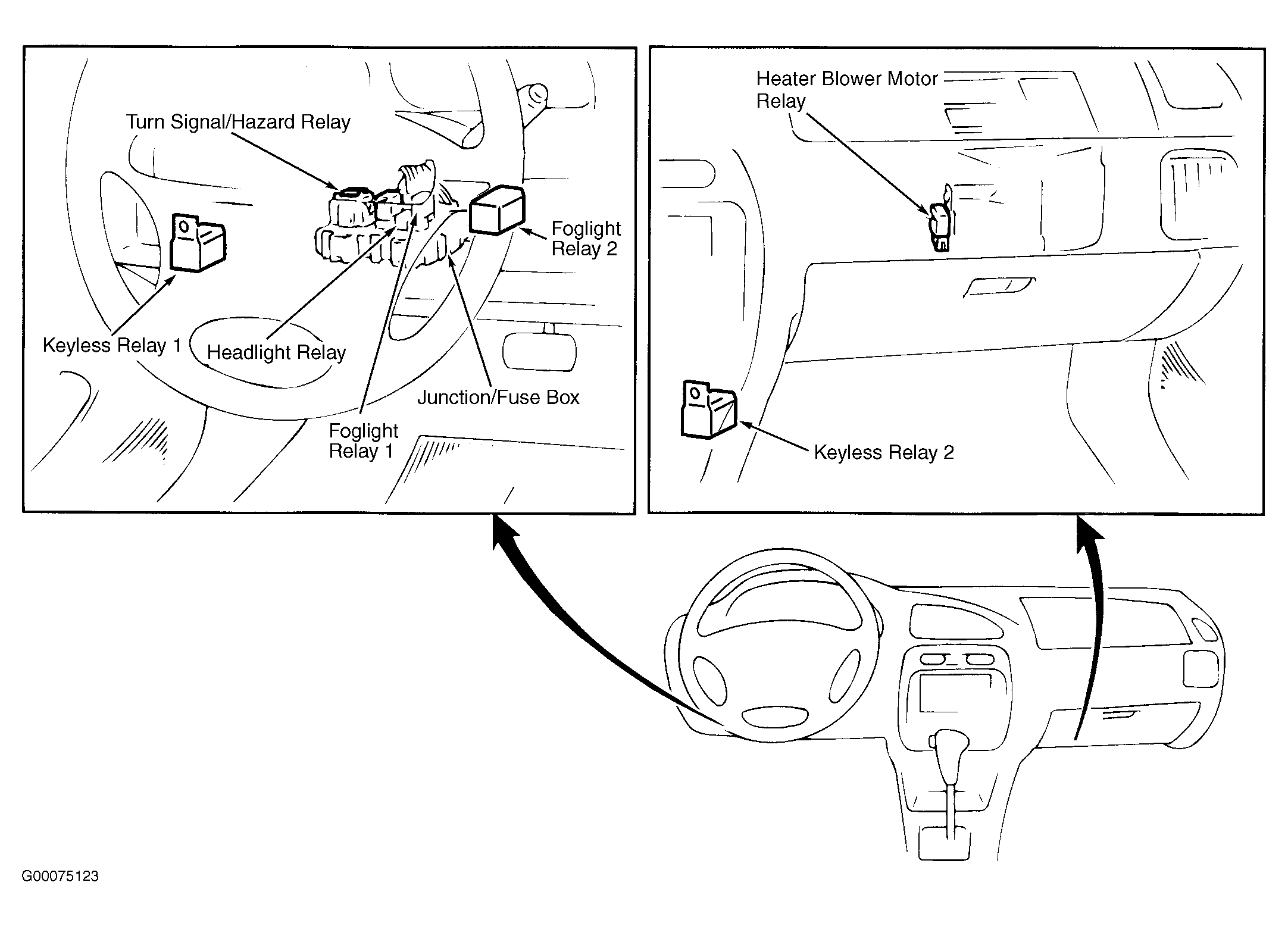

Fig 2: Dash

Courtesy of SUZUKI OF AMERICA CORP.

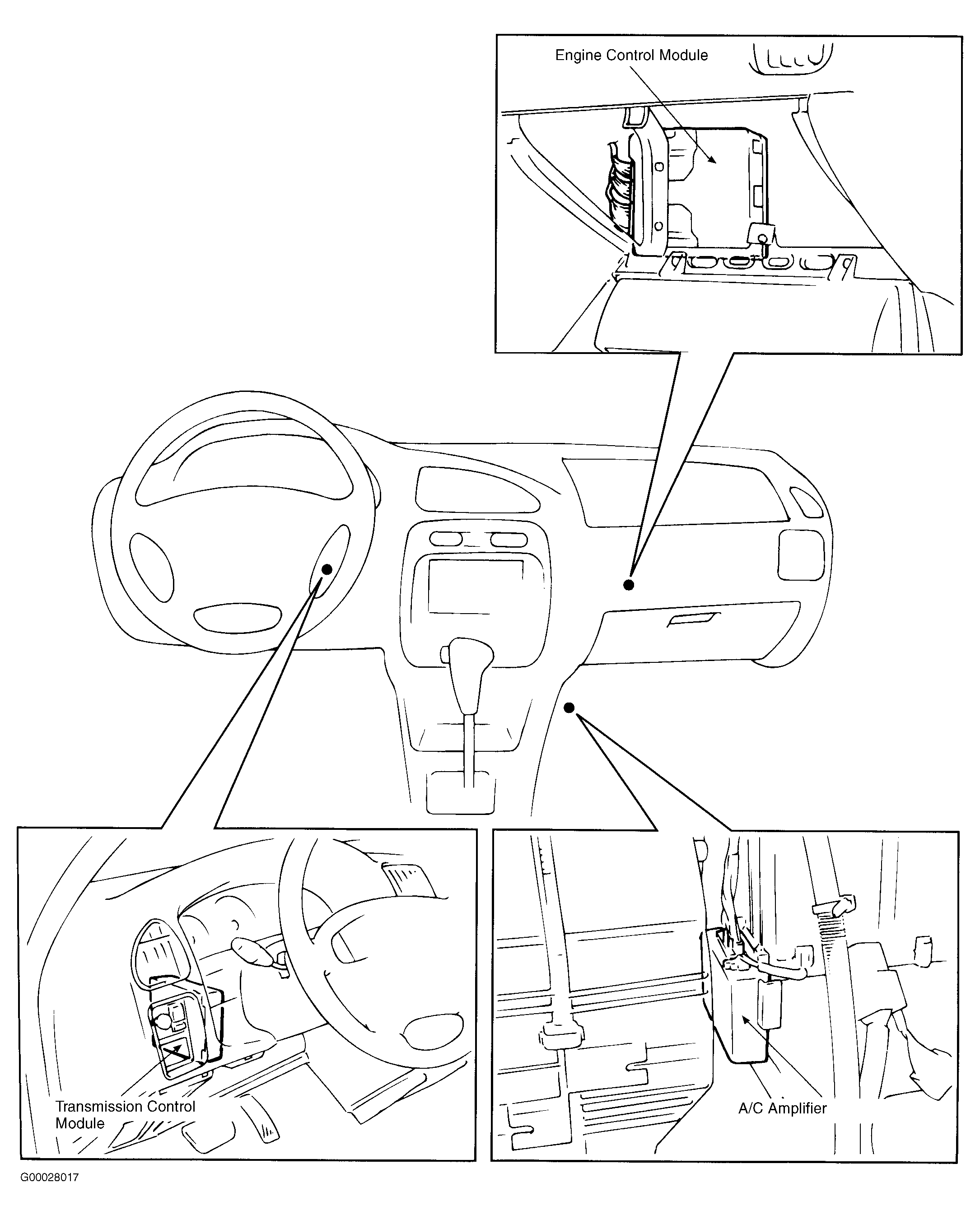

Fig 3: Dash

Courtesy of SUZUKI OF AMERICA CORP.

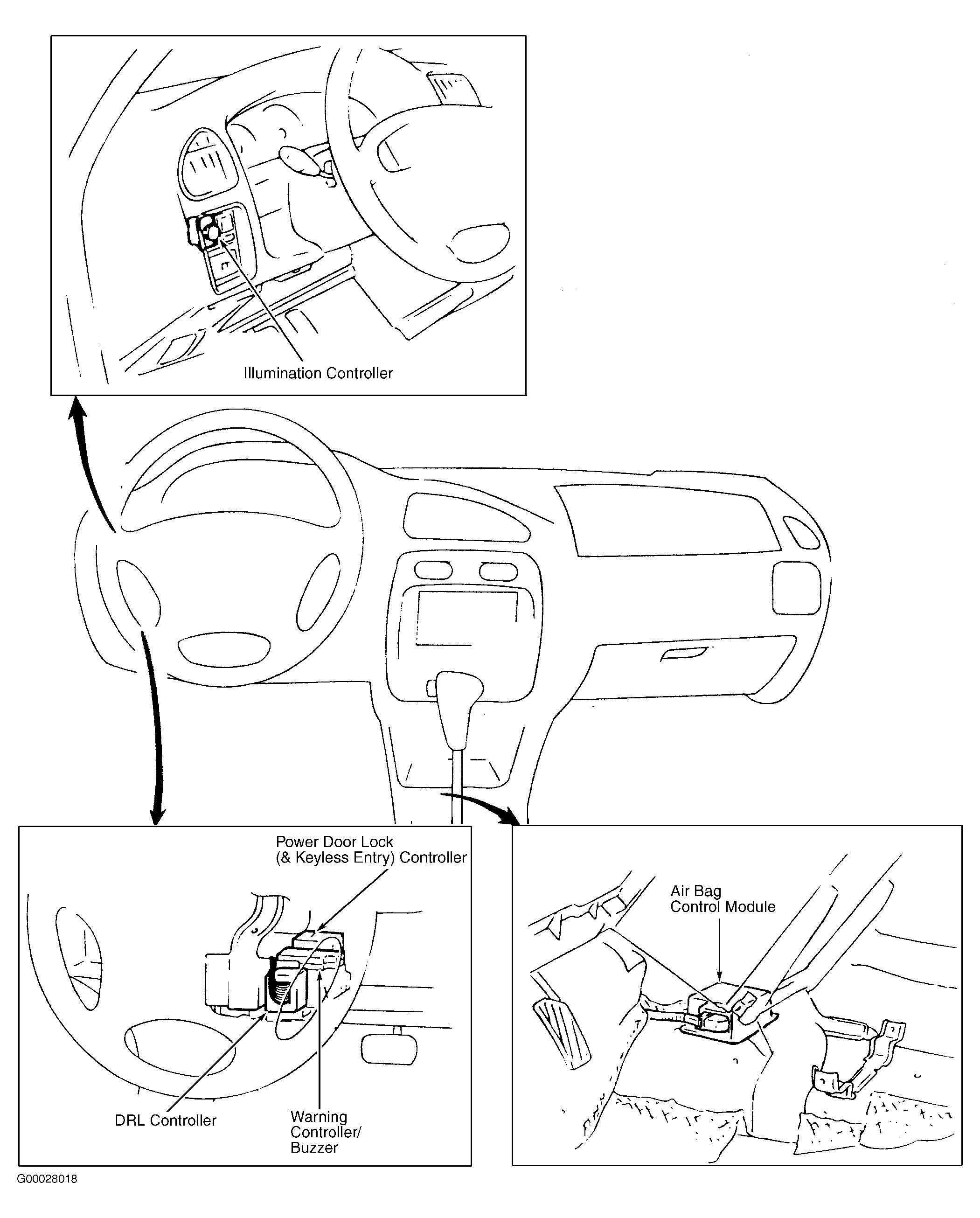

Fig 4: Dash

Courtesy of SUZUKI OF AMERICA CORP.
