Wheel Alignment: Specifications: Specifications: XL-7

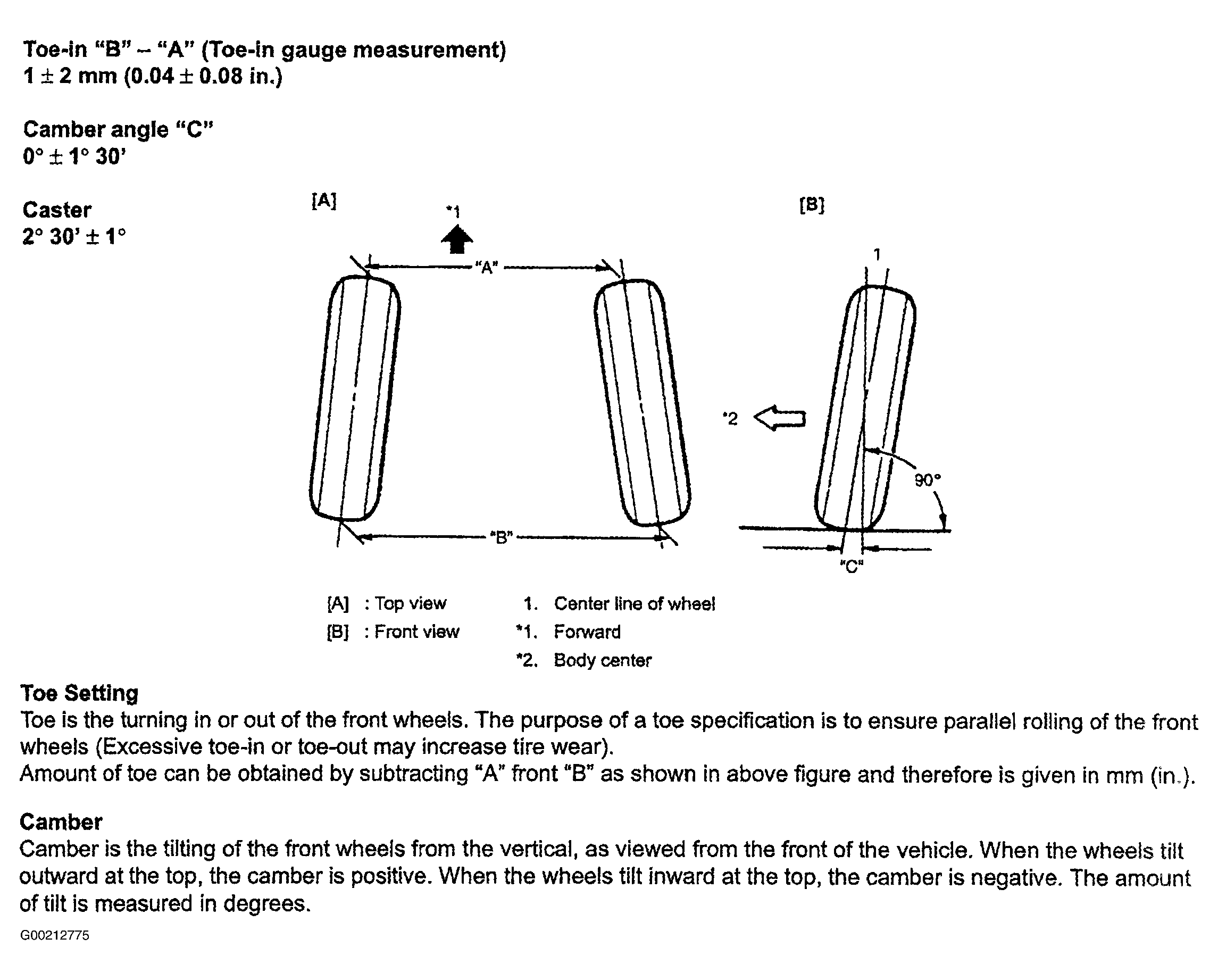

Fig 1: Wheel Alignment Specifications (XL-7)

G00212775

Courtesy of SUZUKI OF AMERICA CORP.
