Mode 6 - 2001-2007
›
2001
Mode 6 - 2001-2007: 2001

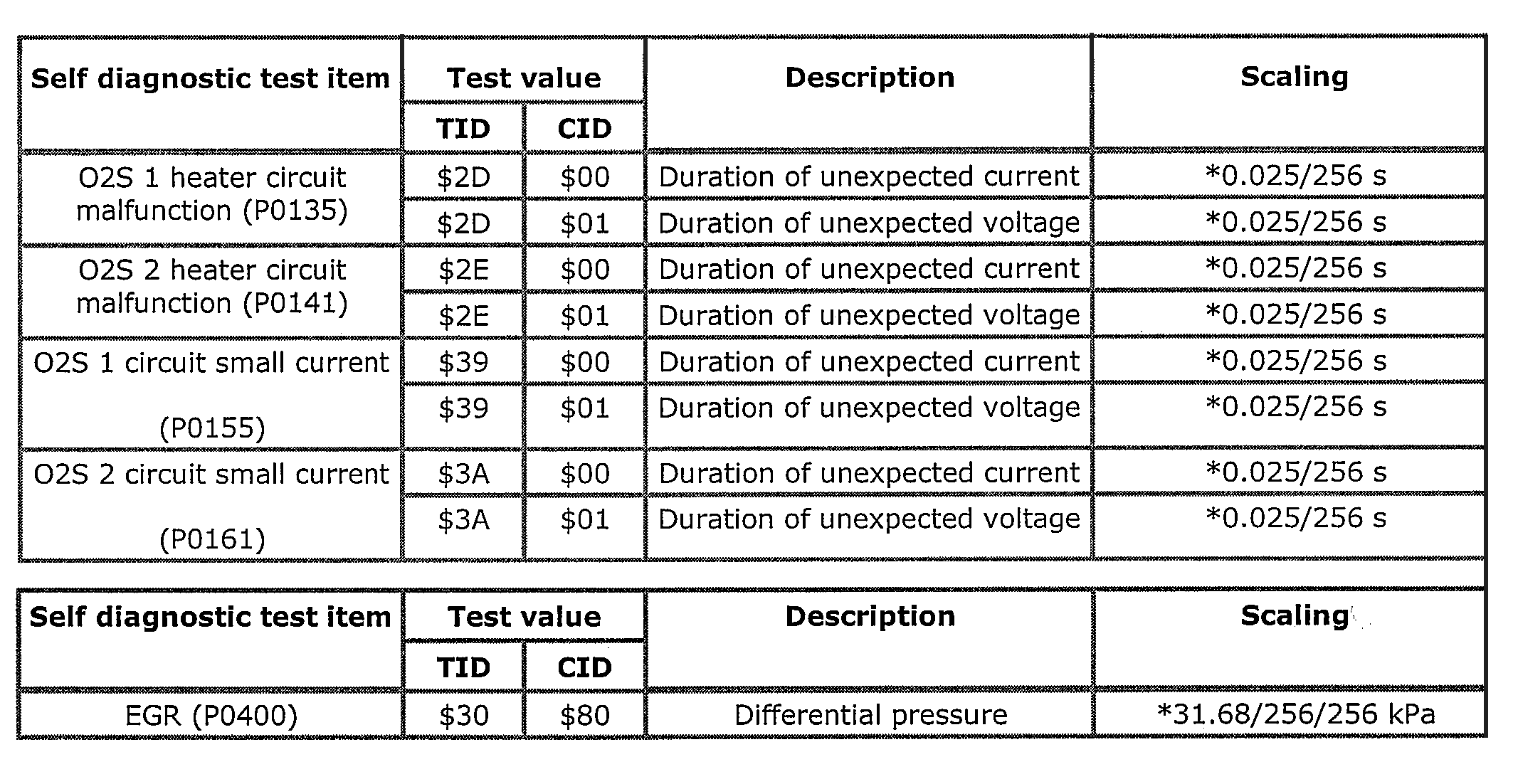

Fig 1: Mode $06 Data For '01 XL-7 (1 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.

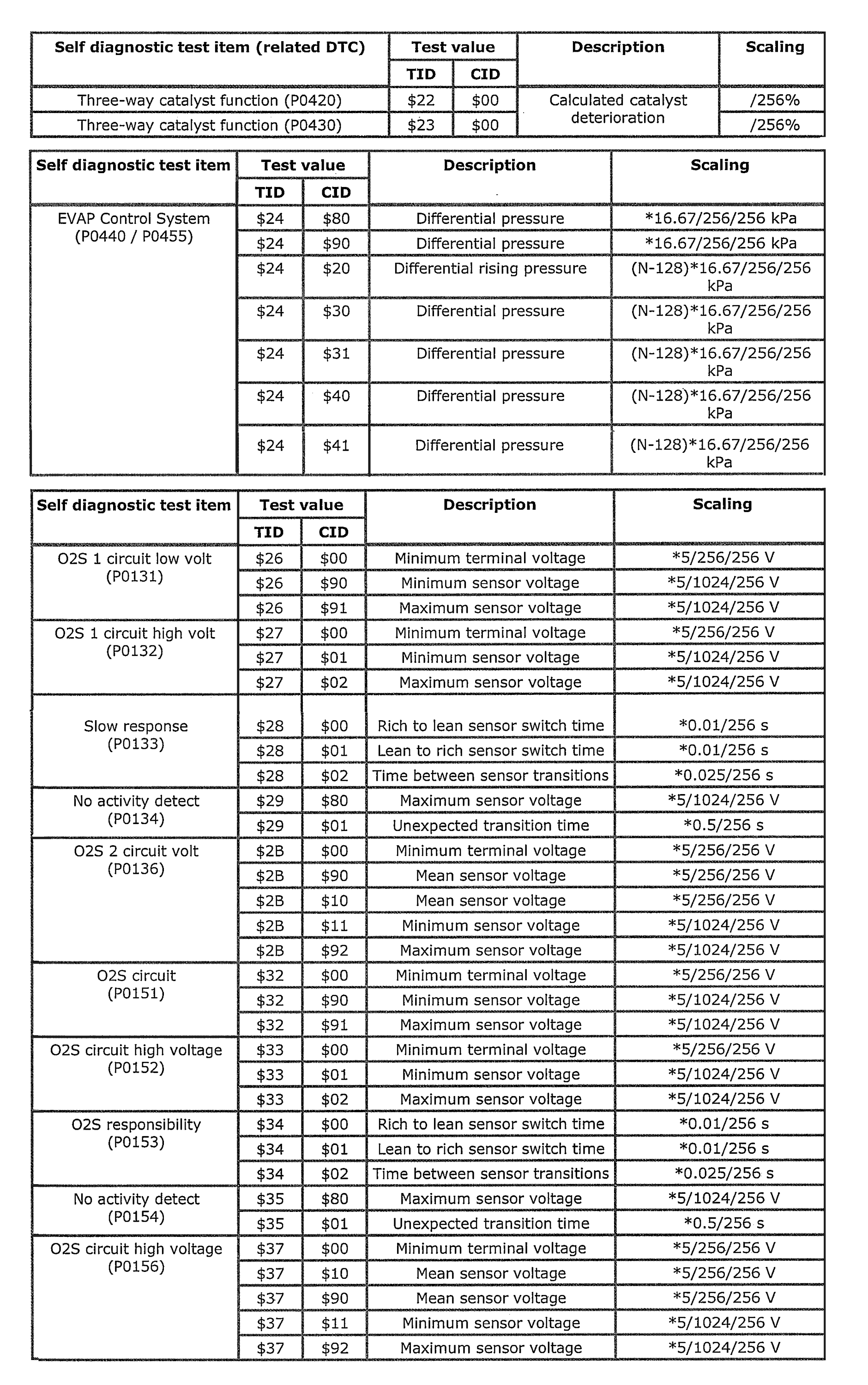

Fig 2: Mode $06 Data For '01 XL-7 (2 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
