4WD Control System Components and Functions

WARNING: This page is about a different car, the 2003 Suzuki XL-7 and 2003 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

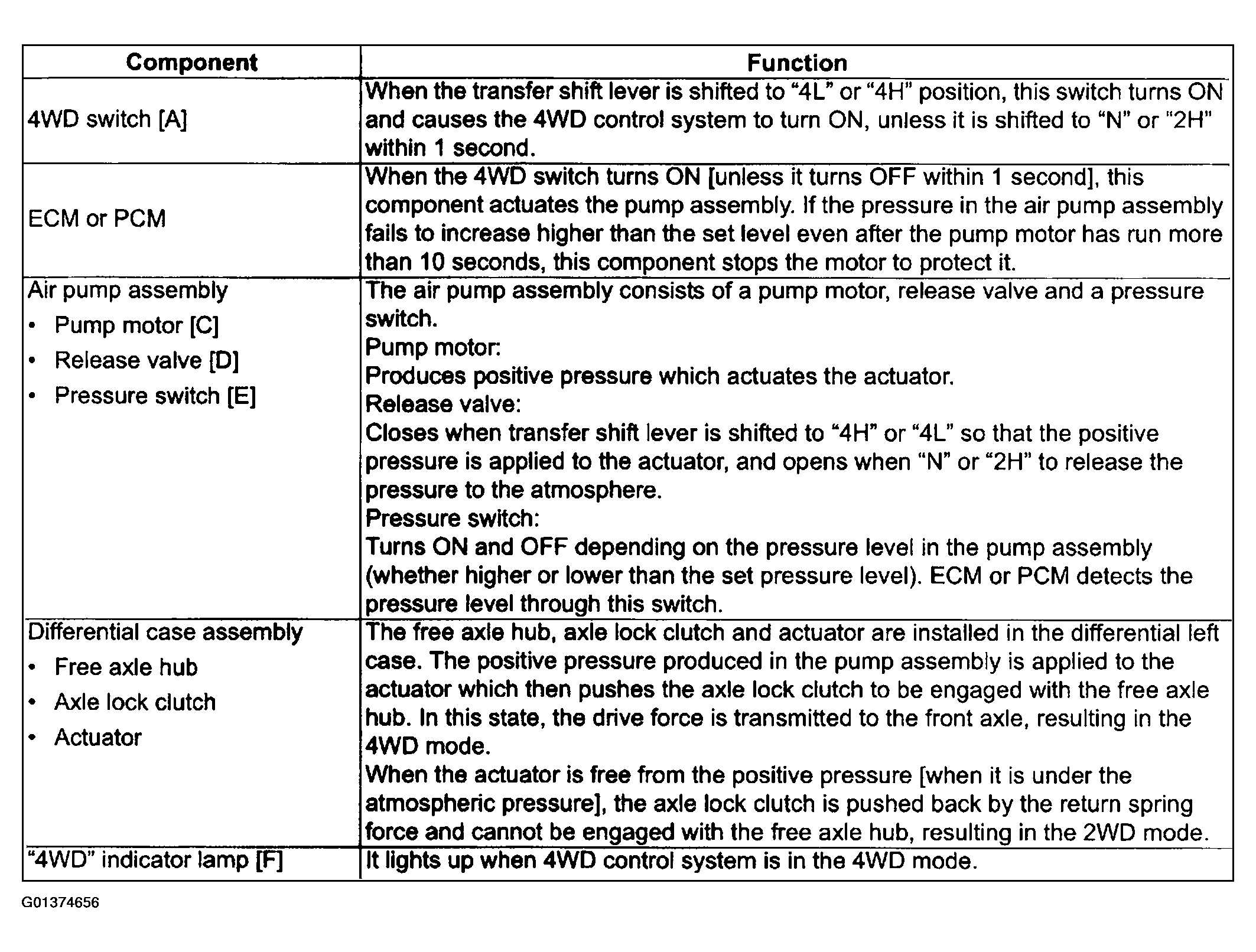

Fig 1: 4WD Control System Components & Functions Chart

Courtesy of SUZUKI OF AMERICA CORP.

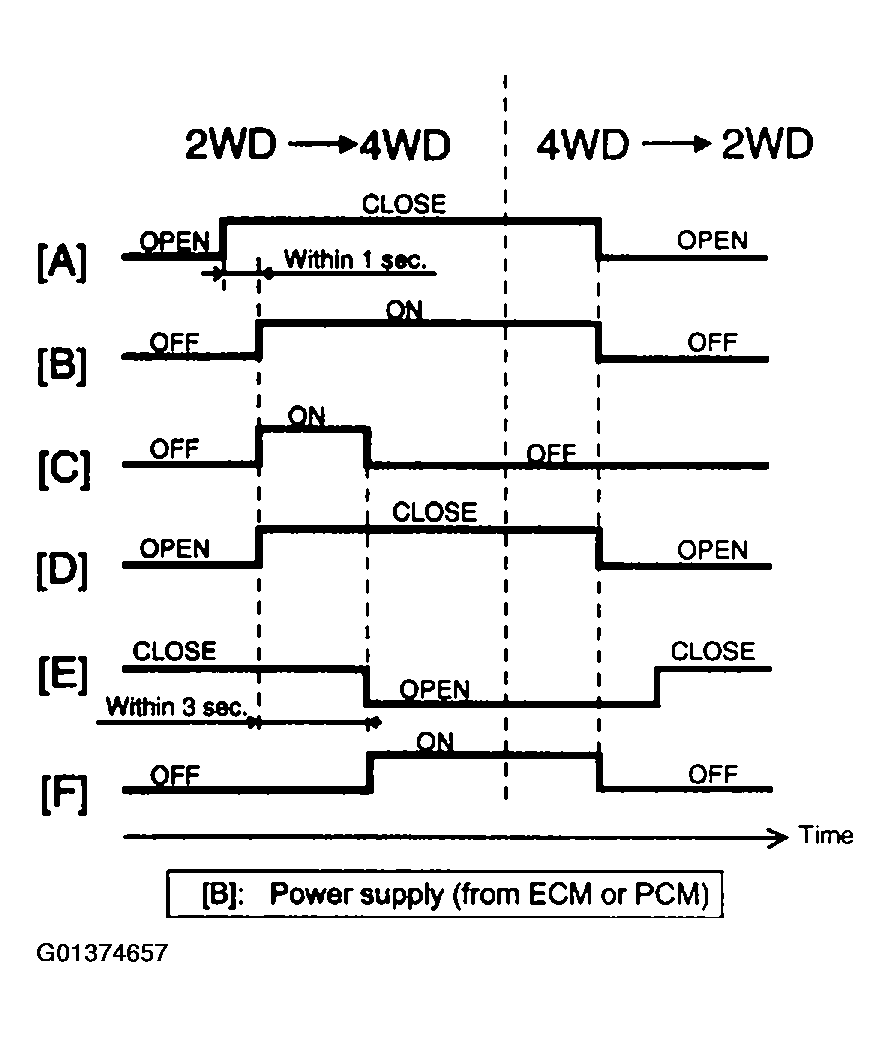

Fig 2: 4WD Control System Functions Chart

Courtesy of SUZUKI OF AMERICA CORP.
