WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

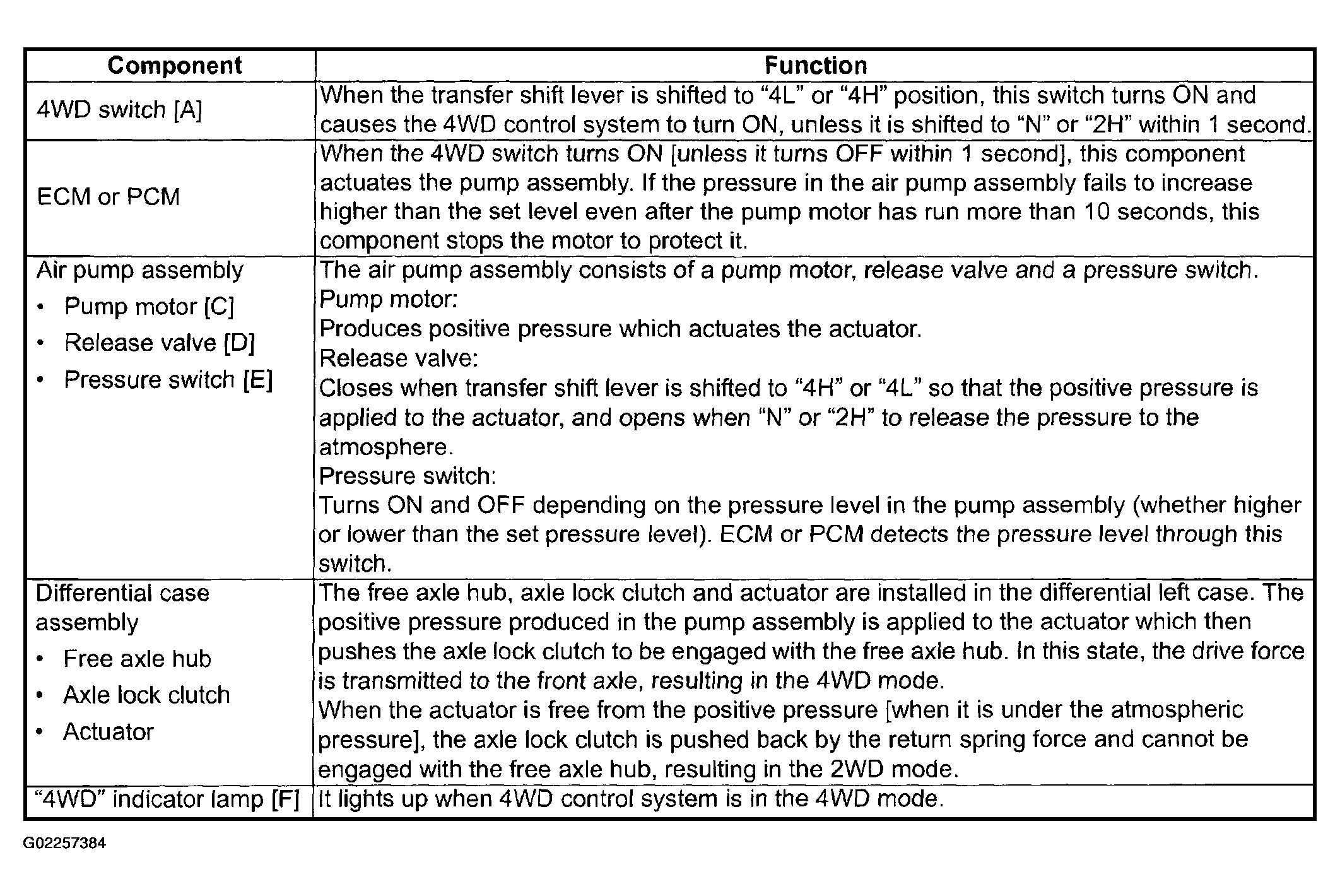

Fig 1: 4WD Control System Components & Functions Chart
Courtesy of SUZUKI OF AMERICA CORP.

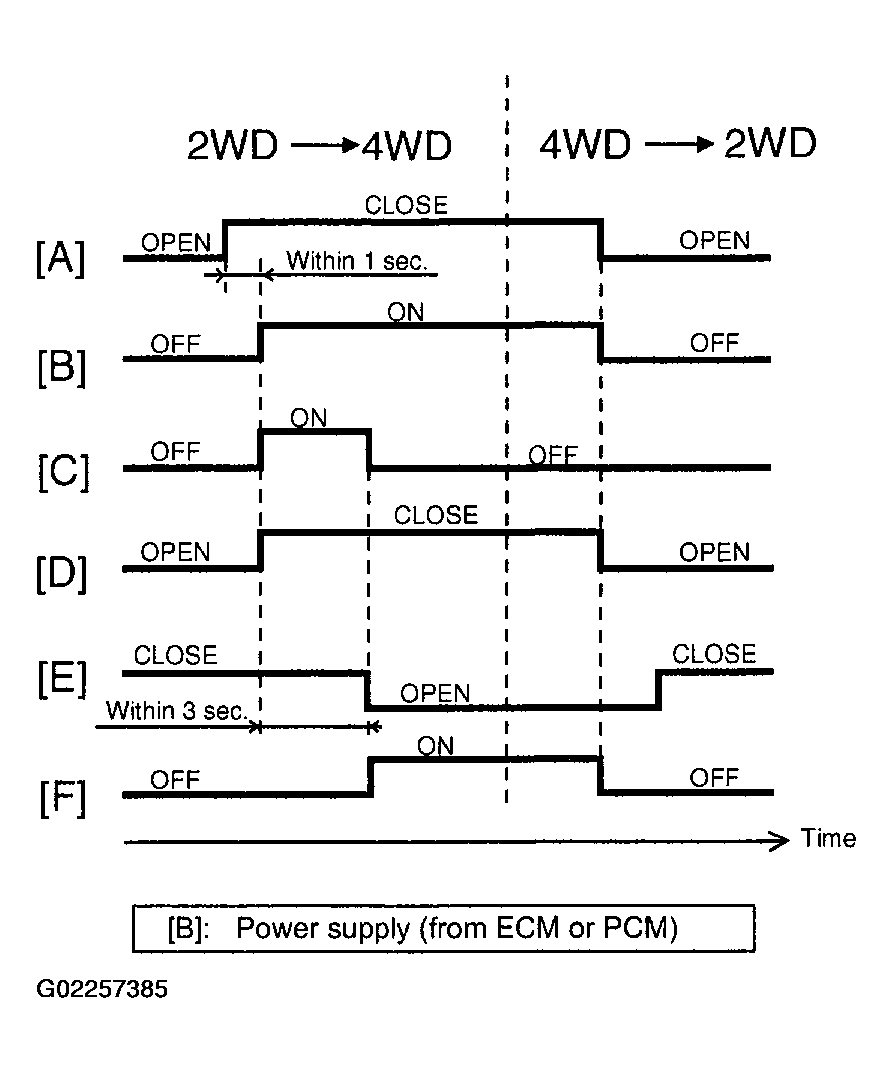

Fig 2: 4WD Control System Components & Functions Pattern
