Section 91 (Automatic A/C Systems)
›
Repair Instructions
›
HVAC Control Module and Its Circuits Inspection
›
Reference Graph
Reference Graph
WARNING:
This page is about a different car, the 2004 Suzuki XL-7 and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

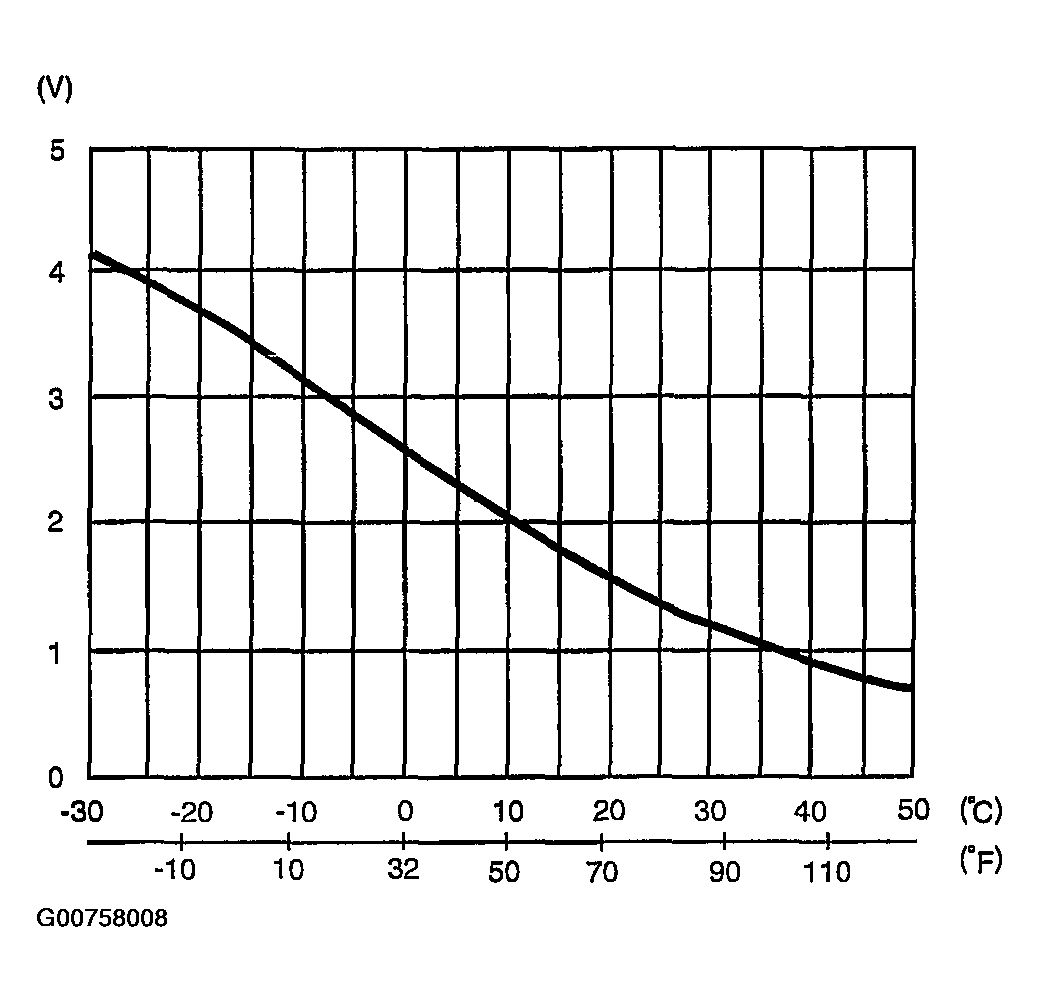

Fig 1: Reference Graph Chart
Courtesy of SUZUKI OF AMERICA CORP.
