P/S Pump Construction: Components

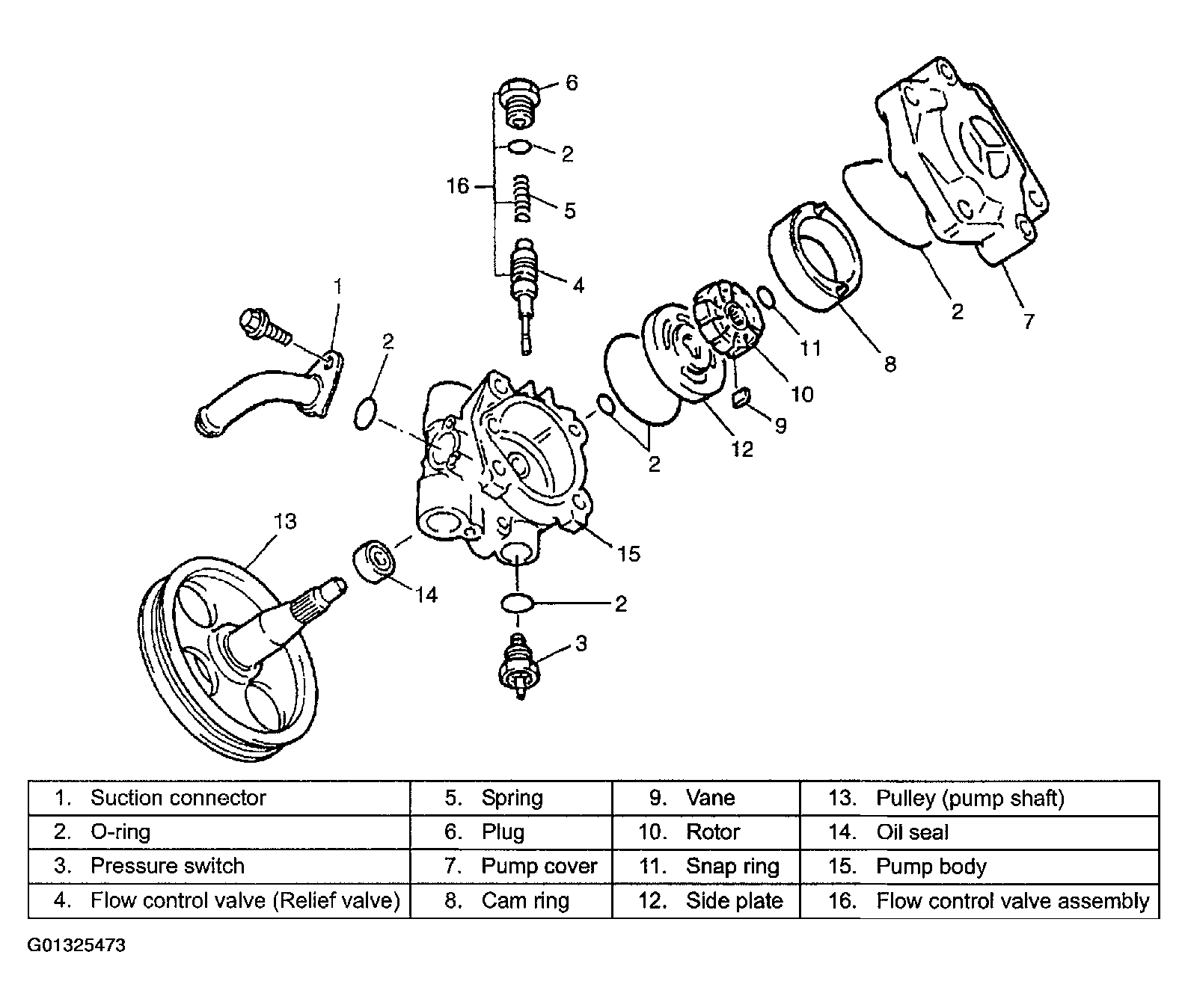

Fig 1: Identifying Power Steering Pump Construction
Courtesy of SUZUKI OF AMERICA CORP.
