P/S Pump Components

NOTE: Specified torque refer to P/S PUMP REMOVAL AND INSTALLATION . Tighten bolts and nuts to specified torque ((a), (e), (f), (h), (i), (j) and (k)).

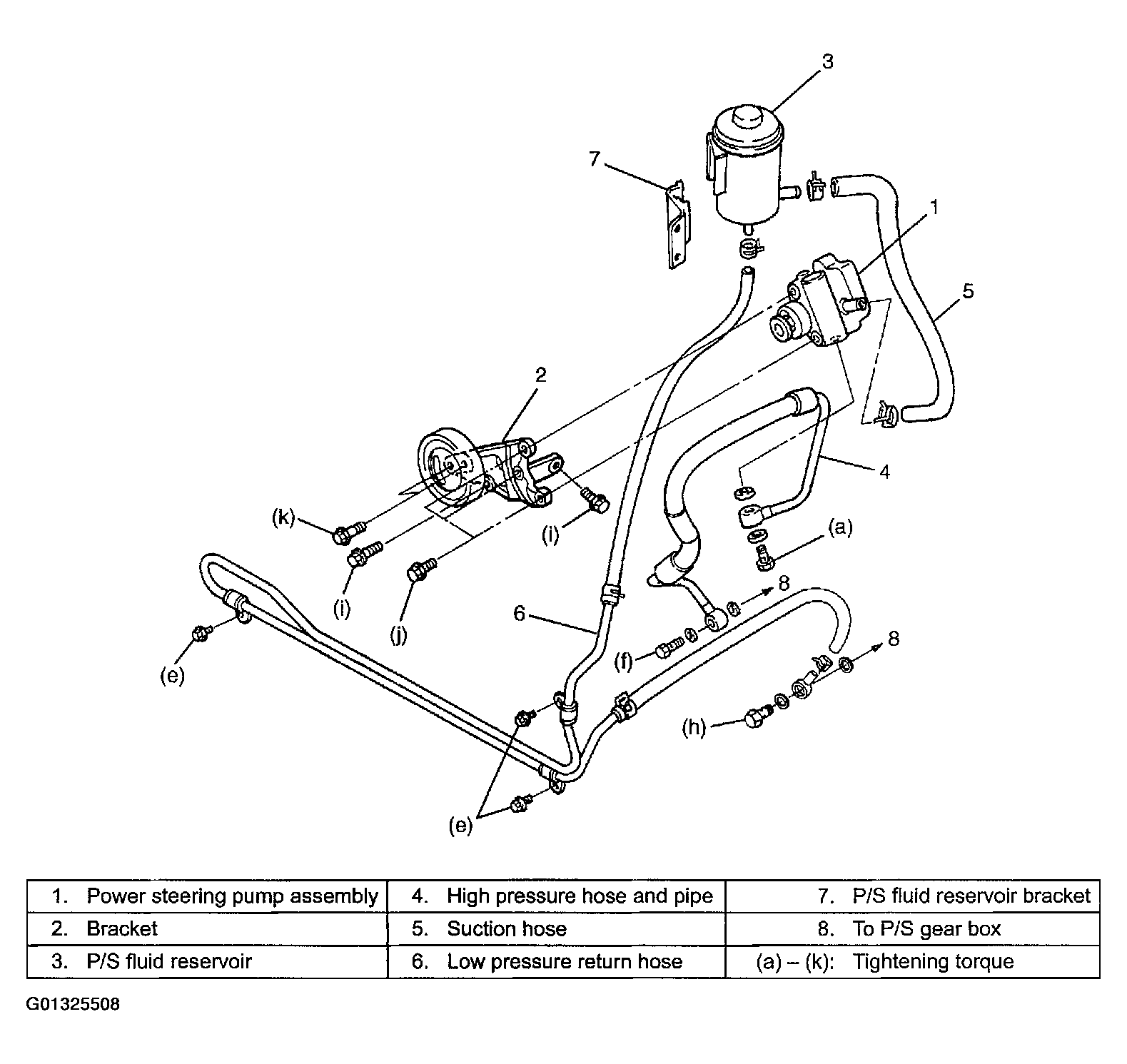

Fig 1: Identifying Power Steering Components

Courtesy of SUZUKI OF AMERICA CORP.
