Component Identification

For generator component identification, see

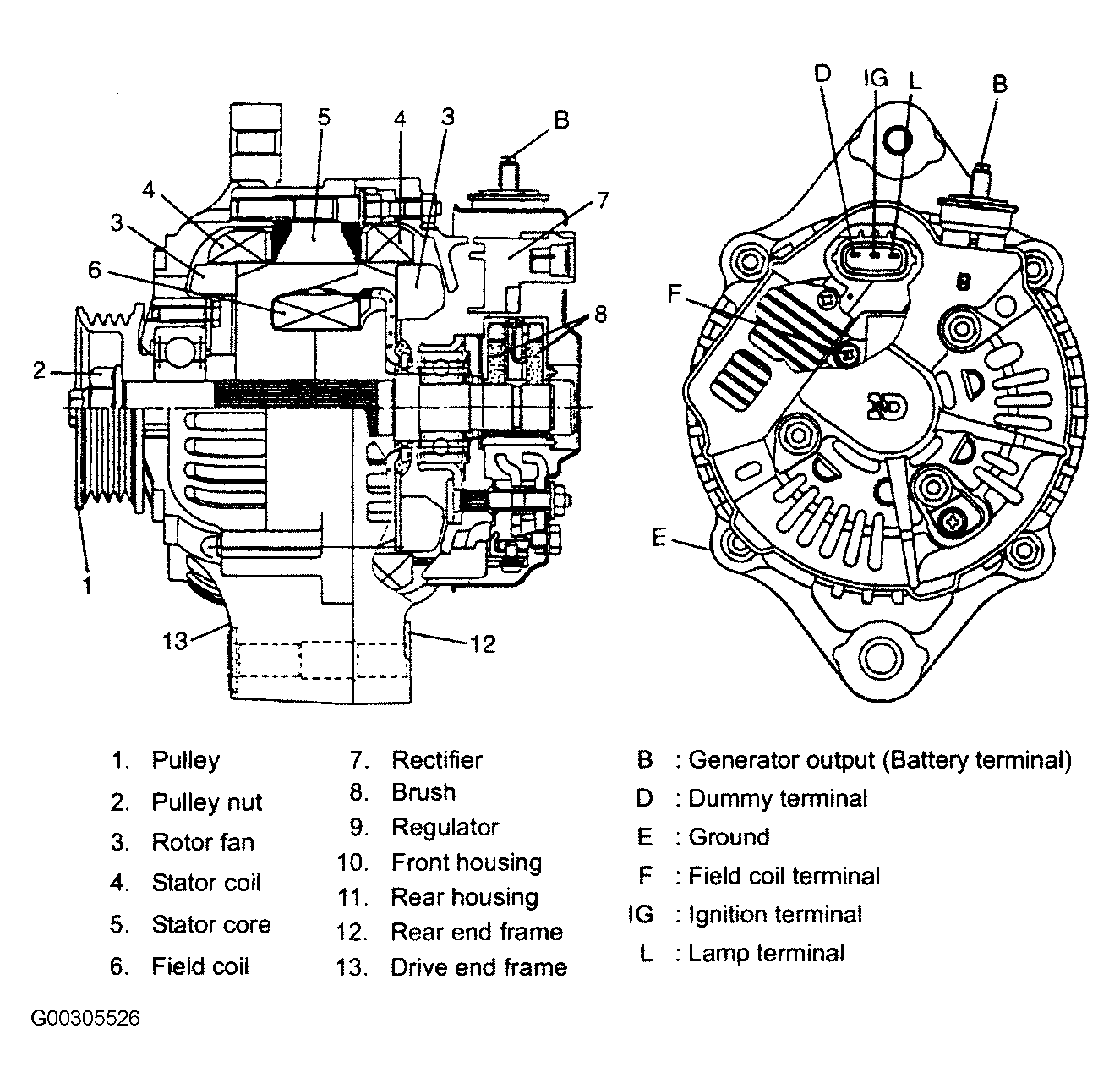

Fig 1: Identifying Generator Components
G00305526Courtesy of SUZUKI OF AMERICA CORP.
