Exhaust System Components

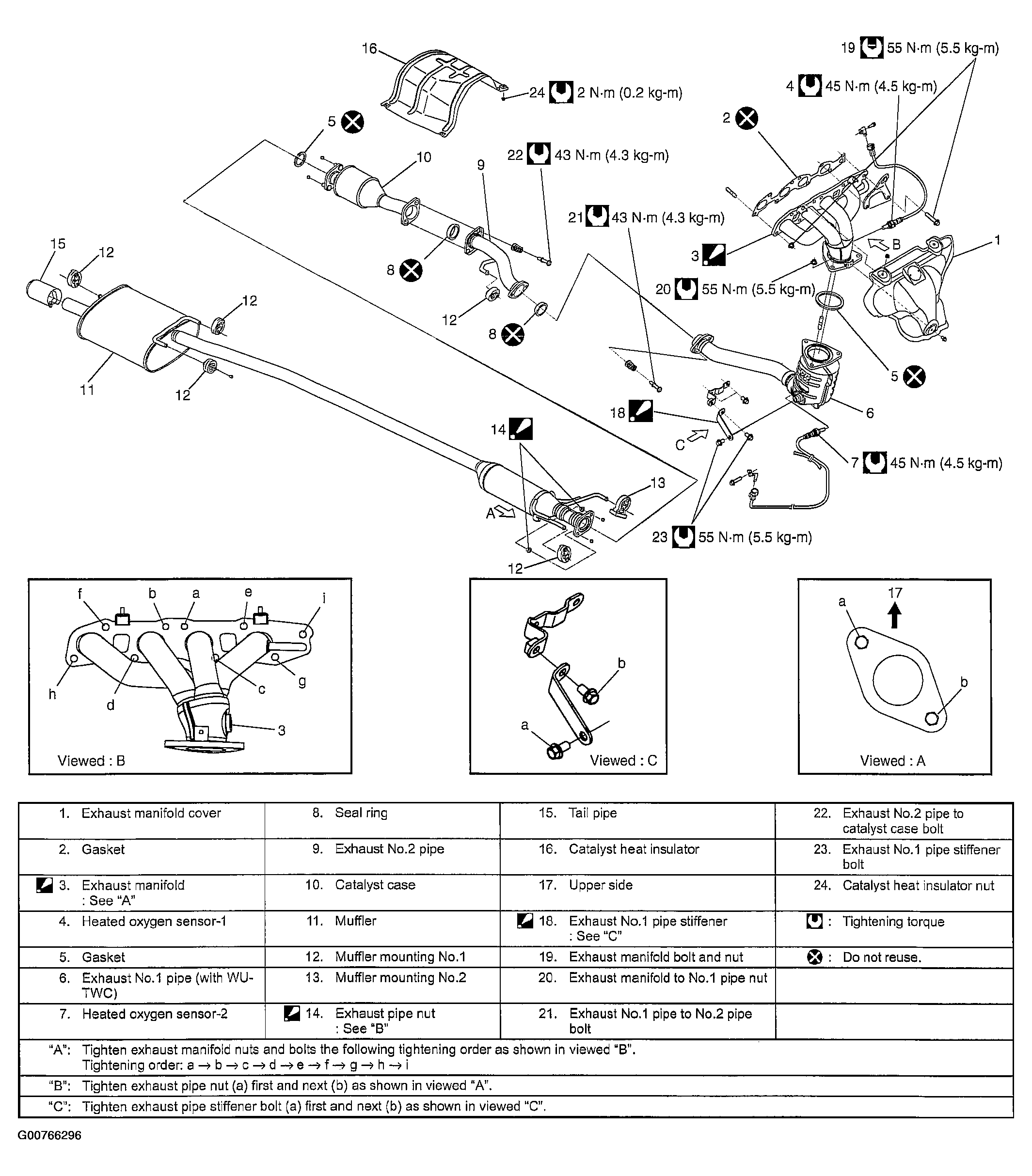

Fig 1: Exhaust System Components

Courtesy of SUZUKI OF AMERICA CORP.

WARNING: To avoid the danger of being burned, do not touch the exhaust system when the system is hot. Any service on the exhaust system should be performed when the system is cool.
