DTC P0420: Catalyst System Efficiency Below Threshold: Reference

Using waveform in illustration, compare to waveform taken when testing oxygen sensors. See Fig 1.

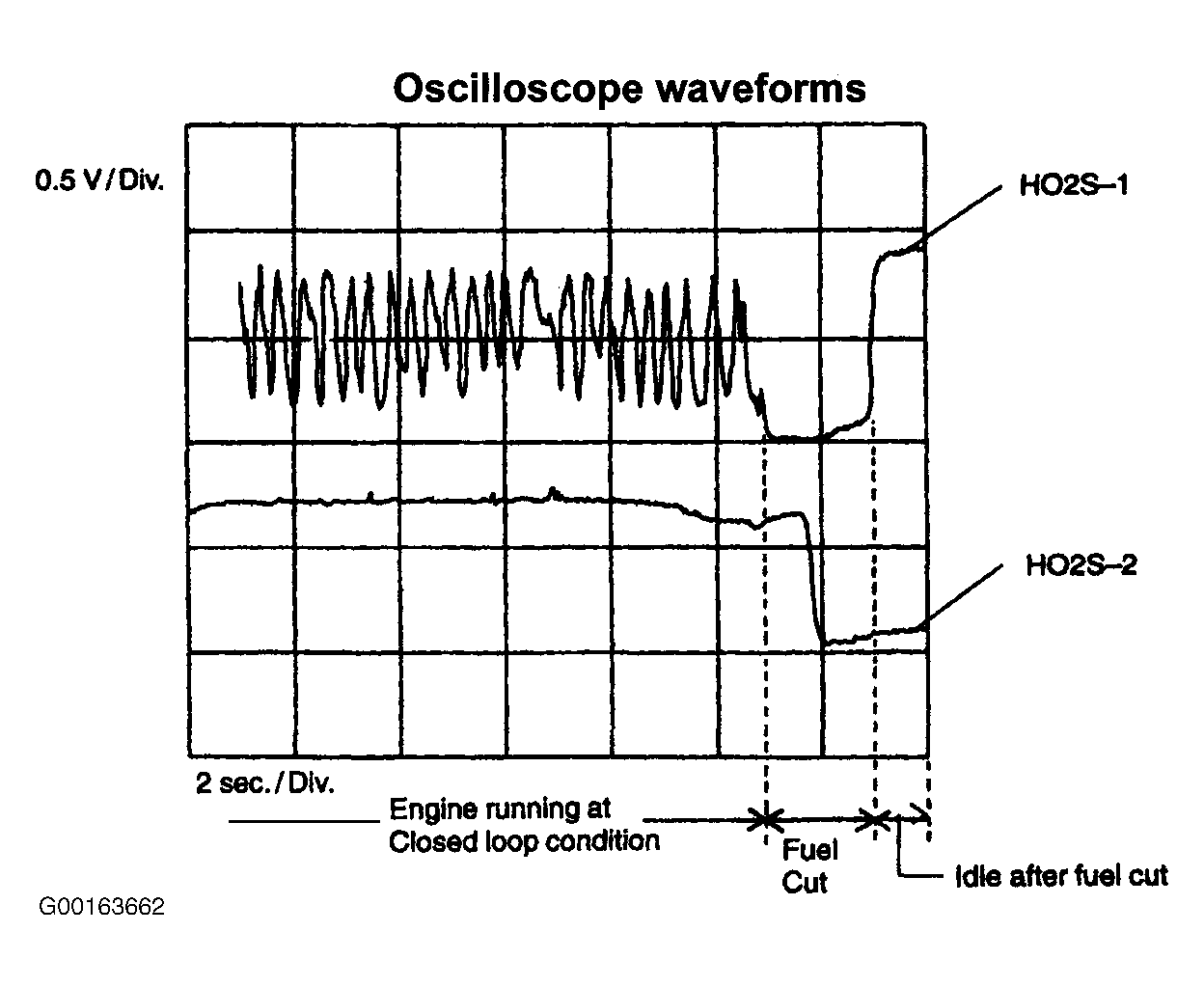

Fig 1: Identifying Heated Oxygen Sensor Waveforms

Courtesy of SUZUKI OF AMERICA CORP.
