FixVault
Home
›
Suzuki
›
2003
›
Aerio S, Automatic
›
Repair and Diagnosis
›
Steering
›
Power Steering
›
Power Assisted Steering System
›
Repair Instructions
›
P/S Pump Components
P/S Pump Components

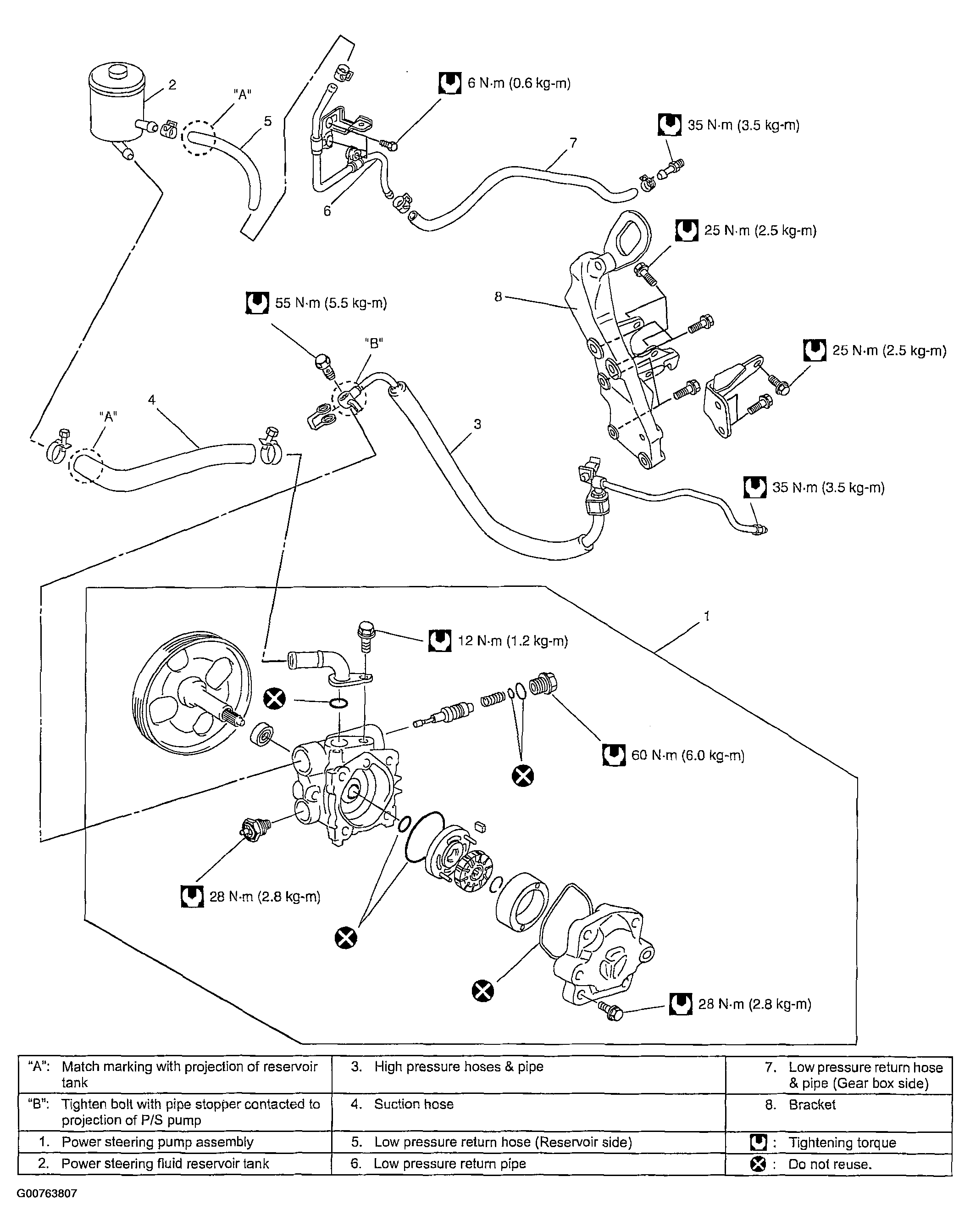

Fig 1: Identifying P/S Pump Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
