Suzuki
›
2003
›
Aerio S, Automatic
›
Repair and Diagnosis
›
Transmission
›
Automatic Trans
›
Overhaul - A/T
›
Repair Instructions
›
Automatic Transaxle Unit Components
Automatic Transaxle Unit Components

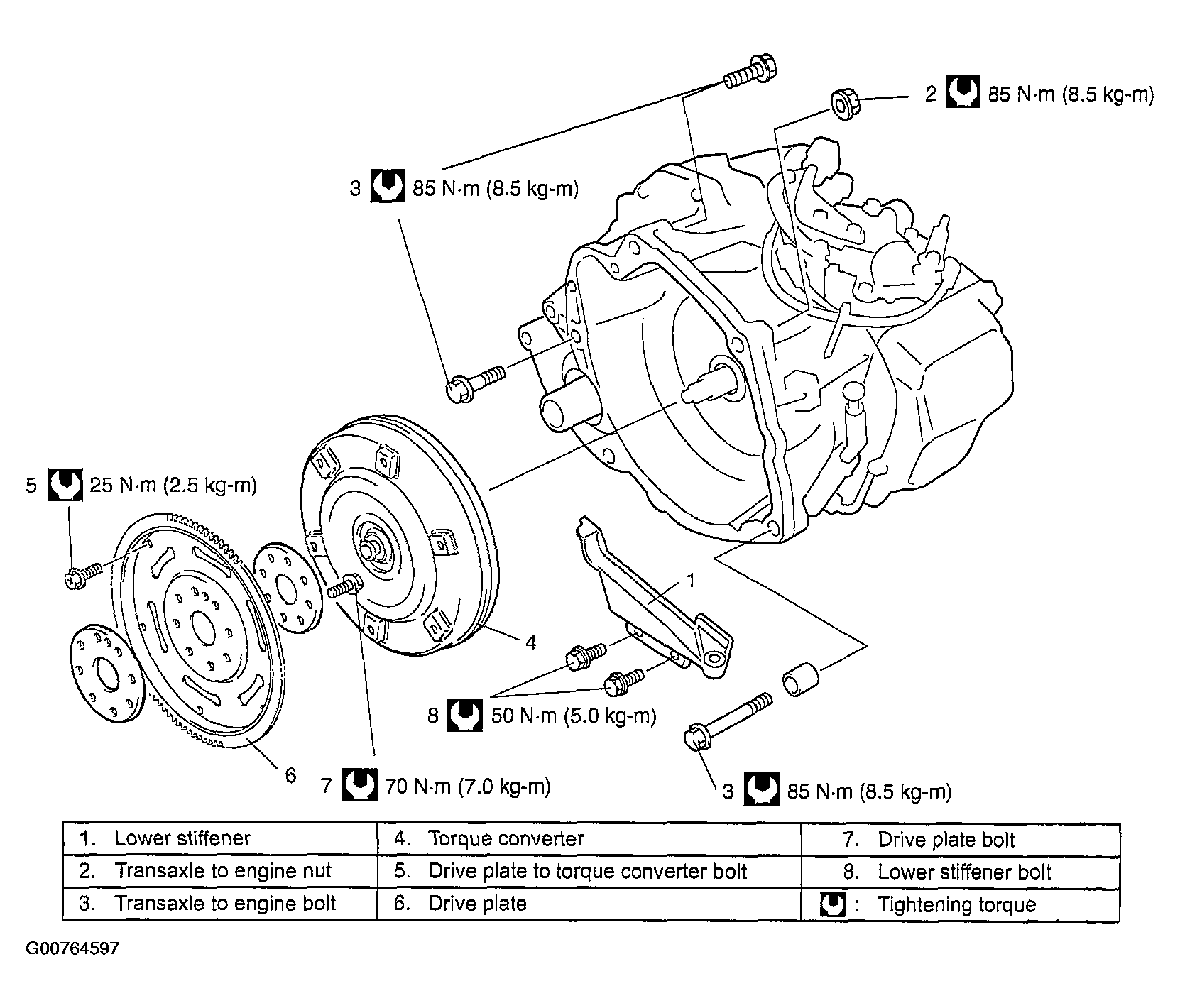

Fig 1: Identifying Automatic Transaxle Unit Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
