Tightening Torque Specifications

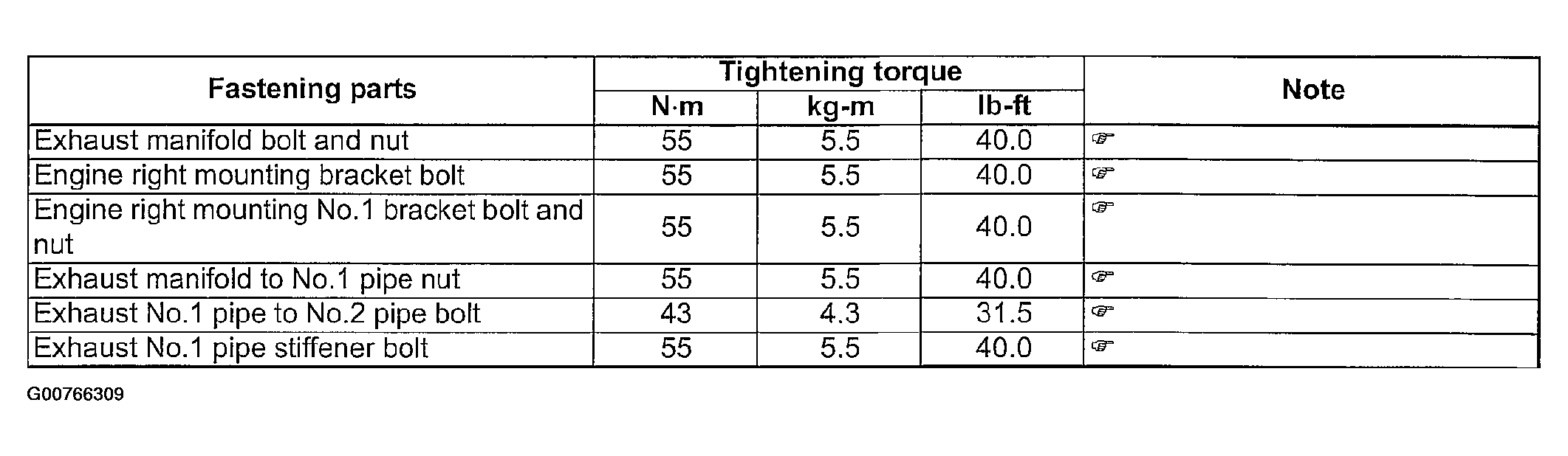

Fig 1: Tightening Torque Specifications

Courtesy of SUZUKI OF AMERICA CORP.

NOTE:

1. The specified tightening torque is described in the following.

• Exhaust System Components
