P/S Gear Box Components

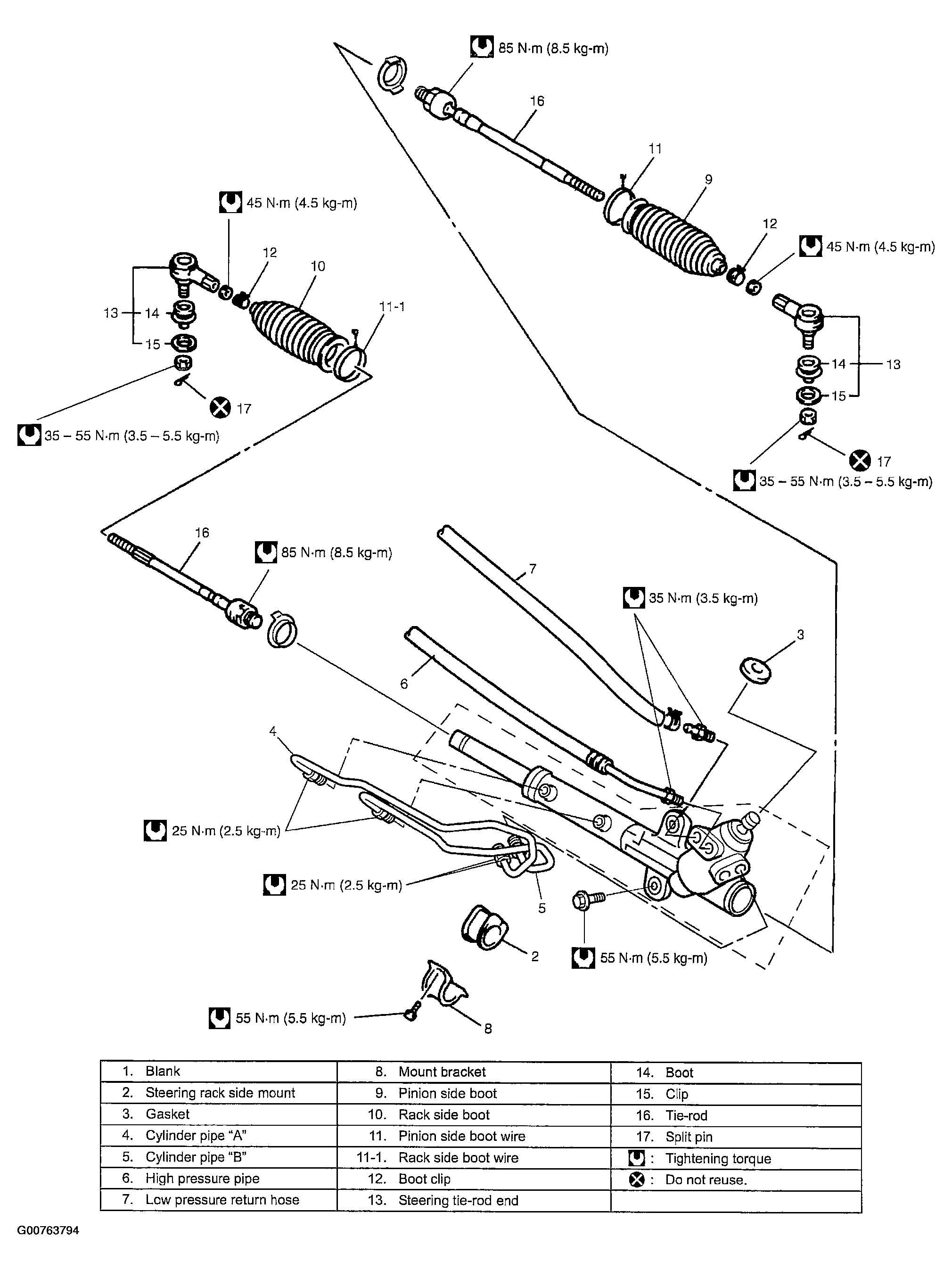

Fig 1: Identifying P/S Gear Box Components
G00763794Courtesy of SUZUKI OF AMERICA CORP.
NOTE: Component enclosed in broken line cannot be disassembled and adjusted.
