Tightening Torque Specifications

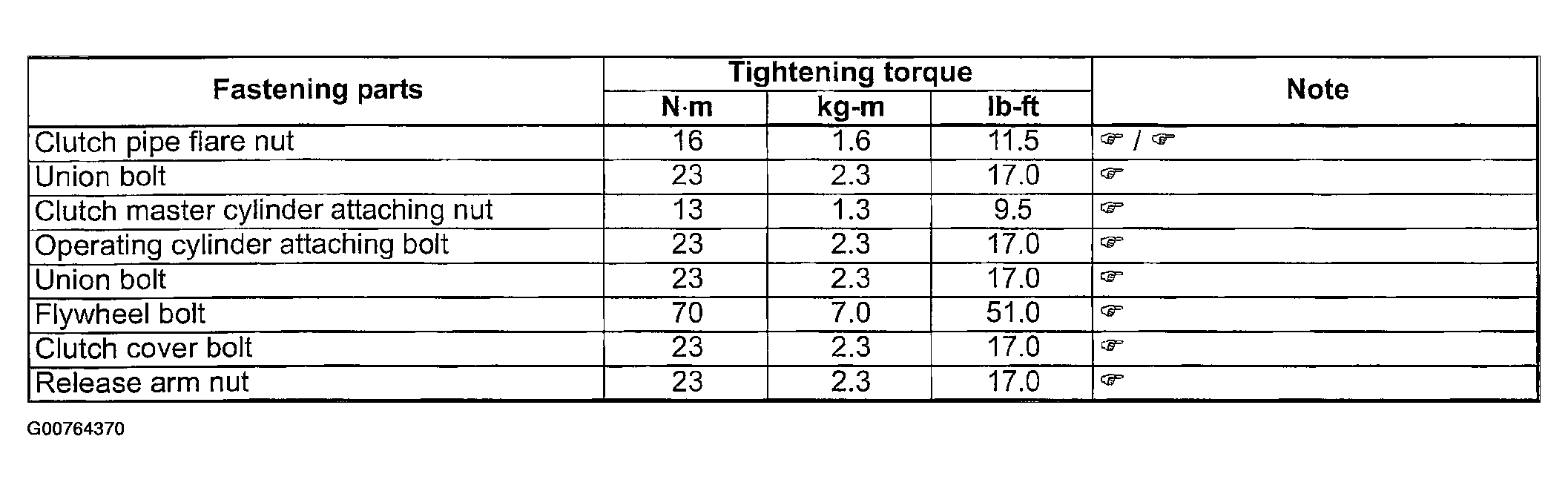

Fig 1: Tightening Torque Specifications

Courtesy of SUZUKI OF AMERICA CORP.

NOTE: The specified tightening torque is described in the following.

• Clutch Fluid Pipe and Hose Components
• Clutch Operating Cylinder Components
• Clutch Cover, Clutch Disc, Flywheel and Clutch Release System Components
