Tightening Torque Specifications

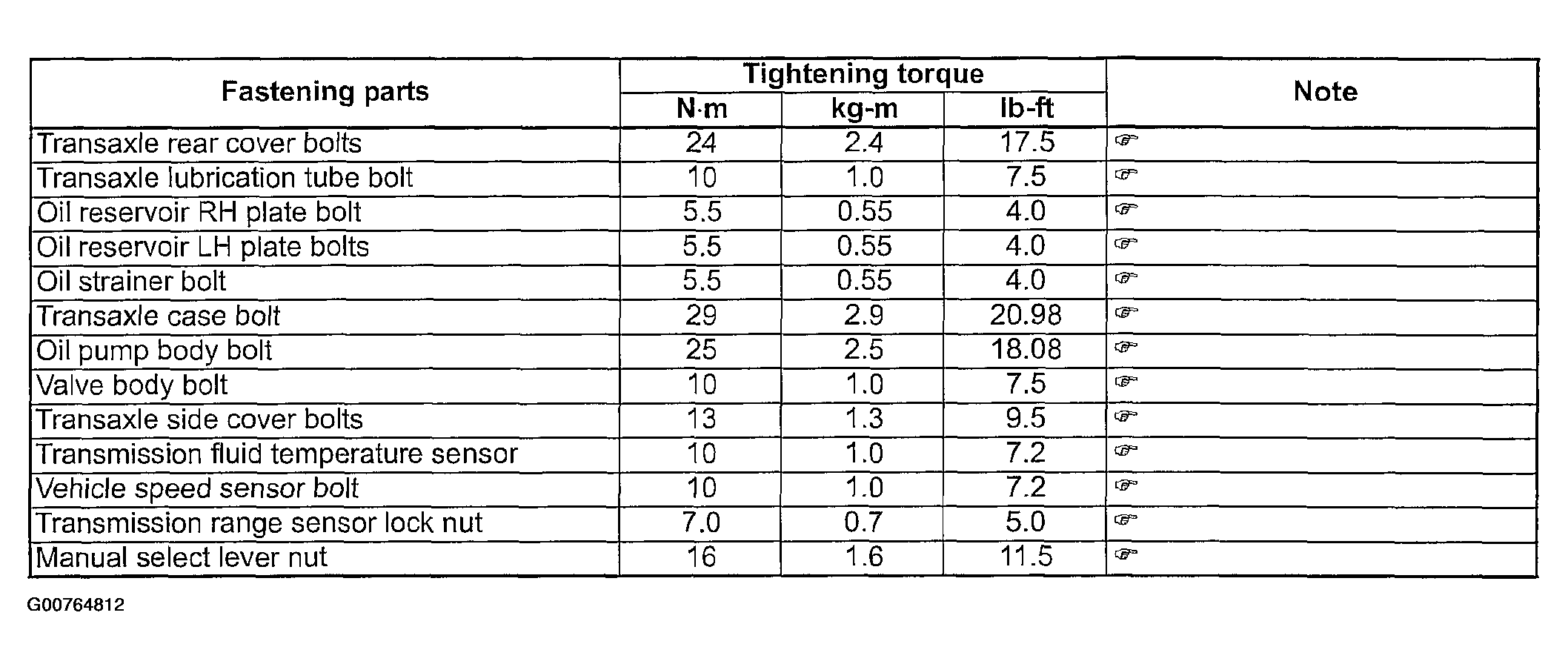

Fig 1: Tightening Torque Specifications (1 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

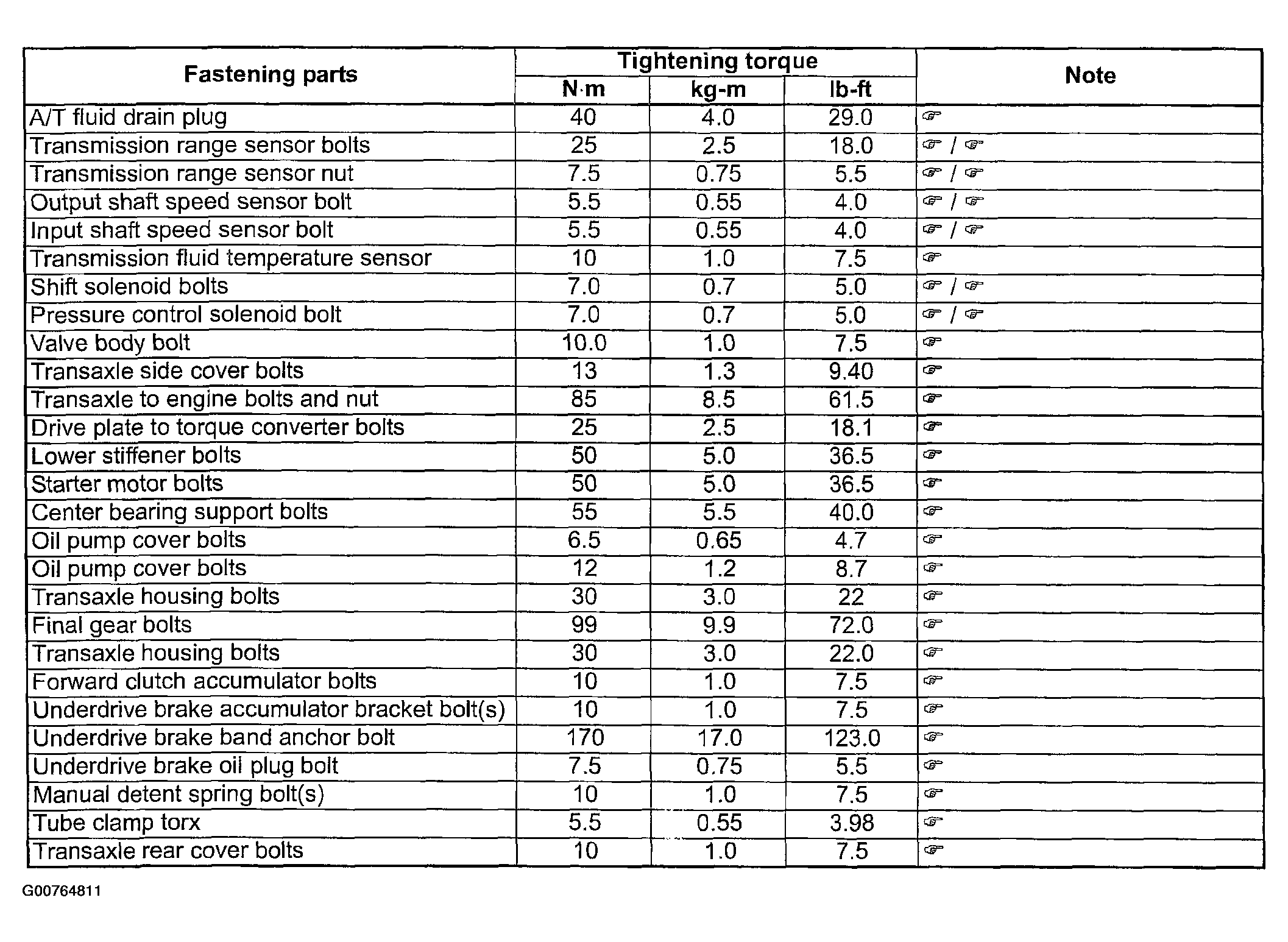

Fig 2: Tightening Torque Specifications (2 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

NOTE: The specified tightening torque is also described in the following.

• Select Cable Components
• Automatic Transaxle Unit Components
• Automatic Transaxle Assembly Components
• Valve Body Assembly Components
• Differential Components
• Transaxle Rear Cover Components
