Engine Controls - Self-Diagnostics
›
Component Locations
Component Locations

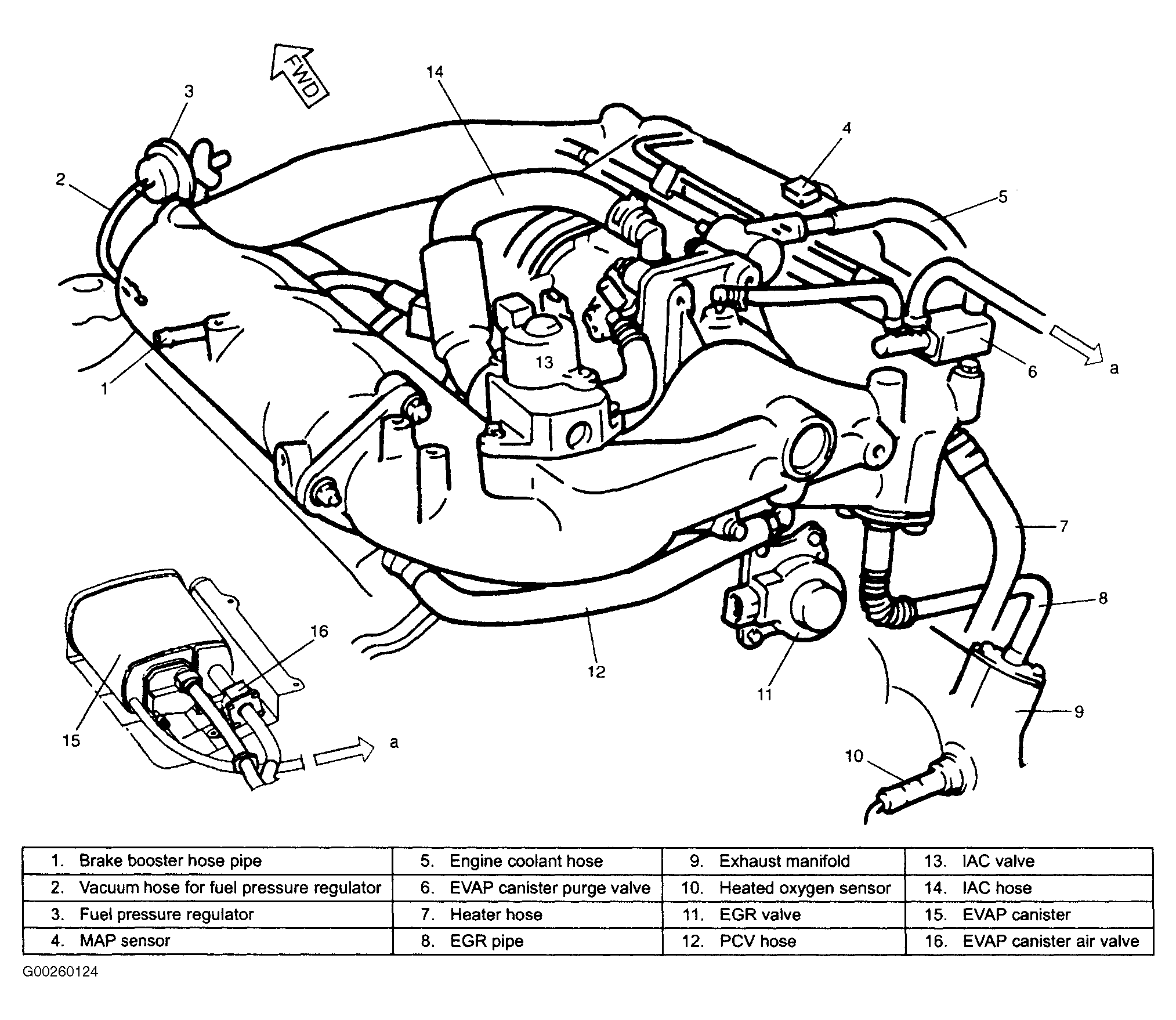

Fig 1: Locating Engine Control System Components
Courtesy of SUZUKI OF AMERICA CORP.
Fig 2: Locating Engine & Emission Control System Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
