Connector Identification

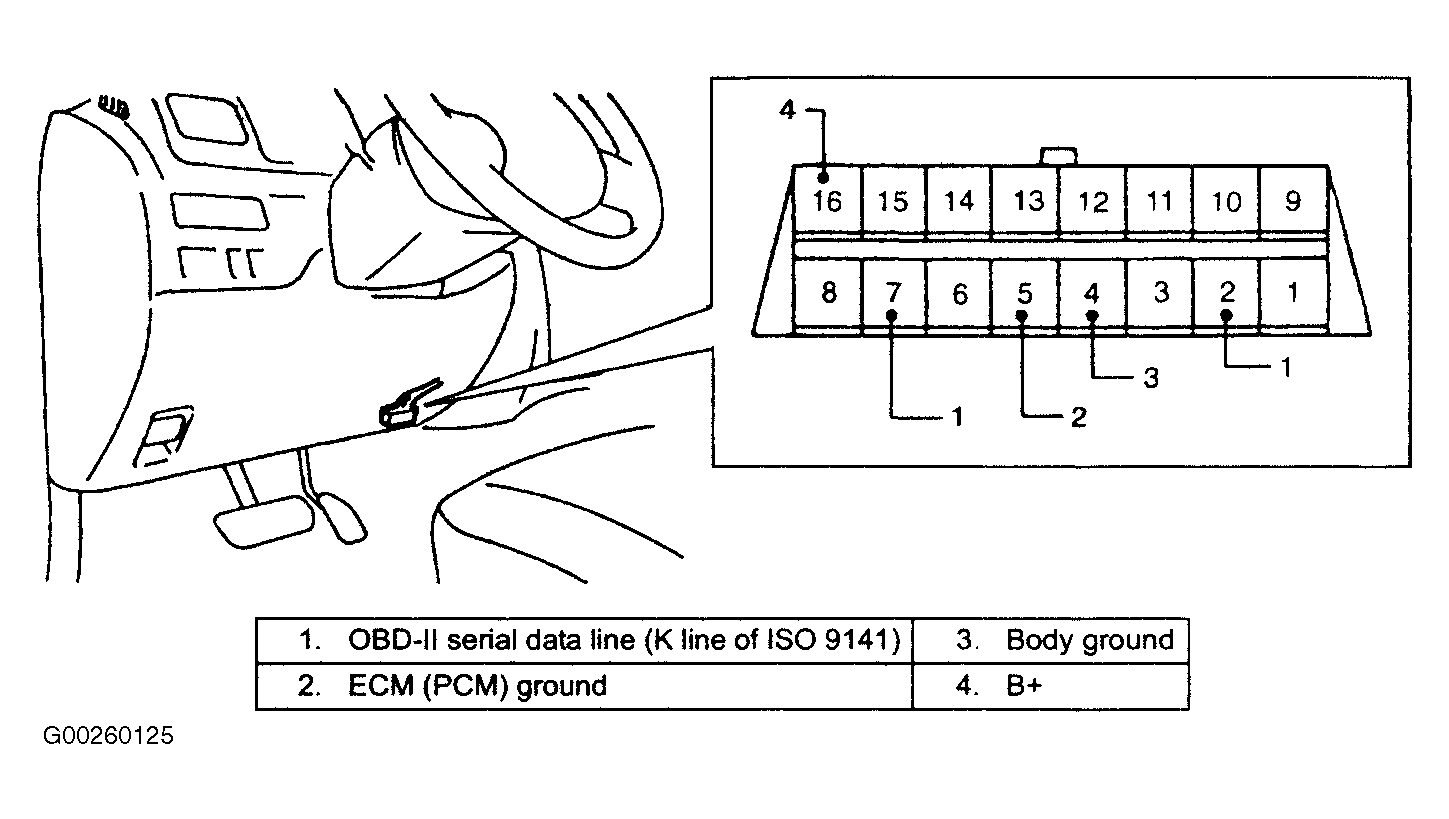

Fig 1: Identifying DLC Terminals

Courtesy of SUZUKI OF AMERICA CORP.

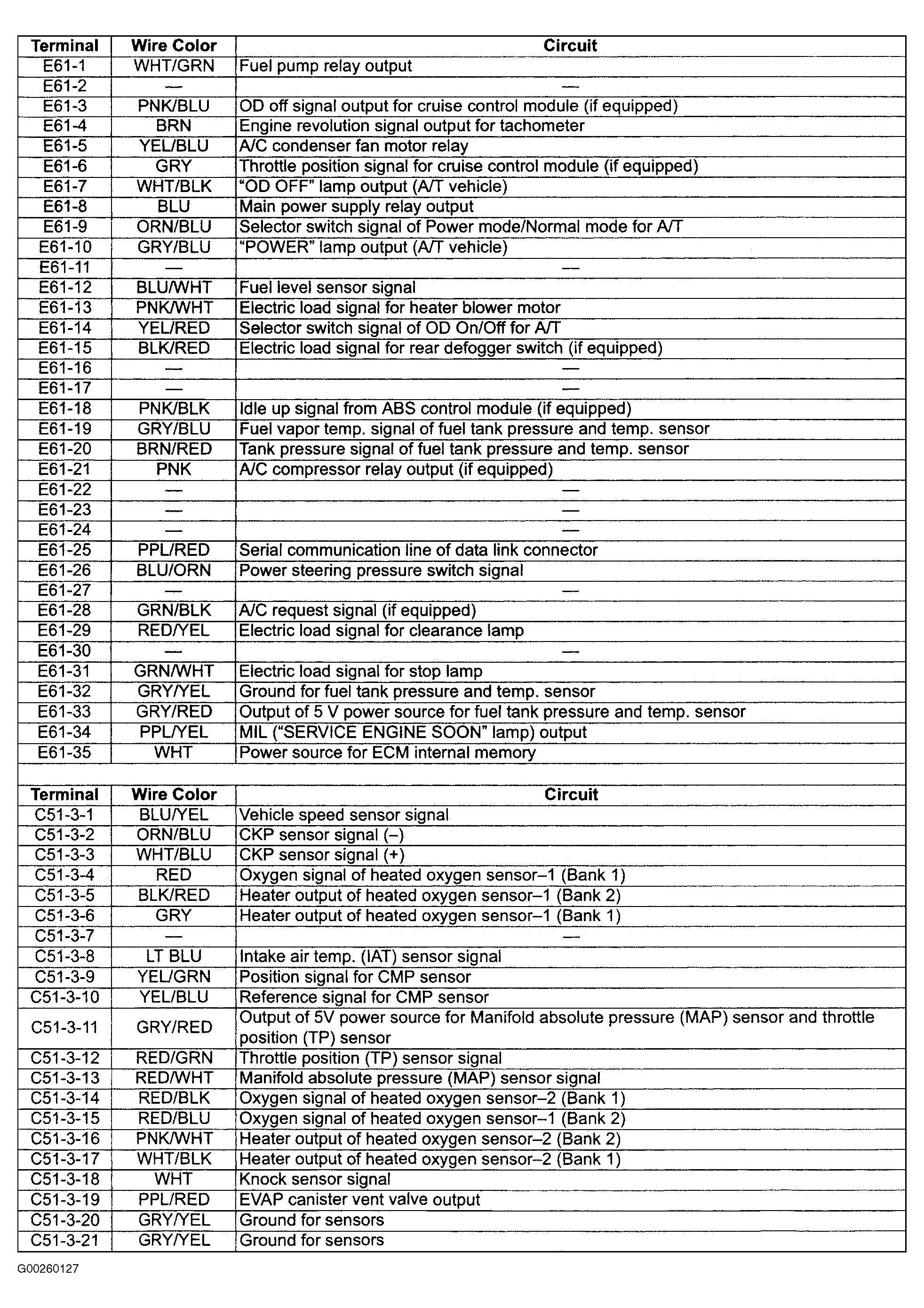

Fig 2: Identifying ECM Connector Terminals (1 Of 3)

Courtesy of SUZUKI OF AMERICA CORP.

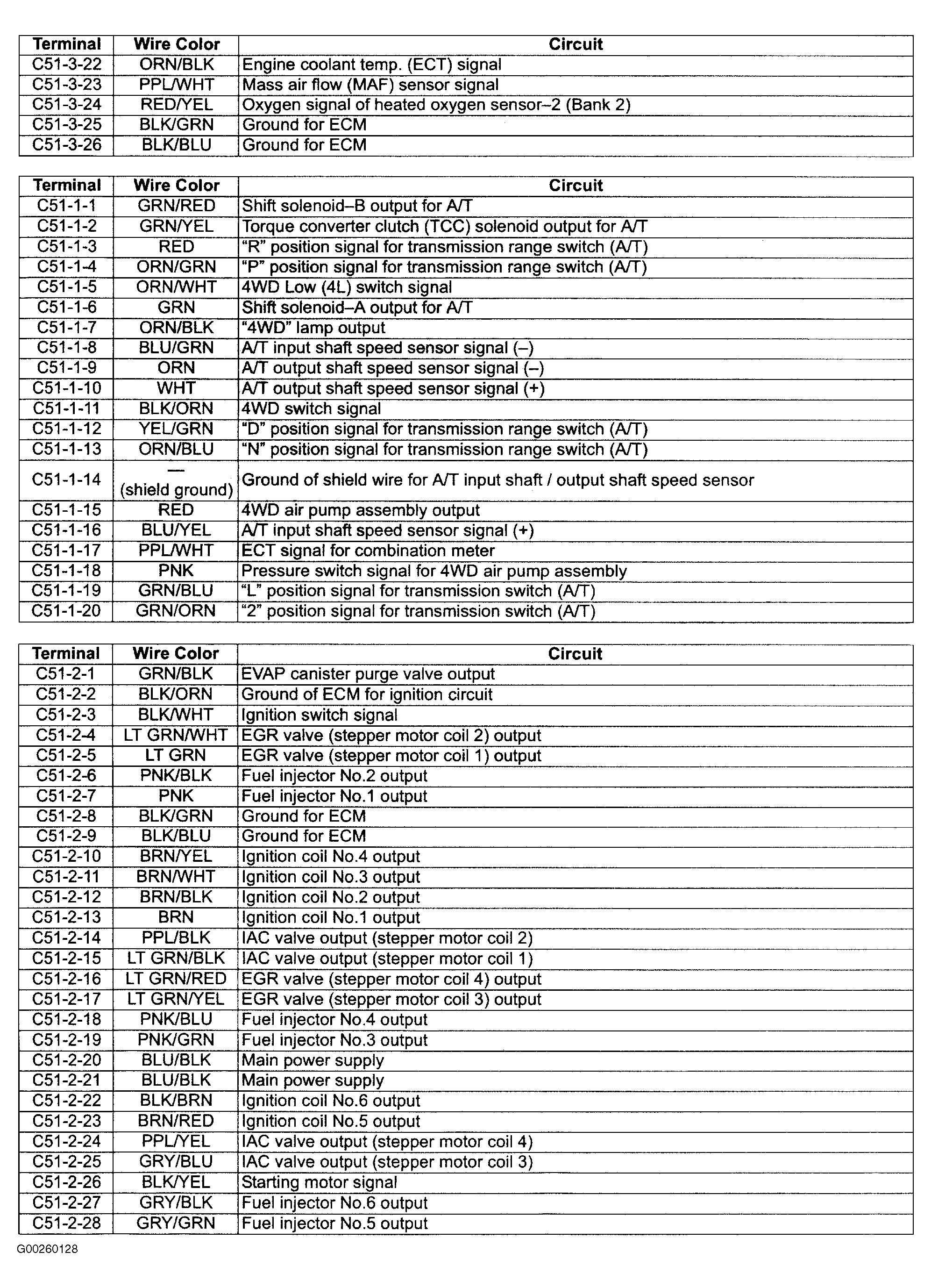

Fig 3: Identifying ECM Connector Terminals (2 Of 3)

Courtesy of SUZUKI OF AMERICA CORP.

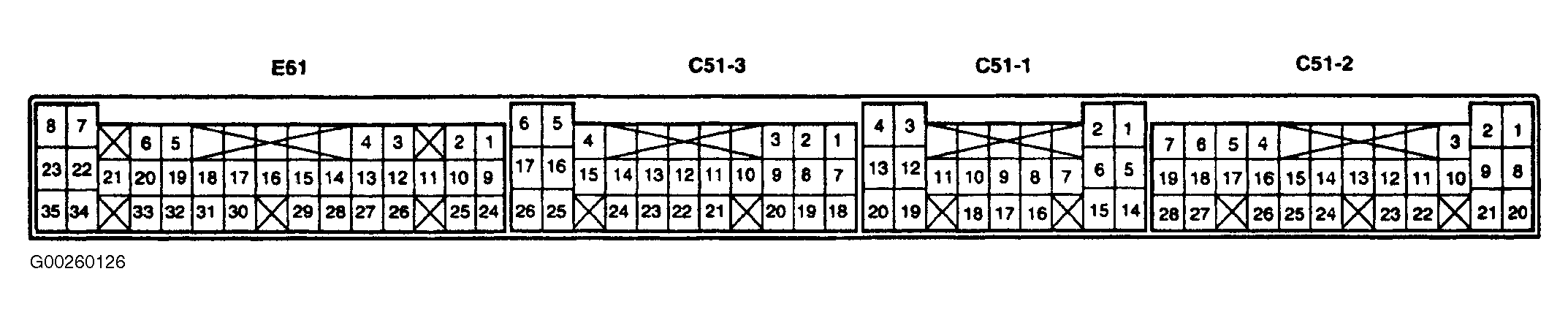

Fig 4: Identifying ECM Connector Terminals (3 Of 3)

Courtesy of SUZUKI OF AMERICA CORP.
