Diagnostic Procedures

For diagnosis and repair, see Fig 1 .

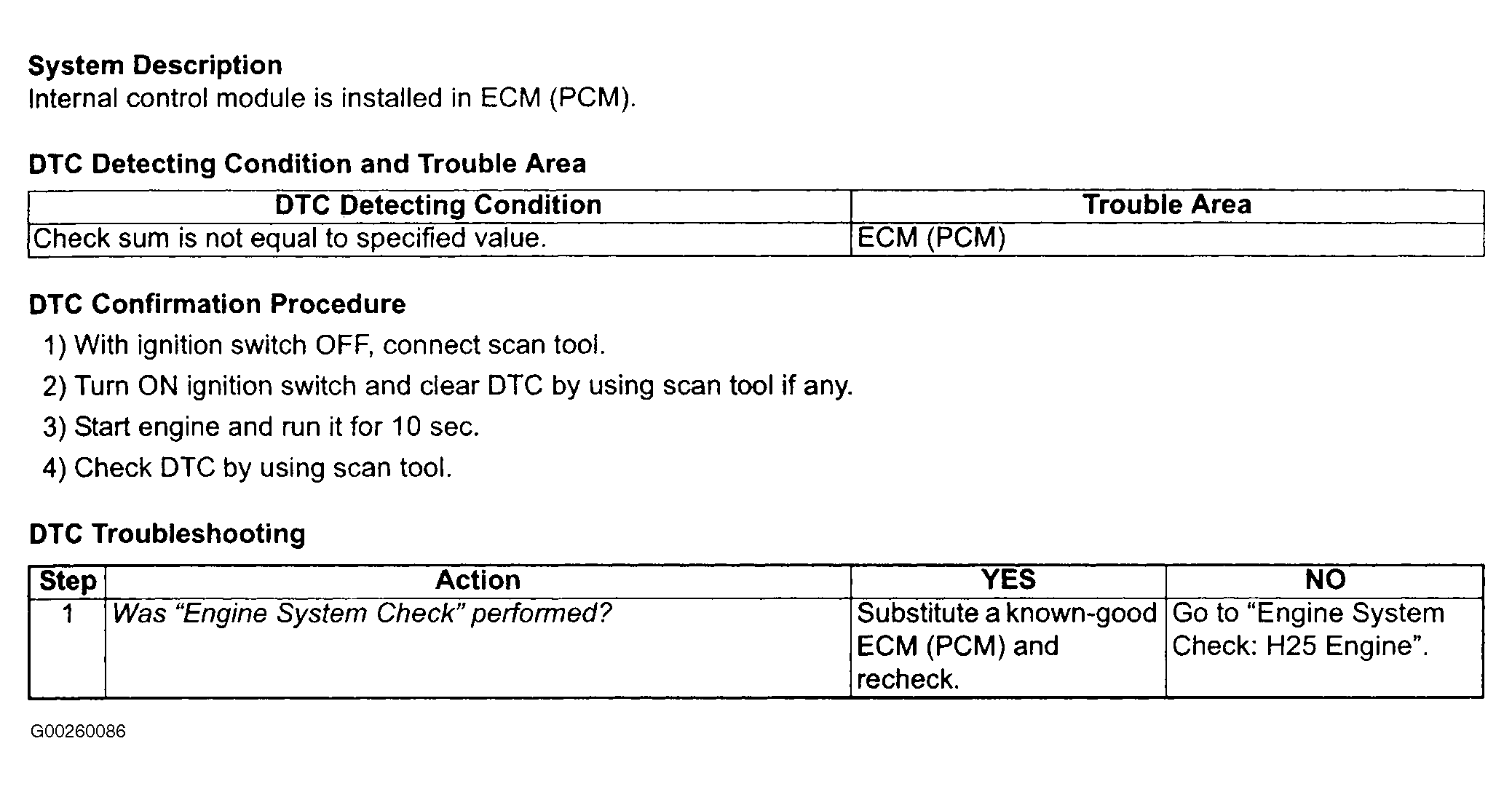

Fig 1: DTC P0601 Diagnostic Procedure

G00260086

Courtesy of SUZUKI OF AMERICA CORP.
