General Description
›
4WD Control System Components and Functions
4WD Control System Components and Functions

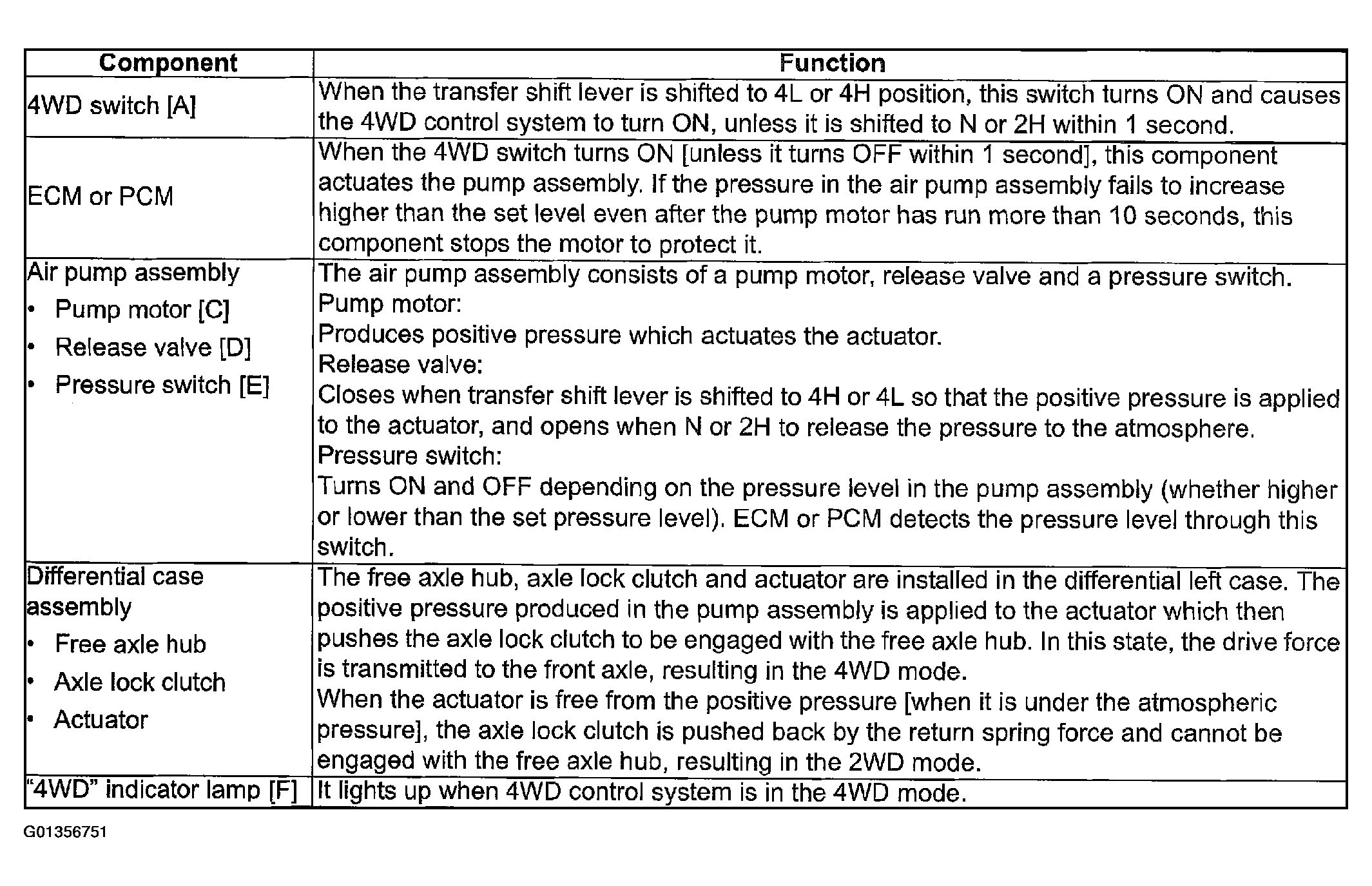

Fig 1: 4WD Control System Components & Functions Chart (1 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.

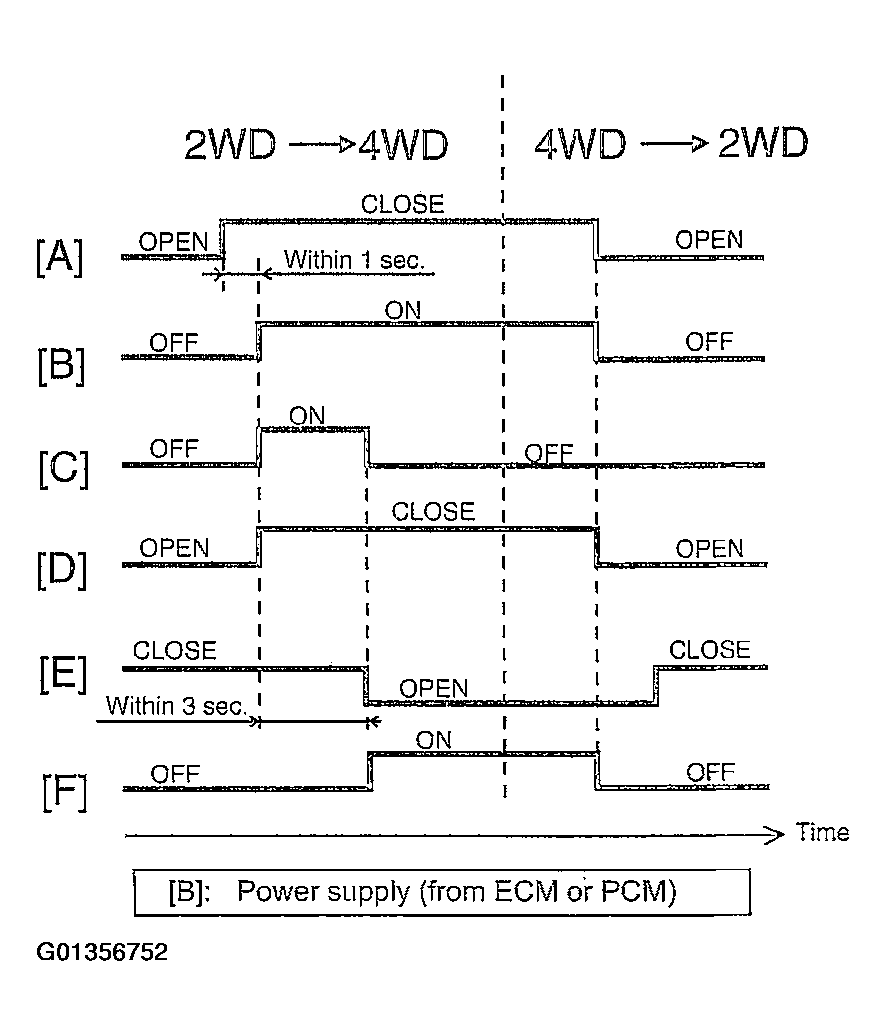

Fig 2: 4WD Control System Components & Functions Chart (2 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
