FixVault
Home
›
Suzuki
›
2003
›
Vitara 2D Utility, RWD, Automatic
›
Repair and Diagnosis
›
Brakes
›
Traction Control
›
Anti-Lock Braking System
›
Components Location
›
Anti-Lock Brake System Components Location
Anti-Lock Brake System Components Location

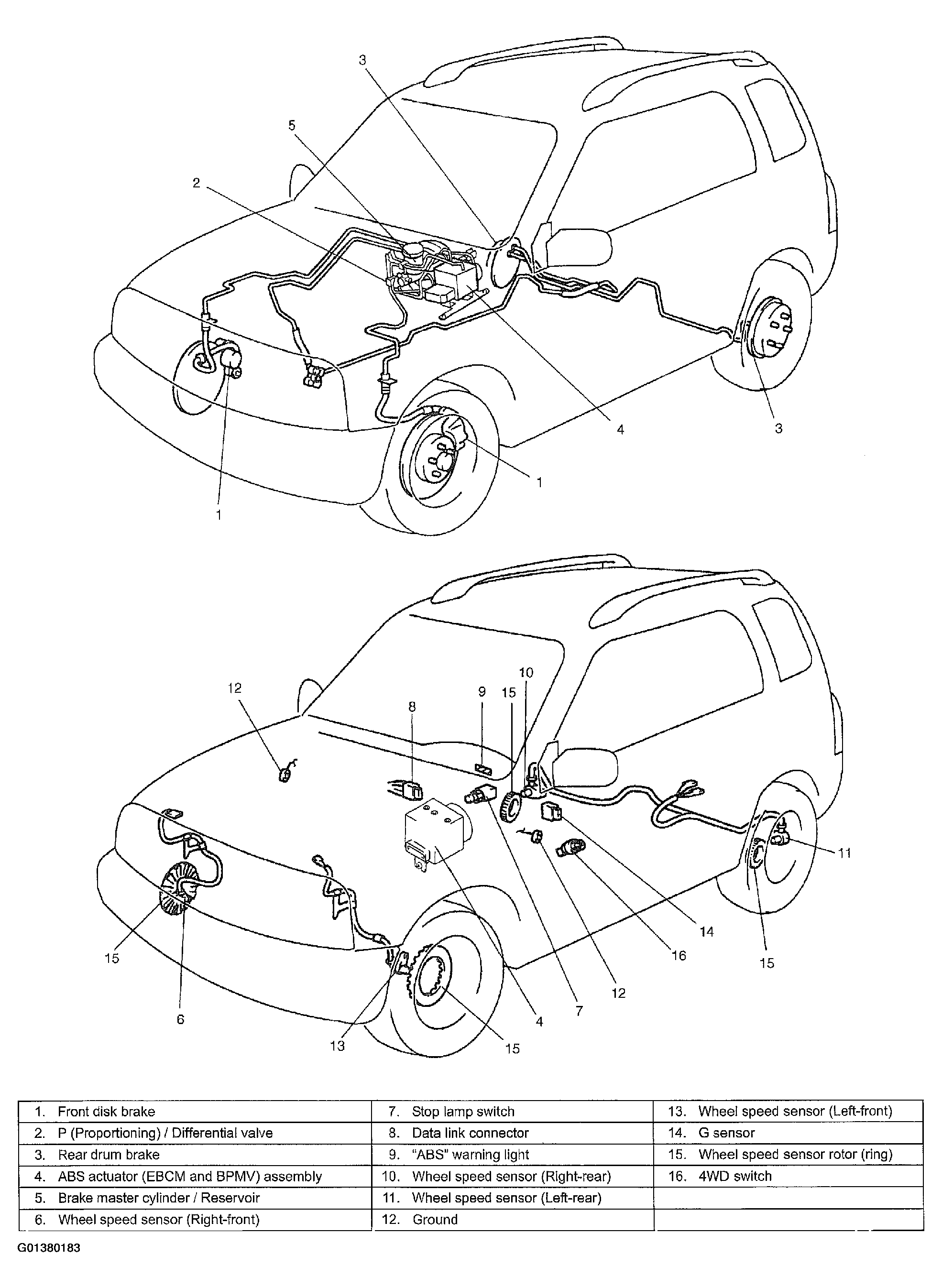

Fig 1: Identifying Anti-lock Brake System Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
