Abs Check: Notes

Refer to the following items for the details of each step.

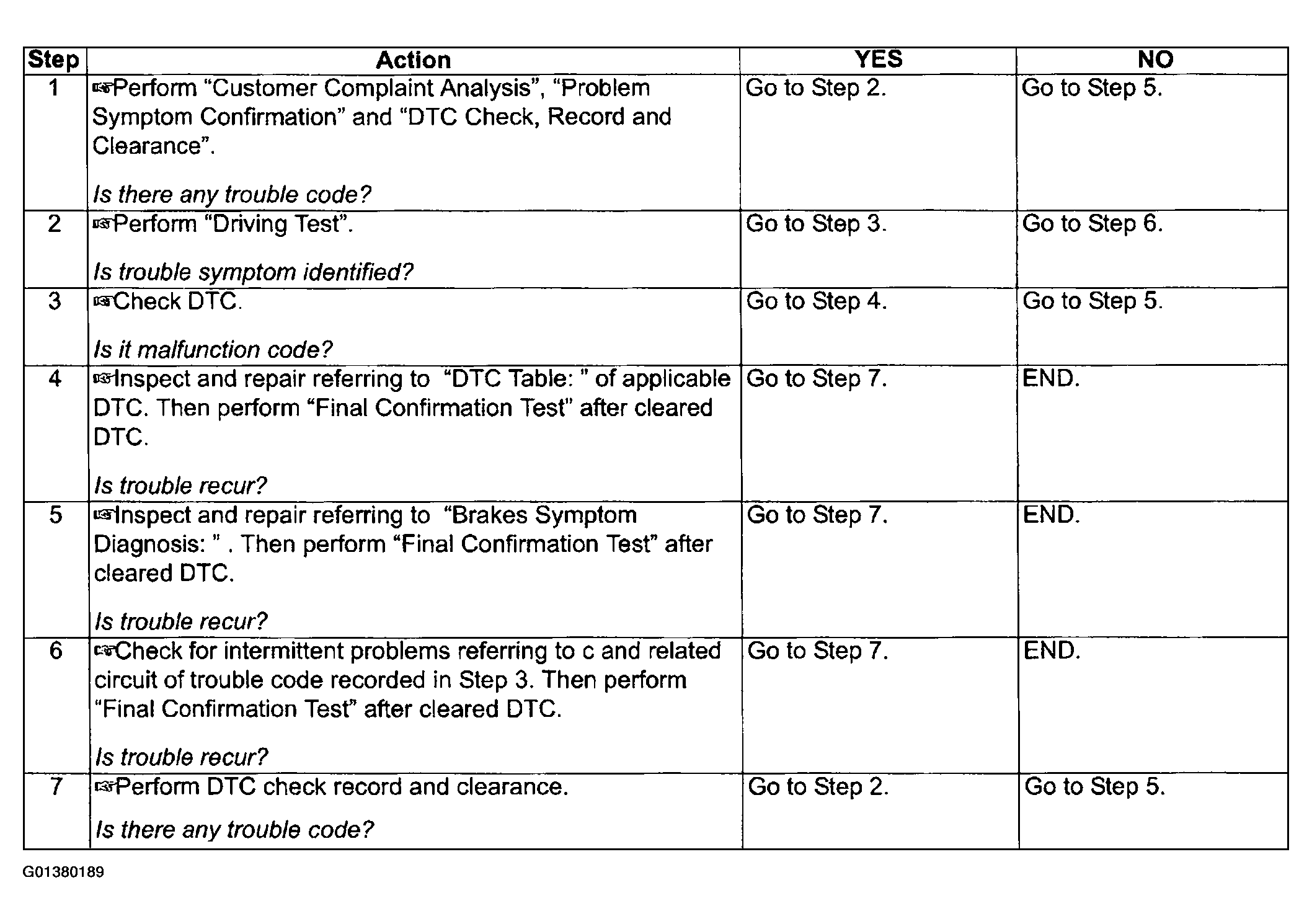

Fig 1: ABS Check Troubleshooting Chart
G01380189Courtesy of SUZUKI OF AMERICA CORP.
