G Sensor Specification

When placed horizontally [A]: 2 - 3 V
When placed upright with arrow upward [B]: 3 - 4 V
When placed upright with arrow downward [C]: 1 - 2 V

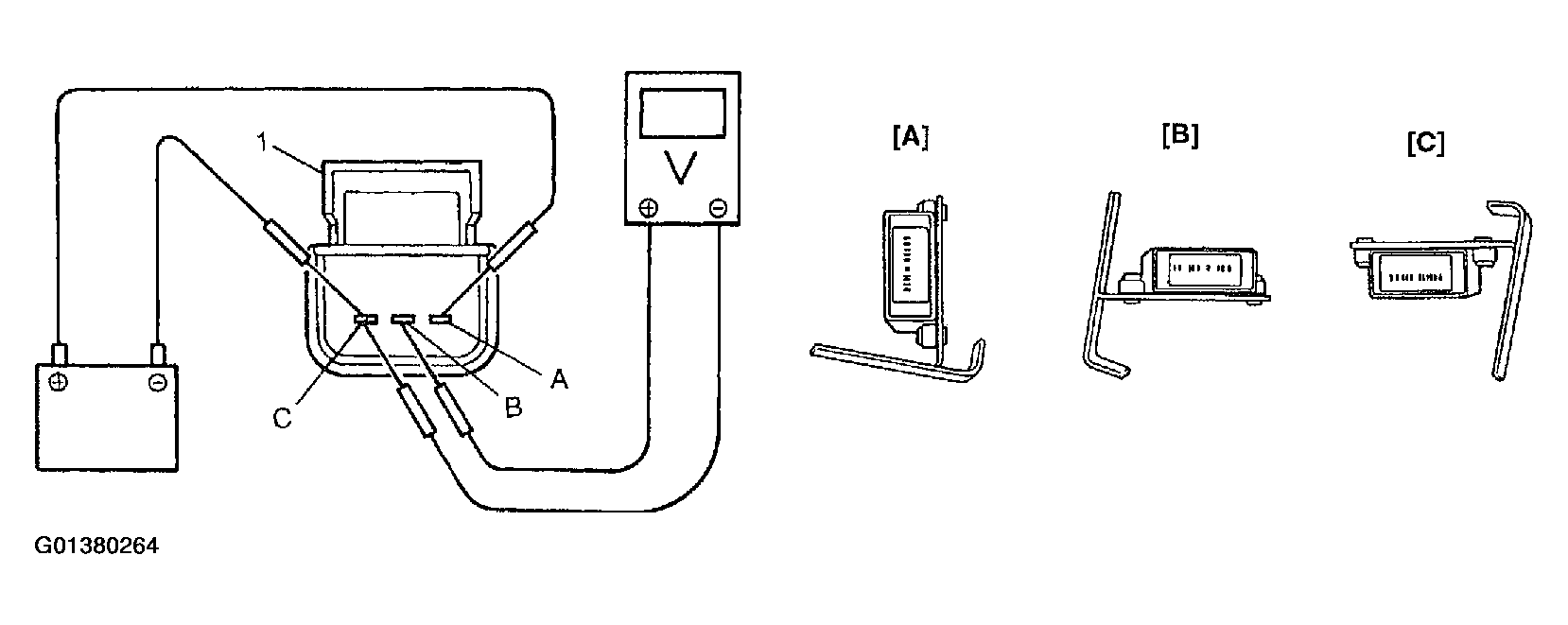

Fig 1: Checking Voltage Between Terminals
Courtesy of SUZUKI OF AMERICA CORP.
